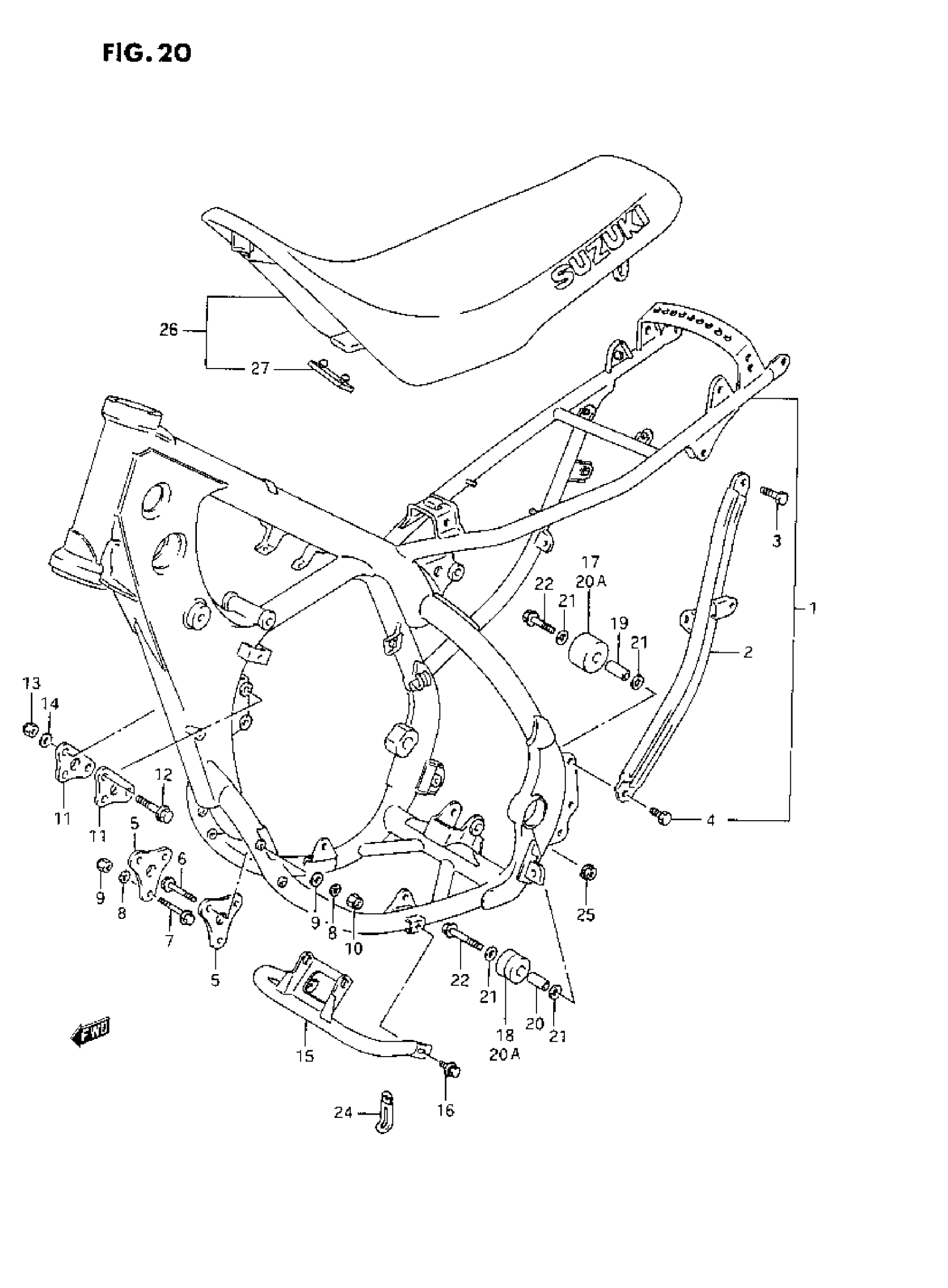

Suzuki RMX250 (1993) FRAME-SEAT (K/L/M/N) Diagram

#

Description
Price

1

FRAME SET (BLUE) | MODEL K

41100-05860-19F

Unavailable

1

FRAME SET (BLUE) | MODEL L

41100-05870-19F

Unavailable

1

FRAME SET (BLUE) | MODEL M

41100-05880-19F

Unavailable

1

FRAME SET (BLUE) | MODEL N

41100-05890-19F

Unavailable

2

TUBE, FRAME SIDE | MODEL K/L/M This part replaces 41670-27C10.

41670-43D00

Unavailable

2

TUBE, FRAME SIDE | MODEL N

41670-43D00

Unavailable

3

BOLT, UPPER | MODEL K/L/M

09100-08274

$3.78

3

BOLT | MODEL N This part replaces 01107-08258.

01500-08257

$2.50

4

BOLT, LOWER | MODEL K/L

09100-08284

$3.87

4

BOLT (8X16) | MODEL M This part replaces 09100-08267.

09100-08284

$3.87

4

PLUG, DRAIN | MODEL N This part replaces 01107-08167.

01500-0816B

$2.50

5

PLATE, ENGINE MOUNT FRONT

41991-28C00

Unavailable

6

.BOLT (8X55) This part replaces 09103-08027.

09103-08339

$3.49

7

BOLT, FRONT LOWER RH

09103-08265

Unavailable

8

.LOCK WASHER | MODEL K/L This part replaces 08321-21088.

08321-01087

$2.13

9

WASHER | MODEL K/L This part replaces 08322-11088.

08322-01087

$2.13

10

NUT | MODEL K/L This part replaces 08319-21088.

08319-2108A

$2.12

10

NUT | MODEL M/N

09159-08034

$1.62

11

PLATE, ENGINE MOUNTING UPPER

41993-28C00

Unavailable

12

BOLT, LH | MODEL K/L This part replaces 01517-08508.

01550-08507

$3.55

12

BOLT | MODEL M/N

09103-08043

$3.18

13

NUT | MODEL K/L This part replaces 08319-21088.

08319-2108A

$2.12

13

NUT | MODEL M/N

09159-08034

$1.62

14

WASHER | MODEL K/L This part replaces 08322-11088.

08322-01087

$2.13

15

NO DESCRIPTION AVAILABLE | MODEL K This part replaces 42510-05D00-19F.

42510-05D40-19F

Unavailable

15

NO DESCRIPTION AVAILABLE | MODEL L/M This part replaces 42510-05D10-19F.

42510-05D40-19F

Unavailable

15

NO DESCRIPTION AVAILABLE | MODEL N This part replaces 42510-05D30-19F.

42510-05D40-19F

Unavailable

16

BOLT | MODEL K/L/M

01177-06127

Unavailable

16

BOLT | MODEL N

09103-08253

$3.10

17

ROLLER, CHAIN CONTROL UPPER | MODEL K

43911-01B10

$16.63

18

ROLLER, CHAIN CONTROL LOWER | MODEL K

43911-35B00

$19.98

19

SPACER (8.5X14X28) | MODEL K This part replaces 09180-08136.

09180-08206

$5.75

20

SPACER | MODEL K This part replaces 09180-08119.

09180-08156

$6.70

20

ROLLER, CHAIN CONTROL | MODEL L/M This part replaces 43910-27C10.

43910-27C11

$64.67

20

ROLLER, CHAIN CONTROL | MODEL N

43910-27C11

$64.67

21

WASHER | MODEL K

08211-08221

$2.45

21

WASHER | MODEL L/M/N

08211-08121

$1.99

22

BOLT, UPPER

09103-08083

$3.70

23

BOLT, LOWER

09103-08043

$3.18

24

CLAMP This part replaces 09404-08402.

09404-08420

$3.16

25

NUT, LOWER

08319-31087

$2.32

26

NO DESCRIPTION AVAILABLE | MODEL K/L This part replaces 45100-27C00-4UZ.

45100-27C01-4UZ

Unavailable

26

SEAT SET | MODEL M This part replaces 45100-27C00-E84.

45100-27C10-6LK

Unavailable

26

SEAT ASSY (GREEN/BLUE) | MODEL N

45100-27C10-6LK

Unavailable

27

CUSHION

09321-08009

$3.05
