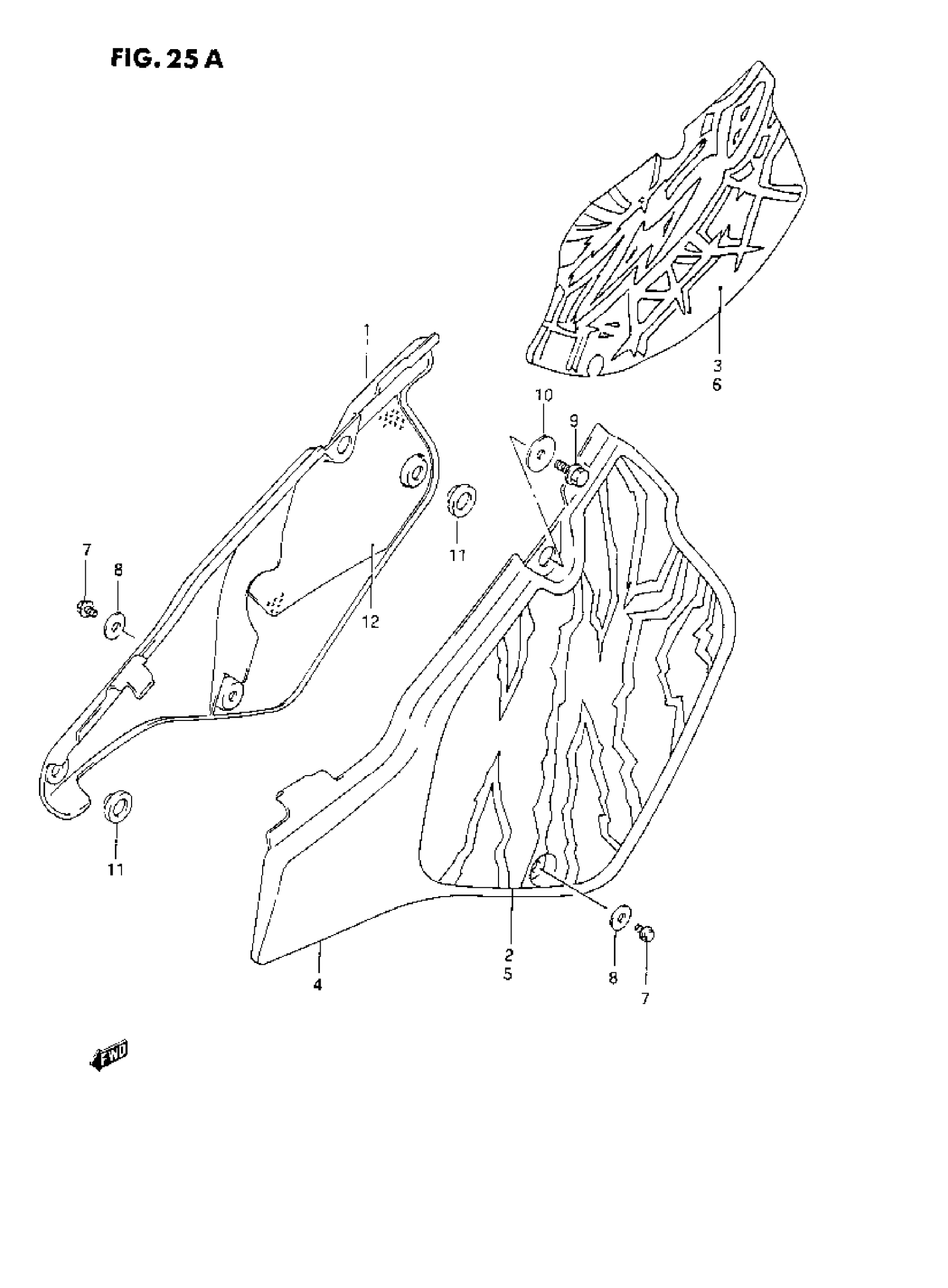

Suzuki RMX250 (1993) FRAME COVER (N/P/R) Diagram

#

Description
Price

1

COVER, FRAME RH (YELLOW) | MODEL N

47111-05D00-25Y

Unavailable

1

COVER, FRAME RH (WHITE) | MODEL P/R

47111-05D00-30H

Unavailable

2

TAPE, RH | MODEL N

68135-05D10-L59

Unavailable

3

EMBLEM, RH | MODEL P

68131-05D00-A4J

Unavailable

4

COVER, FRAME LH (YELLOW) | MODEL N

47211-27C00-25Y

Unavailable

4

COVER, FRAME LH (WHITE) | MODEL P/R

47211-27C00-30H

Unavailable

5

TAPE, LH | MODEL N

68145-05D10-L59

Unavailable

6

EMBLEM, LH | MODEL P

68141-05D00-A4J

Unavailable

7

BOLT, FRONT LH

01547-06167

$1.65

8

WASHER

09168-06027

$2.80

9

BOLT, REAR LH | MODEL N/P This part replaces 01517-08207.

01550-08207

$2.69

9

BOLT, REAR LH | MODEL R This part replaces 01810-08207.

01550-08207

$2.69

10

WASHER, REAR

09169-08045

$2.23

11

CUSHION, MUFFLER REAR

09321-10018

$5.45

12

HEAT SHIELD, REAR RH

47166-05D00

Unavailable

12

HEAT SHIELD, FRONT RH | MODEL P/R

47167-05D00

Unavailable
