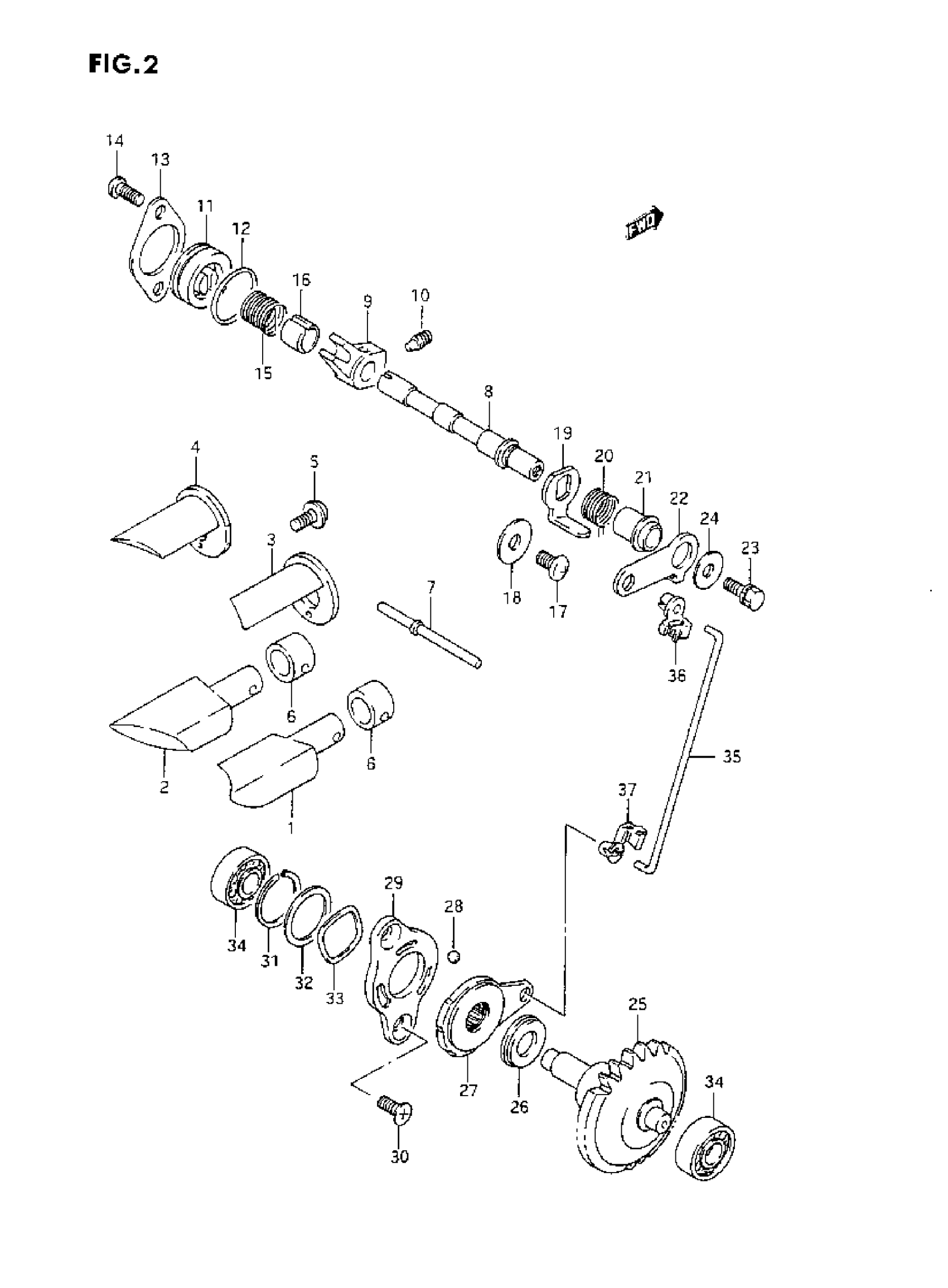

Suzuki RMX250 (1993) EXHAUST VALVE (K) Diagram

#

Description
Price

1

VALVE, EXHAUST RH

11254-28C00

Unavailable

2

VALVE, EXHAUST LH

11255-28C00

Unavailable

3

GUIDE, EXHAUST VALVE RH

11261-28C01

Unavailable

4

GUIDE, EXHAUST VALVE LH

11262-28C01

Unavailable

5

SCREW This part replaces 02112-15128.

02142-05127

$1.97

6

SPACER, EXHAUST VALVE This part replaces 11263-26C00.

11263-29E00

Unavailable

7

PIN This part replaces 11253-01B31.

11253-01B32

$24.17

8

NO DESCRIPTION AVAILABLE This part replaces 11259-28C00.

11259-28C01

Unavailable

9

ARM, EXHAUST VALVE SHAFT This part replaces 11264-00B23.

11264-00B24

$23.32

10

SCREW

09134-06013

$3.87

11

CAP, EXHAUST VALVE This part replaces 11258-27C00.

11258-27C01

Unavailable

12

O RING(D:1.9,ID This part replaces 09280-23002.

09280-23003

$1.80

13

RETAINER, EXHAUST VALVE This part replaces 11265-00B21.

11265-00B22

Unavailable

14

SCREW This part replaces 02112-05128.

02112-05127

$1.97

15

SPRING

09444-16005

Unavailable

16

SPACER

11269-00B20

Unavailable

17

SCREW

02112-06087

$1.49

18

WASHER

08212-06201

$1.67

19

LEVER, EXHAUST VALVE NO.2 This part replaces 11267-00B20.

11267-00B21

$4.46

20

SPRING

09444-15008

$4.64

21

SPACER This part replaces 11268-01B00.

11268-01B01

$8.65

22

LEVER, EXHAUST VALVE NO.1 This part replaces 11266-00B20.

11266-00B21

$3.43

23

BOLT This part replaces 01134-05126.

01570-0512B

$2.52

24

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

$2.30

25

GOVERNOR ASSY, EXHAUST VALVE

12670-28C00

Unavailable

26

BEARING

09263-10002

$10.19

27

ACTUATOR, EXHAUST VALVE

12680-01820

Unavailable

28

BALL

06111-06003

$1.49

29

STATOR, ACTUATOR

12682-00B20

Unavailable

30

SCREW (5X10)

09120-05003

$1.91

31

CIRCLIP

09380-19003

$2.15

32

SHIM (19.1X25X0.3)

09181-19004

$3.78

33

LOCK WASHER

09164-19001

$4.69

34

BEARING

09262-08005

$12.67

35

ROD, EXHAUST VALVE

12685-28C00

Unavailable

36

BUSH, EXHAUST VALVE ROD NO.1

12686-01B00

$1.65

37

BUSH, EXHAUST VALVE ROD NO.2

12687-01B00

$1.65
