Description

Price

1

PISTON

12110-05D03-0F0

Unavailable

2

RING, PISTON This part replaces 12141-41600.

12141-41620

$25.78

3

PIN, PISTON This part replaces 12151-28C00.

12151-37F00

$14.15

4

CIRCLIP

09381-18002

$1.67

5

BEARING, PISTON PIN

09263-18016

$19.93

6

CRAWSHAFT ASSY

12200-05D00

Unavailable

7

ROD, CONNECTING

12161-05D00

Unavailable

8

WASHER

09160-24015

Unavailable

9

PIN, CRANK

12211-05D00

$43.33

10

BEARING This part replaces 09263-24023.

09263-24026

$69.90

11

CRAWSHAFT, RH

12221-28C00

Unavailable

12

CRAWSHAFT, LH

12261-05D00

Unavailable

13

BEARING, RH (25X62XL7)

09262-25066

Unavailable

14

BEARING, LH (28X68XL8)

09262-28014

$57.95

15

OIL SEAL, RH (36X52X7) This part replaces 09283-36006.

09283-36007

Unavailable

16

OIL SEAL, LH (25X37X6)

09283-25084

$21.75

17

SPACER

12359-00B20

Unavailable

18

.O-RING (D:2.4,ID:21.8)

09280-22001

$1.65

19

GEAR, PRIMARY DRIVE (NT:23) This part replaces 21111-14310.

21111-14321

Unavailable

20

NUT

09140-16019

$3.70

21

WASHER

09164-16002

$3.16

22

NO DESCRIPTION AVAILABLE | OPT This part replaces 12100-05811.

12100-05813

Unavailable

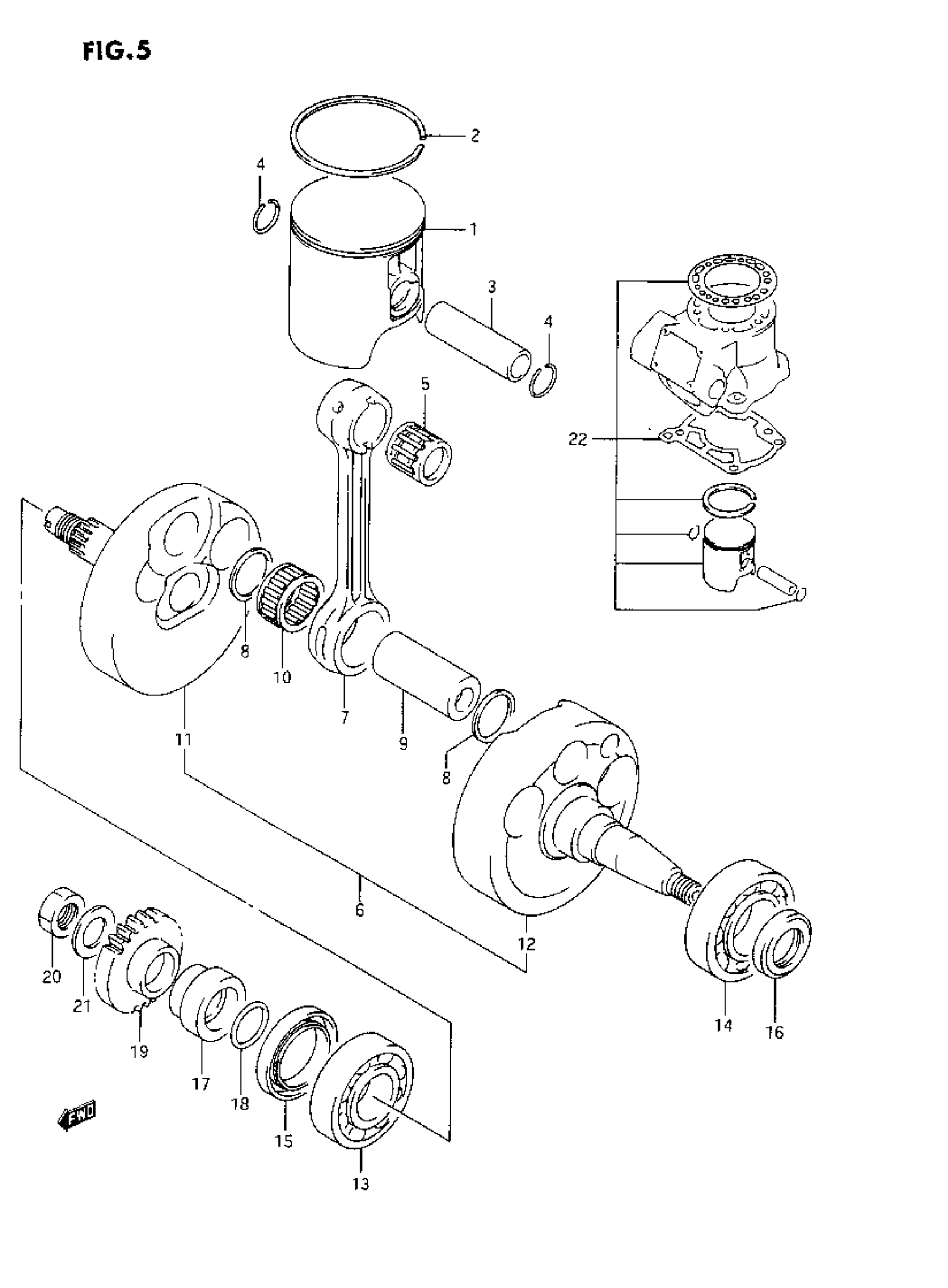

Suzuki RMX250 (1993) CRANKSHAFT (K) Diagram

PISTON

RING, PISTON This part replaces 12141-41600.

PIN, PISTON This part replaces 12151-28C00.

CIRCLIP

BEARING, PISTON PIN

CRAWSHAFT ASSY

ROD, CONNECTING

WASHER

PIN, CRANK

BEARING This part replaces 09263-24023.

CRAWSHAFT, RH

CRAWSHAFT, LH

BEARING, RH (25X62XL7)

BEARING, LH (28X68XL8)

OIL SEAL, RH (36X52X7) This part replaces 09283-36006.

OIL SEAL, LH (25X37X6)

SPACER

.O-RING (D:2.4,ID:21.8)

GEAR, PRIMARY DRIVE (NT:23) This part replaces 21111-14310.

NUT

WASHER

NO DESCRIPTION AVAILABLE | OPT This part replaces 12100-05811.
