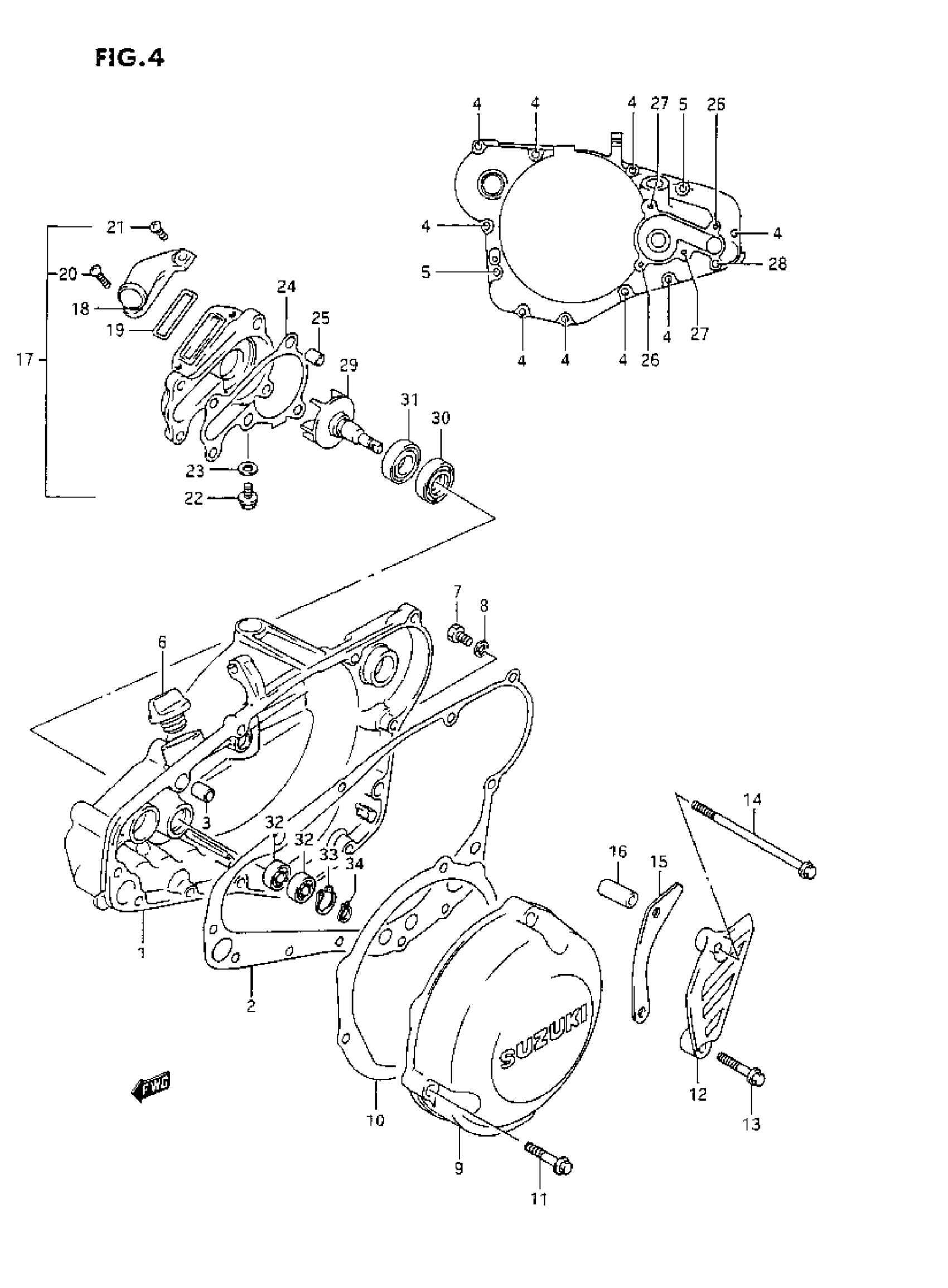

Suzuki RMX250 (1993) CRANKCASE COVER-WATER PUMP (K) Diagram

#

Description
Price

1

COVER, CLUTCH

11341-28C00

Unavailable

2

GASKET, CLUTCH COVER

11482-28C01

$19.58

3

PIN

04211-09129

$1.65

4

BOLT

01547-06257

$2.03

5

BOLT

01547-06357

$2.03

6

PLUG SET This part replaces 09200-20810.

09200-20811

$4.02

7

SCREW (6X10) This part replaces 09128-06004.

09128-06044

$1.49

8

GASKET

09168-06004

$1.49

9

NO DESCRIPTION AVAILABLE This part replaces 11351-05D00.

11351-05D02

Unavailable

10

GASKET, MAGNETO COVER This part replaces 11483-28C00.

11483-28C01

Unavailable

11

BOLT

01547-06257

$2.03

12

COVER, ENGINE SPROCKET This part replaces 11360-27C00.

11360-28E00

$32.00

13

BOLT

01547-06257

$2.03

14

BOLT This part replaces 01547-06958.

01547-06957

$3.43

15

PLATE, CHAIN GUIDE

27641-28C10

Unavailable

15

PLATE, CHAIN GUIDE | OPT, FOR NT:15

27641-28C20

$12.13

16

SPACER

09180-06203

$2.71

17

CASE, WATER PUMP

17410-28C01

$160.30

18

CONNECTOR

17412-28C00

Unavailable

19

O RING

17415-01C00

Unavailable

20

SCREW

02112-06167

$1.49

21

SCREW This part replaces 02112-06108.

02112-06107

$1.49

22

BOLT, DRAIN This part replaces 17415-00B00.

17415-43D00

$4.35

23

GASKET This part replaces 17413-00B00.

17413-28C10

$2.14

24

GASKET, WATER PUMP CASE

17431-28C00

Unavailable

25

PIN

04211-09129

$1.65

26

BOLT

01547-06207

$2.01

27

BOLT

01547-06307

$2.03

28

BOLT

01547-06857

$3.30

29

INPELLER, WATER PUMP

17491-28C00

Unavailable

30

OIL SEAL, INNER (12X24X3.6)

09282-12006

Unavailable

31

OIL SEAL, OUTER (12X24X6.4)

09289-12004

Unavailable

32

BEARING (8X19X6)

08113-06980

$12.67

33

CIRCLIP

09381-19003

$2.11

34

CIRCLIP This part replaces 08331-31086.

08331-31089

$1.78
