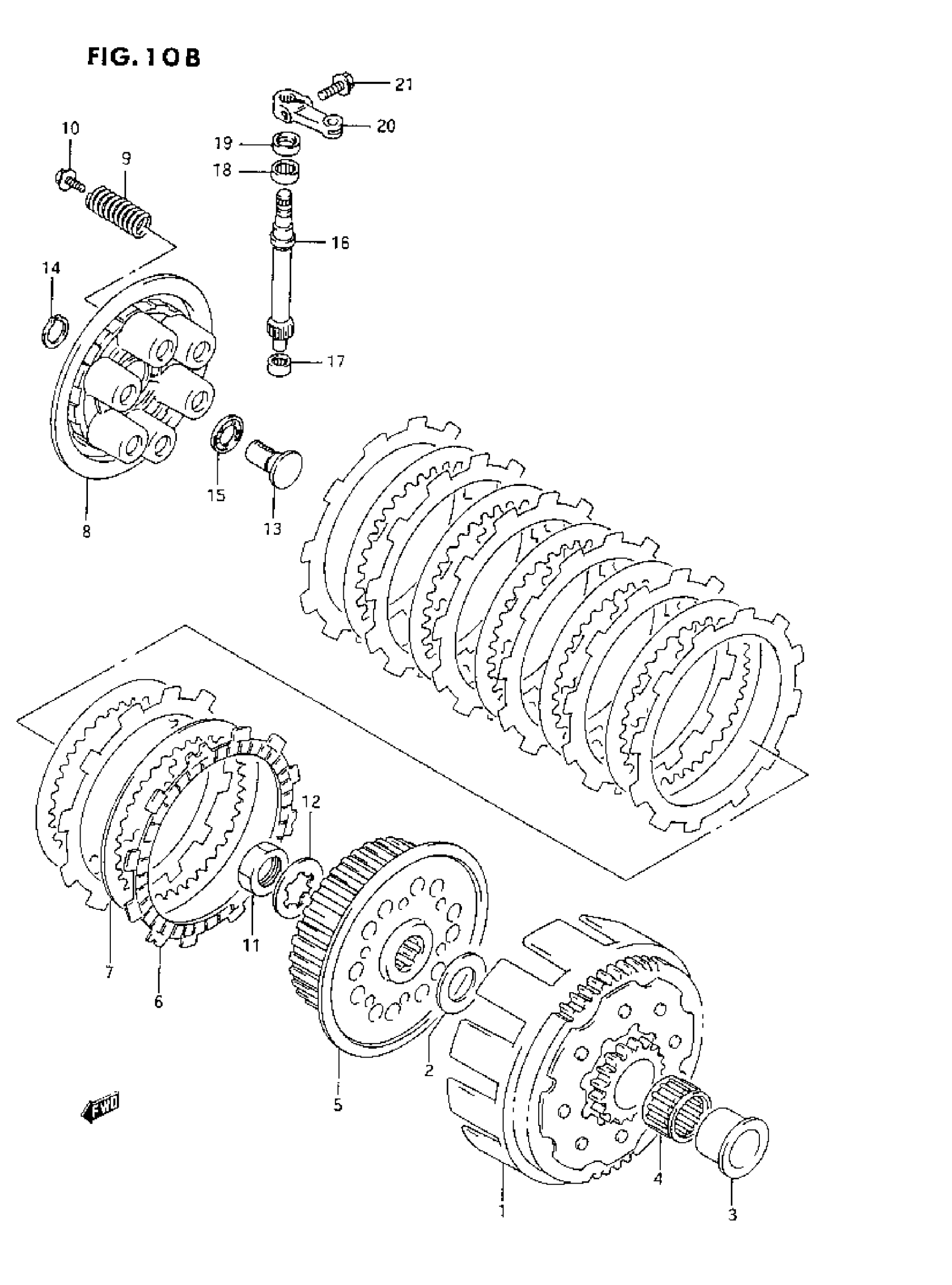

Suzuki RMX250 (1993) CLUTCH (R) Diagram

#

Description
Price

1

GEAR ASSY, PRIMARY DRIVEN This part replaces 21200-28C41.

21200-28E12

Unavailable

2

WASHER (22X38X2)

09160-22067

$10.90

3

SPACER

21251-28C01

Unavailable

4

BEARING (29X34X2L.8)

09263-29006

Unavailable

5

HUB, SLEEVE This part replaces 21410-28C34.

21411-28E10

Unavailable

6

PLATE, DRIVE NO.1 This part replaces 21441-07A02.

21441-12D01

$18.89

7

PLATE,CLUTCH DRIVEN (T:1.6) This part replaces 21451-28C30.

21451-28C31

$10.80

8

DISC, PRESSURE

21462-28E00

Unavailable

9

SPRING

09440-18025

$7.98

10

BOLT (5XL8)

09116-05019

$2.31

11

NUT

09140-18013

$15.33

12

LOCK WASHER

09167-22021

$1.82

13

RACK This part replaces 23165-28301.

23165-46000

$29.48

14

CIRCLIP This part replaces 08331-31106.

08331-31109

$1.77

15

THRUST BEARING

09263-10002

$9.20

16

PINION

23261-00B20

Unavailable

17

BEARING, NO.1

09263-09001

$15.80

18

BEARING, NO.2

09263-12024

$11.44

19

OIL SEAL (10X17X5)

09285-10004

$3.04

20

ARM, CLUTCH RELEASE This part replaces 23271-20901.

23271-20902

$27.09

21

BOLT This part replaces 01547-06163.

01547-0616B

$2.43
