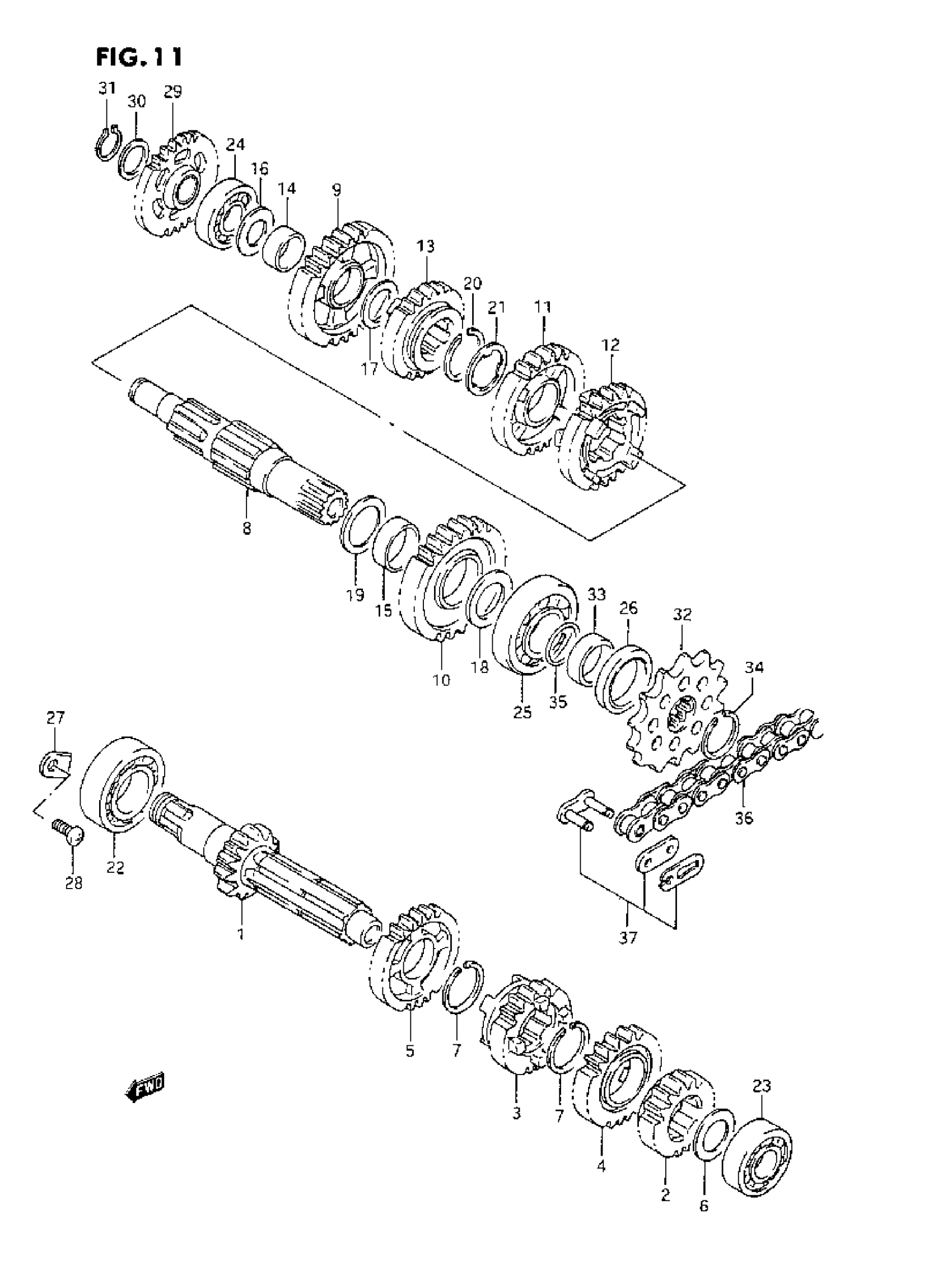

Suzuki RMX250 (1993) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT (NT:14) | MODEL K/L/M/N This part replaces 24121-05D00.

24121-05D02

Unavailable

1

COUNTERSHAFT (NT:14) | MODEL P/R

24121-05D02

Unavailable

2

GEAR, 2ND DRIVE (NT:15)

24221-28C00

Unavailable

3

GEAR, 3RD DRIVE (NT:16) This part replaces 24231-05D00.

24231-05D02

$151.07

4

GEAR, 4TH DRIVE (NT:22) This part replaces 24241-05D00.

24241-05D01

$131.95

5

GEAR, 5TH DRIVE (NT:22)

24251-05D00

$131.95

6

WASHER, 2ND DRIVE GEAR This part replaces 08211-17301.

09181-17223

$2.80

7

CIRCLIP

09380-25010

$2.80

8

DRIVESHAFT

24131-05D00

Unavailable

9

GEAR, IST DRIVEN (NT:32)

24311-05D00

$139.58

10

GEAR, 2ND DRIVEN (NT:26)

24321-28C02

$137.02

11

GEAR, 3RD DRIVEN (NT:22) | MODEL N This part replaces 24331-05D00.

24331-05D01

$141.73

11

GEAR, 3RD DRIVEN (NT:22) | MODEL P/R

24331-05D01

$141.73

12

GEAR, 4TH DRIVEN (NT:24) This part replaces 24341-05D00.

24341-05D01

$153.90

13

GEAR, 5TH DRIVEN (NT:19) This part replaces 24351-05D00.

24351-05D01

Unavailable

14

BUSH, IST DRIVEN GEAR

09300-20037

$19.47

15

BUSH, 2ND DRIVEN GEAR

09300-25031

$20.80

16

WASHER, 2ND DRIVE GEAR This part replaces 08211-17301.

09181-17223

$2.80

17

WASHER, LST DRIVEN GEAR NO.2

08211-20301

$2.97

18

WASHER (22X32X1.5) This part replaces 08211-22322.

09181-22212

Unavailable

19

WASHER, 5TH DRIVE This part replaces 08211-25341.

09181-25167

$2.85

20

CIRCLIP

09380-25010

$2.80

21

WASHER LOCK (25.1X31X1.0)

09167-25012

$4.02

22

BEARING, RH

09262-25003

$22.40

23

BEARING, LH

09262-17023

$15.11

24

BEARING, RH

09262-17023

$15.11

25

BEARING, LH

09262-22023

Unavailable

26

OIL SEAL (28X38X6)

09283-28020

$9.08

27

RETAINER This part replaces 24741-20A10.

24741-21A00

$2.80

28

SCREW This part replaces 02112-06128.

02112-06127

$1.83

29

GEAR, KICK IDLE (NT:27)

26260-05D00

Unavailable

30

WASHER (17X24X0.5) This part replaces 08221-17245.

09181-17130

$2.80

31

CIRCLIP | MODEL K/L/M/N/P

09380-17001

$1.90

31

CIRCLIP | MODEL R This part replaces 08331-31176.

08331-31179

$1.88

32

SPROCKET, ENGINE (NT:13) This part replaces 27511-14310.

27511-37F00

$23.59

32

SPROCKET, ENGINE (NT:15) | OPT

27511-14320

Unavailable

33

SPACER, ENGINE SPROCKET

27531-28C00

$12.18

34

CIRCLIP

09380-22006

$2.80

35

O RING

09280-21010

$2.02

36

CHAIN, DRIVE This part replaces 27600-05D20-114.

27600-06C20-114

Unavailable

37

JOINT, CHAIN (RK)

27620-05D00

Unavailable
