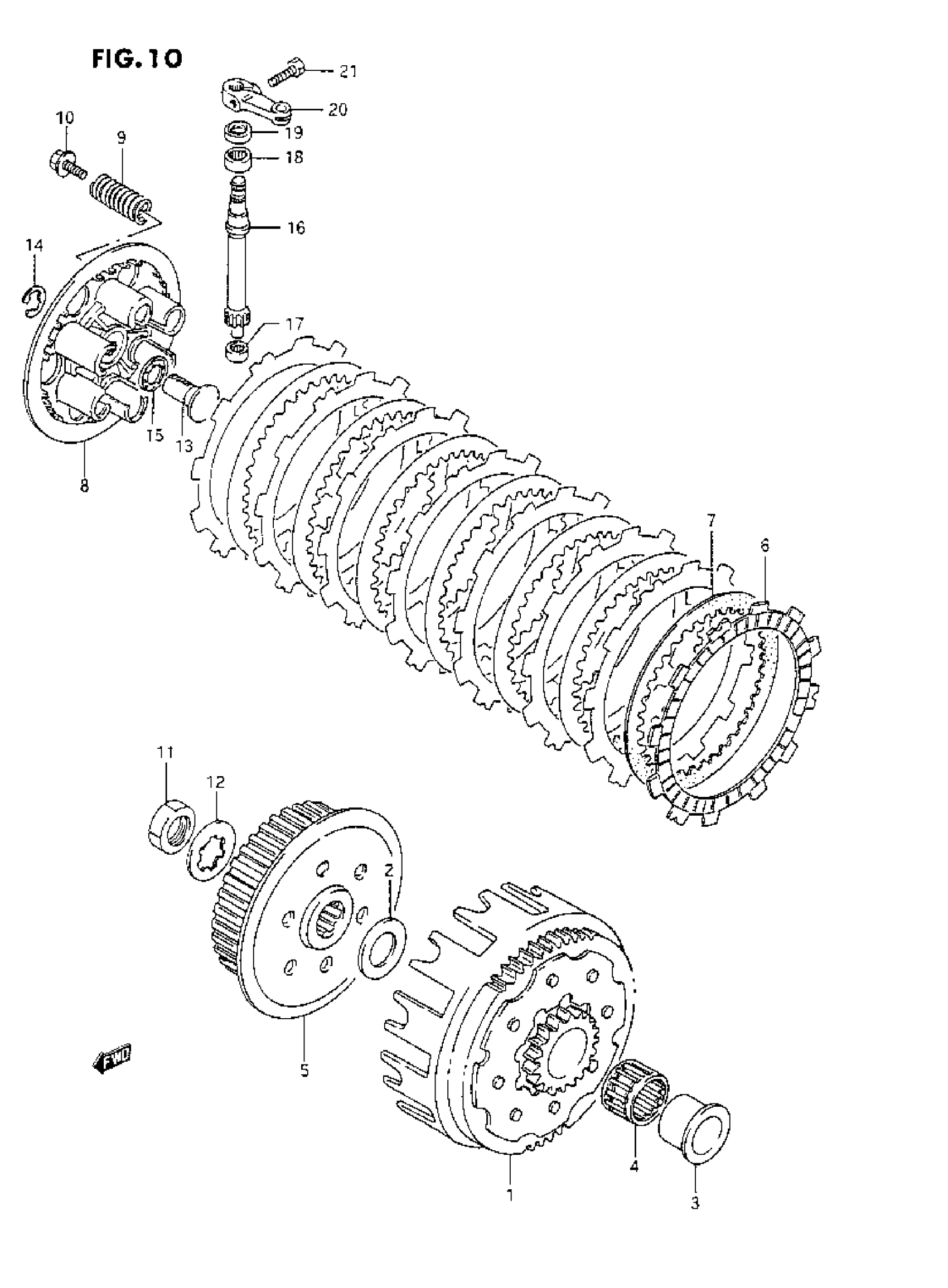

Suzuki RMX250 (1993) CLUTCH (K/L/M) Diagram

#

Description
Price

1

GEAR ASSY, PRIMARY DIRVEN | NT:61120

21200-28C01

Unavailable

2

WASHER (22X38X2)

09160-22067

$10.08

3

SPACER

21251-28C01

Unavailable

4

BEARING (29X34X2L.8) | MODEL K

09263-29006

Unavailable

4

BEARING (29X34X21.8) | MODEL L/M This part replaces 09263-29007.

09263-29006

Unavailable

5

HUB,CLUTCH SLEE This part replaces 21410-28C00.

21410-28C01

Unavailable

6

PLATE, DRIVE NO.1 | MODEL K This part replaces 21441-07A01.

21441-12D01

$20.64

6

PLATE, CLUTCH DRIVE NO.1 | MODEL L/M This part replaces 21441-28C10.

21441-37400

$18.13

7

PLATE,CLUTCH DRIVEN (T:1.6) This part replaces 21451-45000.

21451-28C31

$11.81

8

DISC, PRESSURE

21462-26C00

Unavailable

9

SPRING | MODEL K/L This part replaces 09440-19021.

09440-19024

Unavailable

9

SPRING | MODEL M

09440-19024

Unavailable

10

BOLT (5X18)

09116-05017

$2.44

11

NUT

09140-20016

Unavailable

12

LOCK WASHER

09167-22021

$1.78

13

RACK This part replaces 23165-28300.

23165-46000

$22.21

14

.E-RING This part replaces 08332-11086.

08332-1108A

$1.78

15

THRUST BEARING

09263-10002

$10.19

16

PINION

23261-00B20

Unavailable

17

BEARING, NO.1

09263-09001

$14.53

18

BEARING, NO.2

09263-12024

$12.67

19

OIL SEAL (10XL7X5)

09285-10004

$3.37

20

ARM, CLUTCH RELEASE This part replaces 23271-20900.

23271-20902

$29.60

21

BOLT, CANISTER This part replaces 01107-06167.

01500-06167

$1.97
