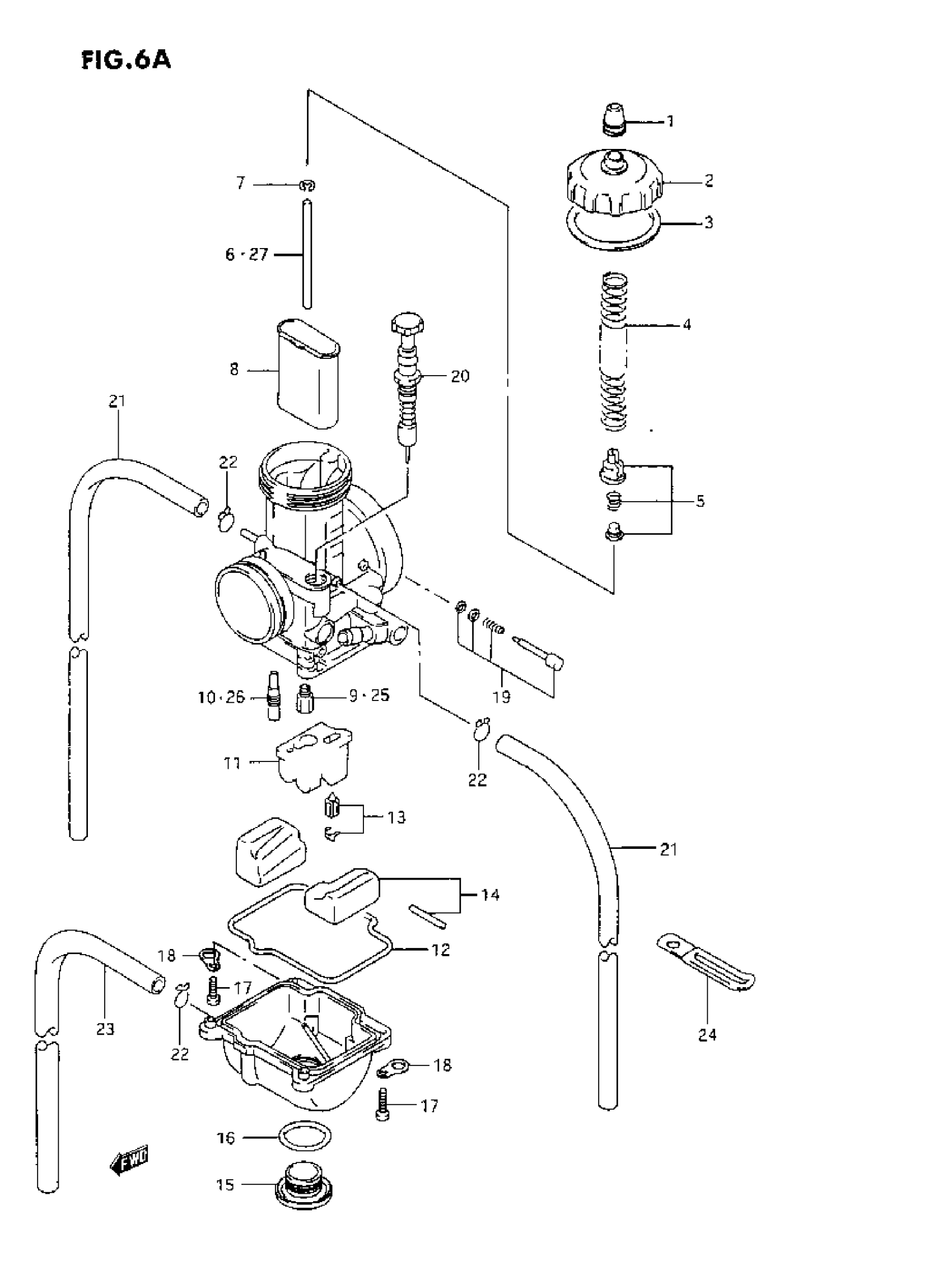

Suzuki RMX250 (1993) CARBURETOR (P/R) Diagram

#

Description
Price

1

CARBURETOR ASSY This part replaces 13200-29E20.

13200-29E21

Unavailable

1

CAP, CARBURETOR

13681-28E00

$8.07

2

CAP, TOP

13261-28E00

Unavailable

3

GASKET, TOP CAP

13266-28E00

Unavailable

4

SPRING

13573-28E00

$17.12

5

HOLDER SET, CABLE

13581-28E00

Unavailable

6

NEEDLE, JET

13383-29E40

Unavailable

7

CLIP, NEEDLE

13394-28E00

$5.25

8

VALVE, PISTON

13551-29E10

Unavailable

9

JET, MAIN (150)

09491-30018

$18.02

10

JET, SLOW (60)

09492-60016

Unavailable

11

HOLDER

13331-28E00

$15.55

12

GASKET, FLOAT CHAMBER

13696-28E00

$13.83

13

VALVE SET, FLOAT

13370-28E00

Unavailable

14

FLOAT SET

13240-28E00

Unavailable

15

BOLT, DRAIN

13247-28E00

$21.90

16

O RING

13246-28E00

$5.17

17

SCREW This part replaces 02112-34163.

02112-3416B

$2.19

18

PLATE

13693-28E00

$8.18

19

SCREW SET, AIR

13280-28E00

Unavailable

20

PLUNGER ASSY

13410-29E10

Unavailable

21

HOSE (4X7X620) | L:440-+360 This part replaces 13686-28E00.

13686-36E00

$10.28

22

CLIP

09401-06101

$2.03

23

HOSE (3.5X6.5X300) | L:600- 240

09351-35653-600

$4.64

24

CLAMP This part replaces 09404-06402.

09404-06039

$1.74

25

JET, MAIN (145) | OPT

09491-29014

$17.00

25

JET, MAIN (148) | OPT

09491-29015

Unavailable

25

JET, MAIN (150) | OPT

09491-30018

$18.02

25

JET, MAIN (152) | OPT

09491-30019

$18.02

25

JET, MAIN (155) | OPT

09491-31012

$18.02

25

JET, MAIN (170) | OPT

09491-34010

$17.37

25

JET, MAIN (172) | OPT

09491-34011

$17.37

25

JET, MAIN (175) | OPT

09491-35009

$17.68

25

JET, MAIN (178) | OPT

09491-35010

$18.02

25

JET, MAIN (180) | OPT

09491-36008

$18.02

25

JET, MAIN (185) | OPT

09491-37008

Unavailable

25

JET, MAIN (190) | OPT

09491-38011

Unavailable

25

JET, MAIN (195) | OPT

09491-39001

Unavailable

25

JET, MAIN (200) | OPT

09491-40013

$18.02

26

JET, SLOW (50) | OPT

09492-50023

$17.37

26

JET, SLOW (55) | OPT

09492-55017

$18.02

26

JET, SLOW (60) | OPT

09492-60016

Unavailable

26

JET, SLOW (65) | OPT

09492-65008

Unavailable

26

JET, SLOW (70) | OPT

09492-70009

Unavailable

27

JET NEEDLE SET (RL470M,R1471M,R1473M,R1474M) | OPT

13380-29E10

Unavailable

27

JET NEEDLE SET (RL470N,R1471N,R1472N,R1473N,R1474N | OPT

13380-29E20

Unavailable
