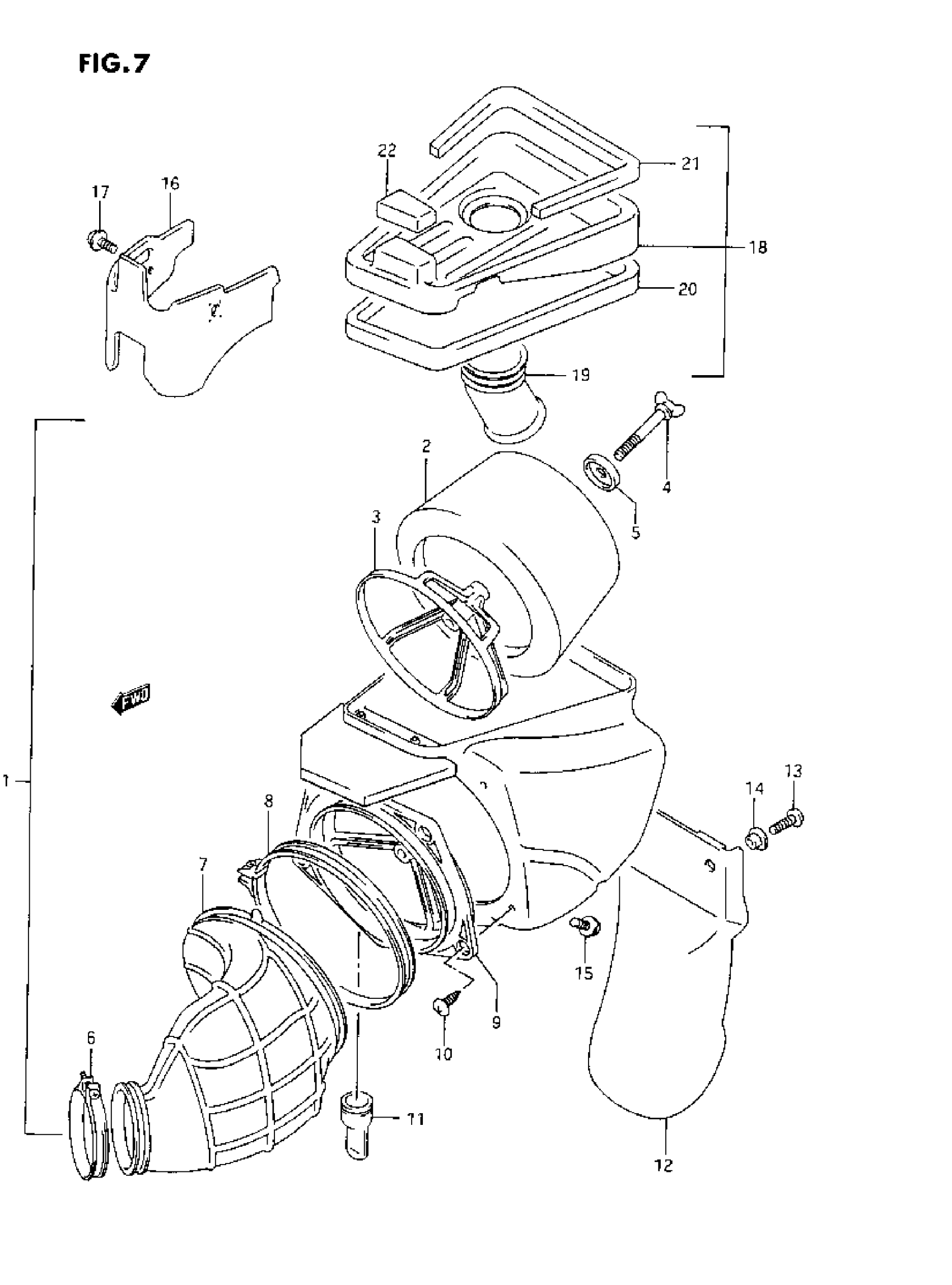

Suzuki RMX250 (1993) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | MODEL K This part replaces 13700-05D00.

13700-05D02

Unavailable

1

CLEANER ASSY, AIR | MODEL L This part replaces 13700-05D01.

13700-05D02

Unavailable

1

CLEANER ASSY, AIR | MODEL M/N

13700-05D02

Unavailable

1

CLEANER ASSY, AIR | MODEL P/R

13700-05D10

Unavailable

2

FILTER | MODEL K This part replaces 13780-00B20.

13780-28C10

Unavailable

2

FILTER | MODEL L/M/N/P/R

13780-28C10

Unavailable

3

HOLDER, FILTER

13791-00B20

Unavailable

4

BOLT, WING

13831-02B00

$5.80

5

WASHER

13792-13A01

$4.34

6

CLAMP | MODEL K/L/M/N This part replaces 09402-70208.

09402-70902

$5.64

6

CLAMP | MODEL P/R

09402-68208

$5.58

7

NO DESCRIPTION AVAILABLE | MODEL K/L/M/N This part replaces 13881-28C00.

13881-28C01

Unavailable

7

TUBE, OUTLET | MODEL P/R

13881-05D10

Unavailable

8

CLAMP | MODEL K/L This part replaces 13826-01B20.

13826-43D00

Unavailable

8

CLAMP | MODEL M/N This part replaces 13826-01B21.

13826-43D00

Unavailable

8

CLAMP | MODEL P/R

13826-43D00

Unavailable

9

BASE, FILTER

13790-05D00

Unavailable

10

SCREW This part replaces 03242-05124.

03241-0512A

$1.49

11

.CAP, DRAIN This part replaces 13681-19B00.

13681-19B01

$6.63

12

GUARD, MUD

13738-01B00

Unavailable

13

SCREW

02142-06167

$1.49

14

SPACER

13838-02B00

$3.56

15

BOLT | MODEL K/L/M/N/P This part replaces 01517-06204.

01550-0620A

$1.97

15

BOLT, GEAR SHIFT LINK | MODEL R This part replaces 01800-06203.

01500-0620A

$1.78

16

GUARD, MUD | MODEL K/L/M This part replaces 13739-05D00.

13739-43D00

Unavailable

16

GUARD, MUD | MODEL N/P/R

13739-43D00

Unavailable

17

SCREW (6XL2)

09136-06004

$2.15

18

CAP, AIR CLEANER | MODEL K/L/M/N

13740-05D00

Unavailable

18

CAP, AIR CLEANER | MODEL P/R

13740-05D10

Unavailable

19

TUBE, INLET | MODEL K/L/M/N

13891-38A50

Unavailable

19

TUBE, INLET | MODEL P/R

13891-34C00

Unavailable

20

GASKET

13746-05D00

Unavailable

21

CUSHION

13736-05D00

Unavailable

22

CUSHION

13737-05D00

Unavailable
