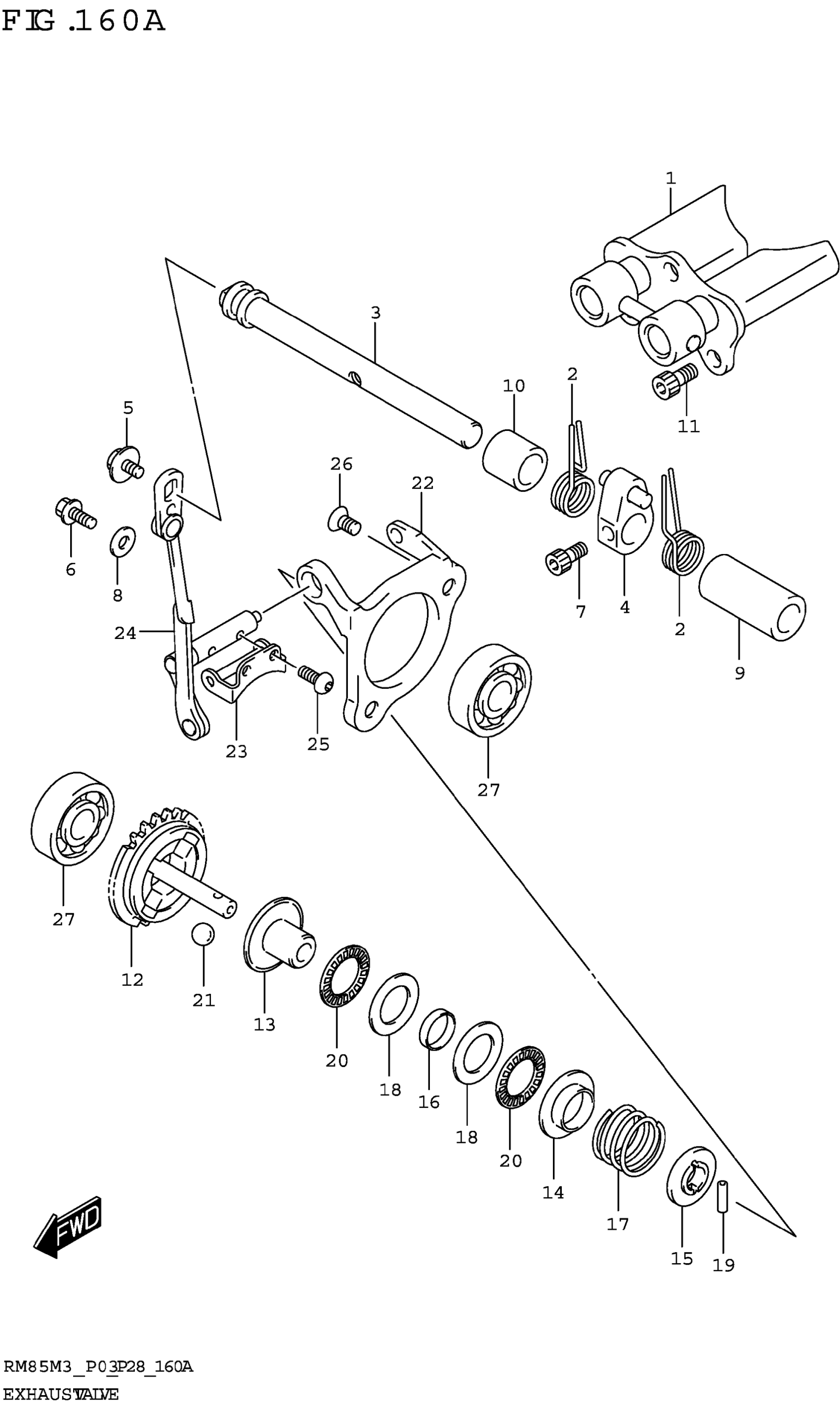

Suzuki RM85M3 (2023) EXHAUST VALVE Diagram

#

Description
Price

1

VALVE ASSY,EXHAUST VALVE

11250-03B10

$505.80

2

SPRING,EXHAUST VALVE SHAFT AR

11257-36F11

$7.57

3

SHAFT,EXHAUST VALVE

11259-03B10

$69.38

4

ARM,EXHAUST VALVE SHAFT

11270-36F10

$85.35

5

BOLT (5X10)

09103-05022

$1.86

6

BOLT

07130-0610A

Unavailable

7

BOLT (4X8)

09106-04003

$2.07

8

WASHER (6.5X14X2.3)

09160-06127

$2.30

9

SPACER (8.4X12X13)

09180-08138

$2.63

10

SPACER (8.5X12X11)

09180-08189

$2.58

11

BOLT

07130-0512A

$2.19

12

GOVERNOR SET,EXHAUST

12670-03810

$112.37

13

.GOVERNOR,DRIVEN

12672-36F10

$38.55

14

.STOPPER,GOVERNOR SPRING NO.1

12674-36F10

$28.27

15

.STOPPER,GOVERNOR SPRING N0.2

12675-36F11

$21.03

16

.SPACER,GOVERNOR

12676-36F10

$17.70

17

.SPRING,GOVERNOR

12677-03B00

$5.10

18

.SHIM (15X28X1)

09181-15223

$2.53

19

.ROLLER (3X12.5)

09261-03017

$2.45

20

BEARING (15X28X2)

09263-15003

$8.29

21

BALL

06111-12004

$1.93

22

BASE,ACTUATOR

12681-03B00

$159.76

23

ARM,ACTUATOR

12682-36F21

$9.55

24

ACTUATOR,EXHAUST VALVE

12689-03B10

$60.18

25

BOLT (4X8)

09106-04004

$2.15

26

.SCREW (5X10)

09120-05003

$1.91

27

BEARING (8X22X7)

09262-08005

$12.67
