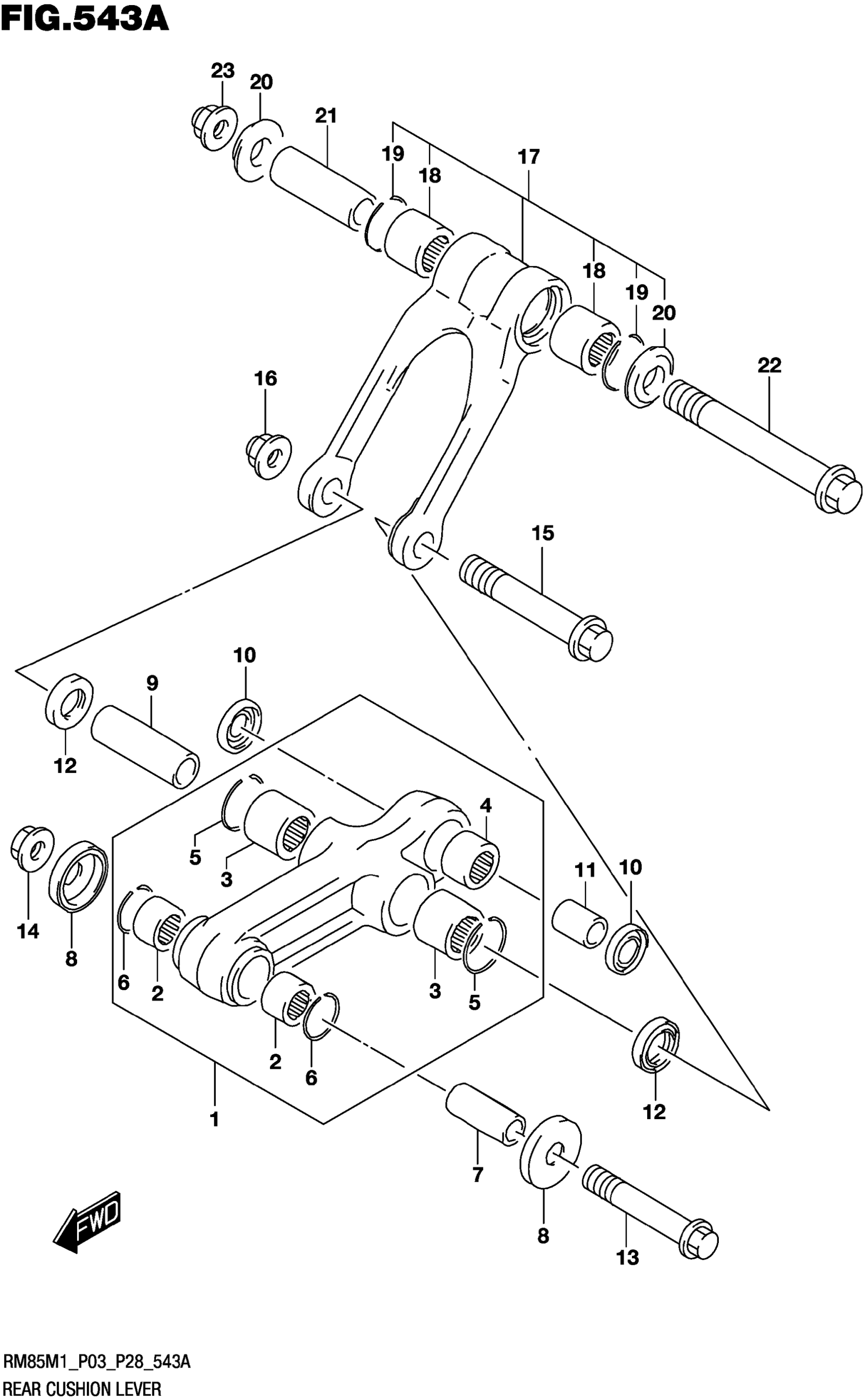

Suzuki RM85M0 (2021) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET,REAR CUSHION

62600-03890

Unavailable

2

BEARING (14X20X12)

09263-14027

$13.52

3

.BEARING This part replaces 09263-17039.

09263-17058

$16.23

4

.BEARING (20X26X12)

09263-20083

$24.56

5

.RING,STOPPER

62657-34A01

$1.99

6

CIRCLIP

09381-20004

$1.65

7

SPACER, RR CUSHION LEVER FR | 7)

62317-02B40

$18.02

8

OIL SEAL

62162-03B01

$9.37

9

SPACER,RR CUSHION LEVER CENTE | (12X17X54)

62626-02B40

$20.45

10

OIL SEAL (20X26X4.5)

09284-20001

$4.71

11

SPACER,RR CUSHION LEVER ,REAR

62684-36E00

$16.57

12

.SEAL,OIL (17X24X3)

09285-17007

$3.76

13

BOLT,REAR CUSHION LEVER,FRONT | (10X64)

62658-02B40

$9.17

14

NUT (M10)

09159-10115

$3.55

15

BOLT,REAR CUSHION LEVER CENTE | (12X87)

62621-02B40

$18.02

16

NUT

08319-3112A

$3.76

17

ROD SET,RR CUSHION LEVER

62600-03880

Unavailable

18

.BEARING This part replaces 09263-17039.

09263-17058

$16.23

19

.RING,STOPPER

62657-34A01

$1.99

20

SPACER,RR CUSHION ROD,SIDE (1 | X31X4)

62647-02B40

$8.18

21

SPACER,RR CUSHION ROD (12X17X | 0)

62646-02B40

$20.45

22

BOLT,REAR CUSHION ROD (12X115

62622-02B40

$18.02

23

NUT

08319-3112A

$3.76
