Description

Price

1

RADIATOR,WATER

17710-03B00

$632.40

2

NUT

09148-06015

$3.04

3

CAP,RADIATOR (1.1)

17730-08J00

$42.50

4

HOSE (5X8X2000) This part replaces 09351-50803-00A.

09351-50803-00B

$9.10

5

CUSHION RADIATOR LWR

17787-19A00

$3.56

6

BOLT (6X25)

09116-06186

$2.61

7

SPACER (6.5X10.5X14.1)

09180-06243

$5.46

8

HOSE,RADIATOR INLET

17851-03B00

$23.07

9

HOSE,RADIATOR OUTLET

17852-03B00

$27.33

10

CLAMP

09402-28513

$6.88

11

COVER,RADIATOR LH (YELLOW)

17762-37F10-YU1

$51.57

12

BOLT

01547-0612A

$2.03

13

WASHER (6.3X16X1)

09169-06053

$1.49

14

LOUVER,RADIATOR

17831-36E00

$19.07

15

TAPE SET,RADIATOR COVER (ORAN This part replaces 68670-03BP0-B7F.

68670-03BP0-BLE

$197.52

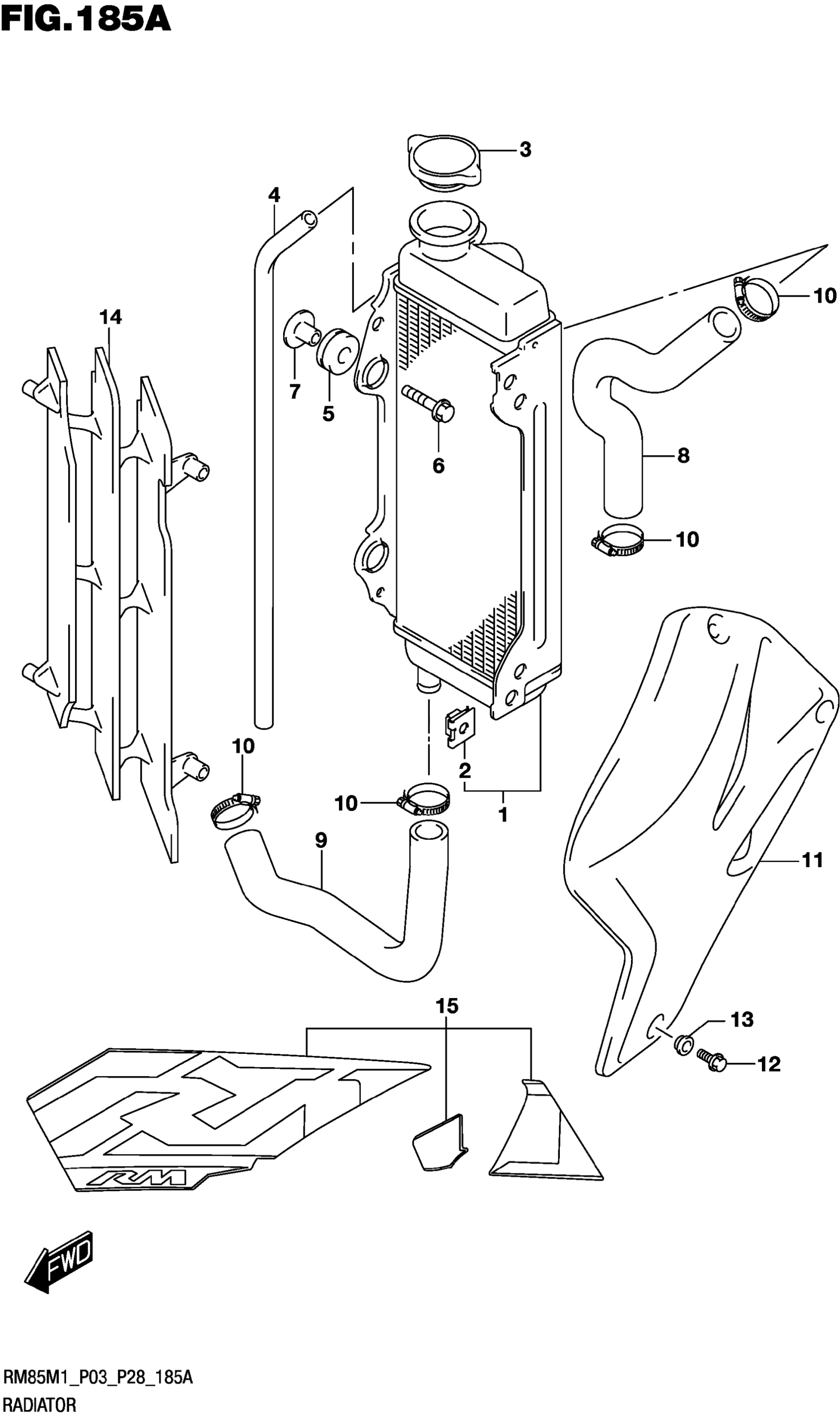

Suzuki RM85M0 (2021) RADIATOR Diagram
