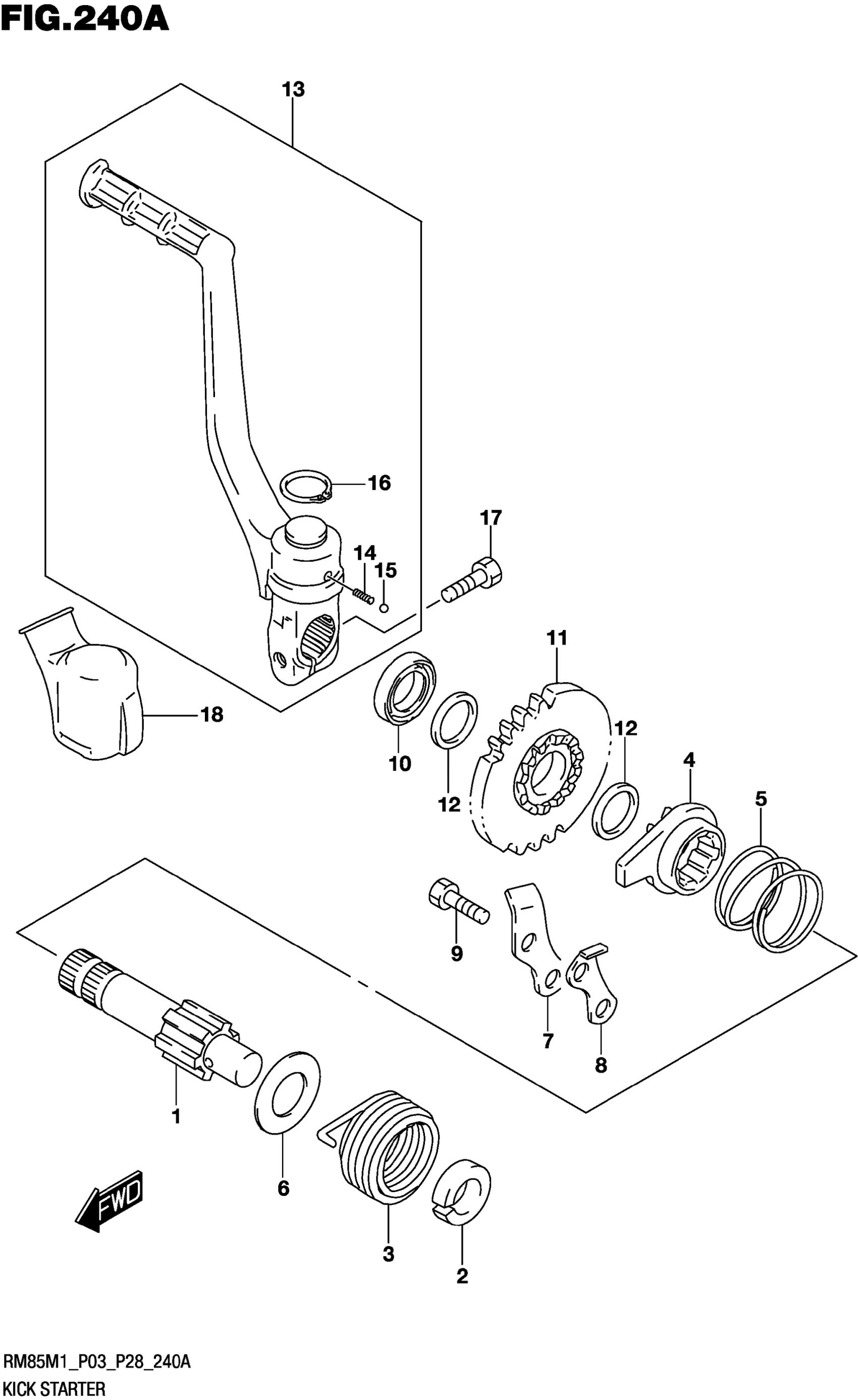

Suzuki RM85M0 (2021) KICK STARTER Diagram

#

Description
Price

1

SHAFT,KICK STARTER

26211-02B04

$97.05

2

GUIDE,SPRING

26221-02B00

$3.25

3

SPRING

09448-35007

$10.77

4

STARTER,KICK

26231-02B02

$36.17

5

SPRING

09440-31002

$2.22

6

WASHER

08211-12301

$2.03

7

GUIDE, KICK STARTER

26232-40200

$7.08

8

STOPPER,KICK STARTER

26233-40201

$5.52

9

BOLT

01500-0612A

$1.78

10

OIL SEAL (14X24X6) This part replaces 09285-14001.

09285-14002

$16.88

11

GEAR,KICK STARTER DRIVE (NT:2 | )

26241-02B41

$83.92

12

SHIM (14X20X1)

09181-14139

$2.60

13

LEVER ASSY,KICK STARTER

26300-03B00

$97.60

14

SPRING

09440-05003

$1.49

15

BALL

06111-07004

$1.49

16

CIRCLIP

08331-3115A

$2.25

17

BOLT

01500-06207

$2.28

18

COVER,JOINT

26341-20402

$8.52
