Partiron

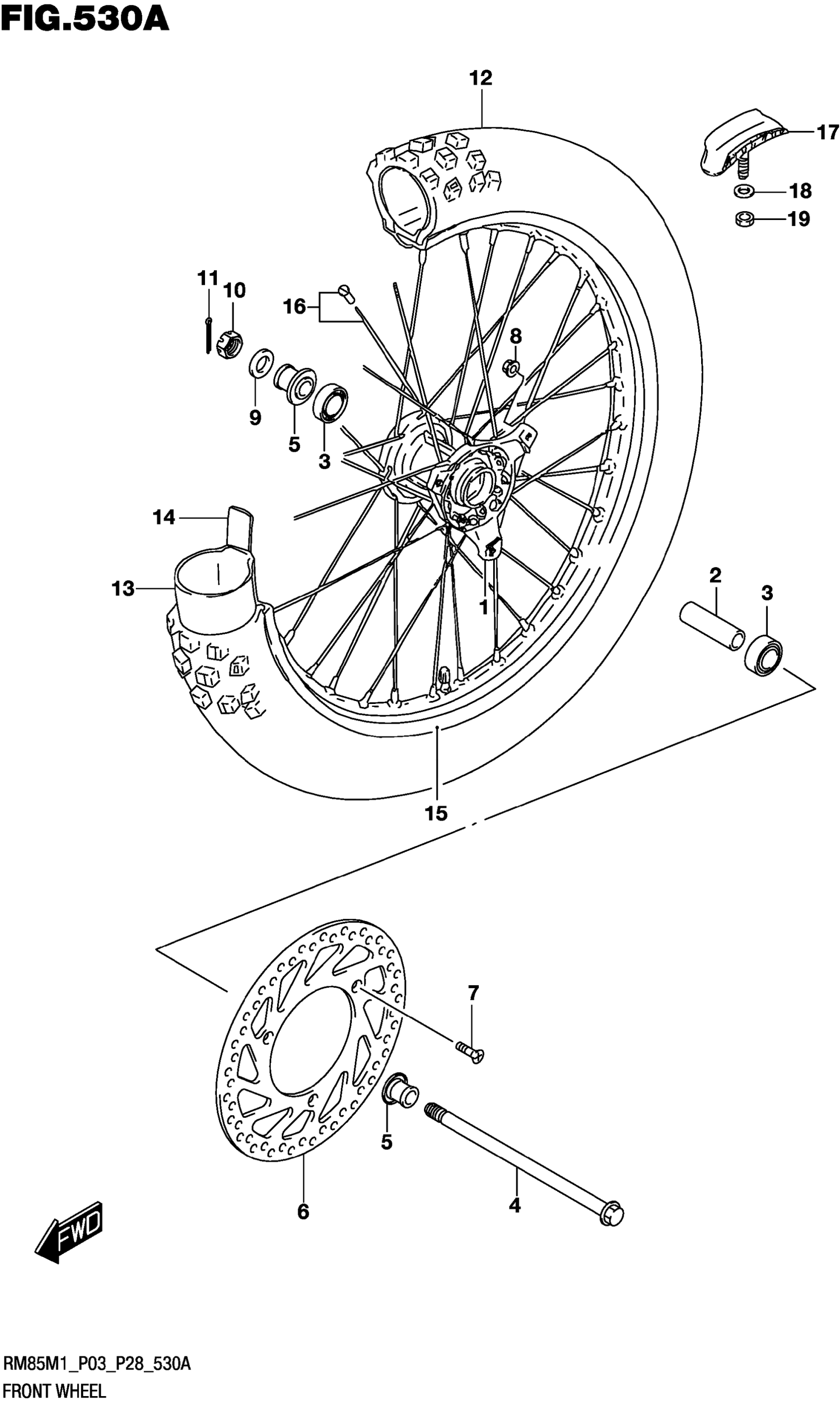

Suzuki RM85M0 (2021) FRONT WHEEL Diagram

#

Description
Price

1

HUB, FR WHEEL

54111-02B42

$316.32

2

SPACER, FR HUB BEARING | X17.3X50)

54731-02B40

$13.67

3

BEARING

08123-6201B

$22.98

4

AXLE,FRONT

54711-03B00

$46.90

5

SPACER, FR AXLE

54740-02B40

$15.68

6

DISC,FRONT BRAKE

59221-03B00

$227.45

7

SCREW (6X22)

09126-06009

$2.70

8

NUT

08319-3106A

$2.03

9

WASHER

08211-12204

$4.32

10

NUT

08314-4012B

$3.72

11

PIN

04111-2020A

$1.49

12

TIRE,FR,70/100-17 (70/100-17 | 0M D737F (DUNLOP))

55110-02B70

Unavailable

13

TUBE ASSY,WHEEL INNER

55200-02B70

Unavailable

14

PROTECTOR,WHEEL INNER TUBE

55261-02B40

$6.88

15

RIM,FR WHEEL (17X1.40)

55311-02B10

Unavailable

16

SPOKE SET,FRONT WHEEL

55320-02B10

$63.97

17

STOPPER, BEAD

65270-28600

$54.75

18

WASHER

08322-0108B

$2.34

19

NUT

08310-0008B

$2.70
