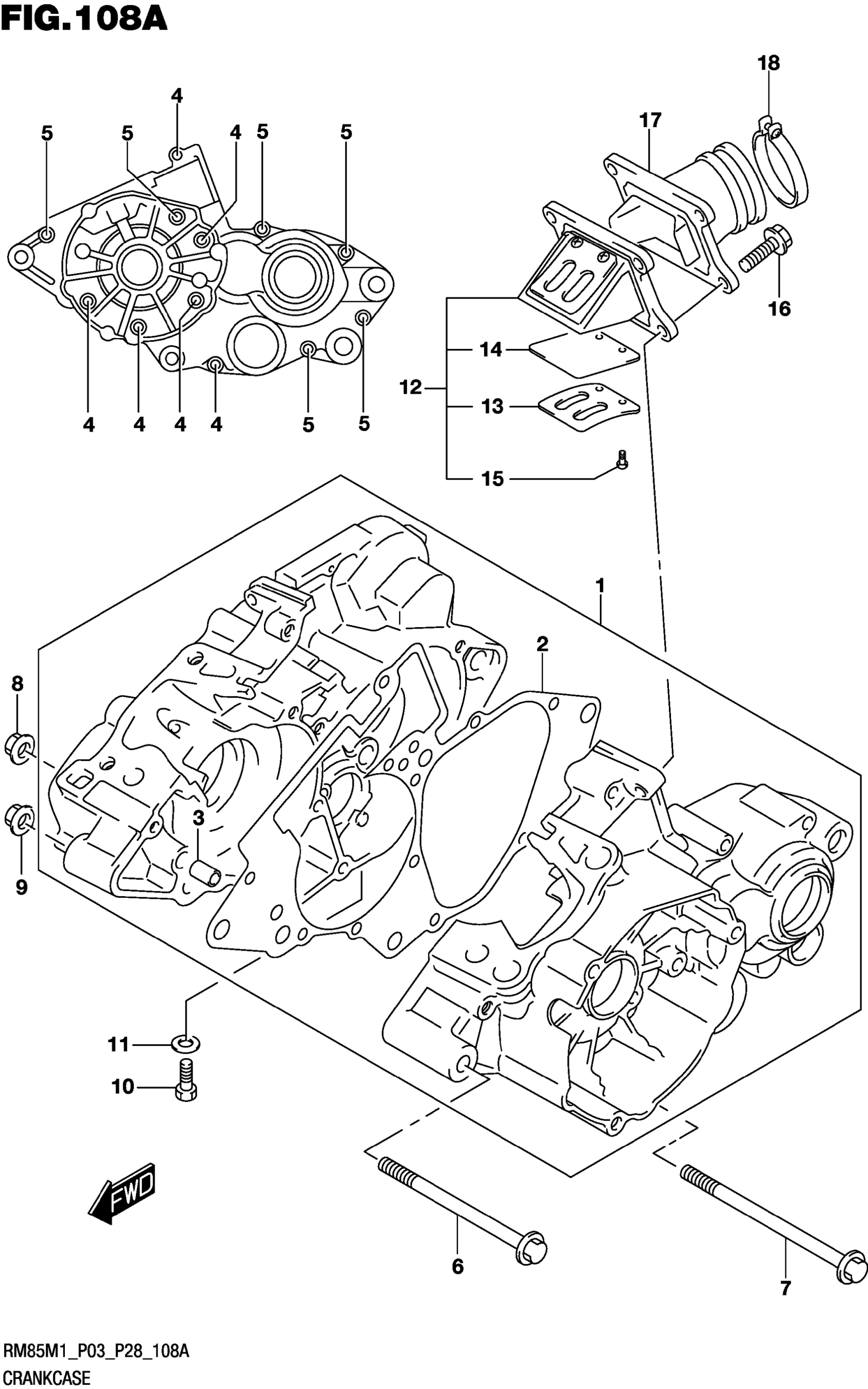

Suzuki RM85M0 (2021) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11300-03822

$811.58

2

.GASKET,CRANKCASE

11481-03B00

$15.70

3

PIN

04211-09129

$1.65

4

BOLT

01547-0640A

$2.32

5

BOLT

01547-0650A

$2.46

6

BOLT (10X95)

09103-10345

$7.58

7

BOLT (8X102)

09103-08296

$7.11

8

NUT (M8X1.25)

09159-08067

$5.57

9

NUT (M10)

09159-10060

$1.94

10

BOLT

01500-0816A

$2.22

11

GASKET (8.2X14X1)

09168-08016

$1.65

12

VALVE ASSY,REED

13150-02B51

$143.92

13

.STOPPER,REED VALVE

13152-02B50

$7.88

14

.VALVE,REED

13153-02B40

$13.20

15

.SCREW

02112-0306B

$1.59

16

BOLT

01547-0620A

$2.03

17

PIPE,INTAKE

13110-03B01

$58.08

18

.CLAMP

09402-42208

$6.88
