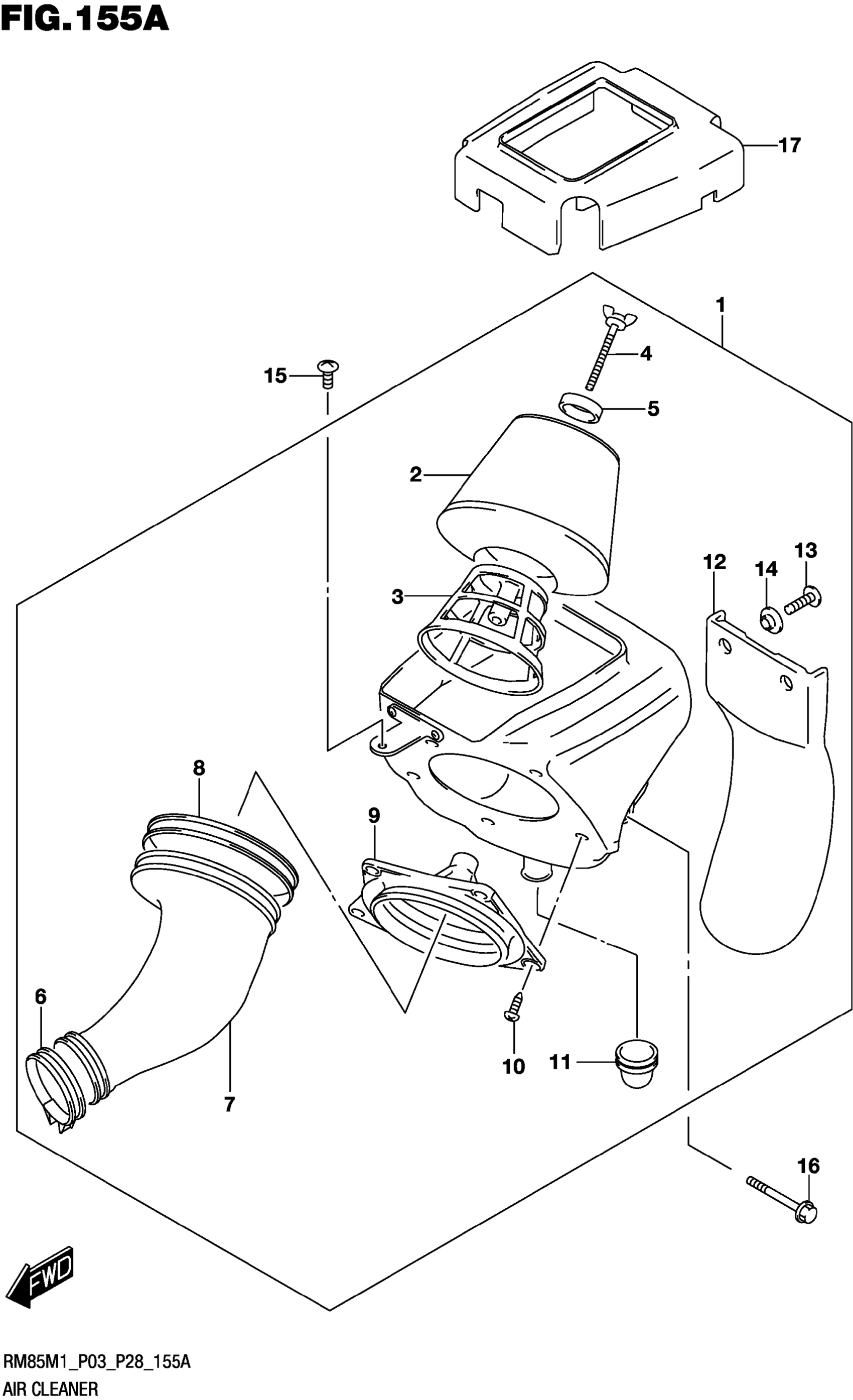

Suzuki RM85M0 (2021) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY,AIR

13700-03B01

$255.98

2

.FILTER ASSY

13780-02B00

$41.15

3

.HOLDER

13791-02B00

$18.20

4

.BOLT,WING

13831-02B00

$5.80

5

.WASHER

13792-13A01

$4.34

6

.CLAMP

09402-56901

$5.36

7

.TUBE,OUTLET

13881-03B01

$31.16

8

.CLAMP

09402-00303

$5.76

9

.BASE,FILTER

13790-02B10

$24.42

10

.SCREW

03241-0512A

$1.49

11

HOSE, DRAIN (1) This part replaces 13873-20410.

13873-18900

Unavailable

12

.GUARD,MUD

13738-02B00

$19.43

13

SCREW

02142-0616A

$1.49

14

.COLLAR

13838-02B00

$3.56

15

SCREW

02142-0612A

$1.49

16

BOLT

01547-0645A

$2.42

17

MUD GUARD,B

13739-02B20

$32.88
