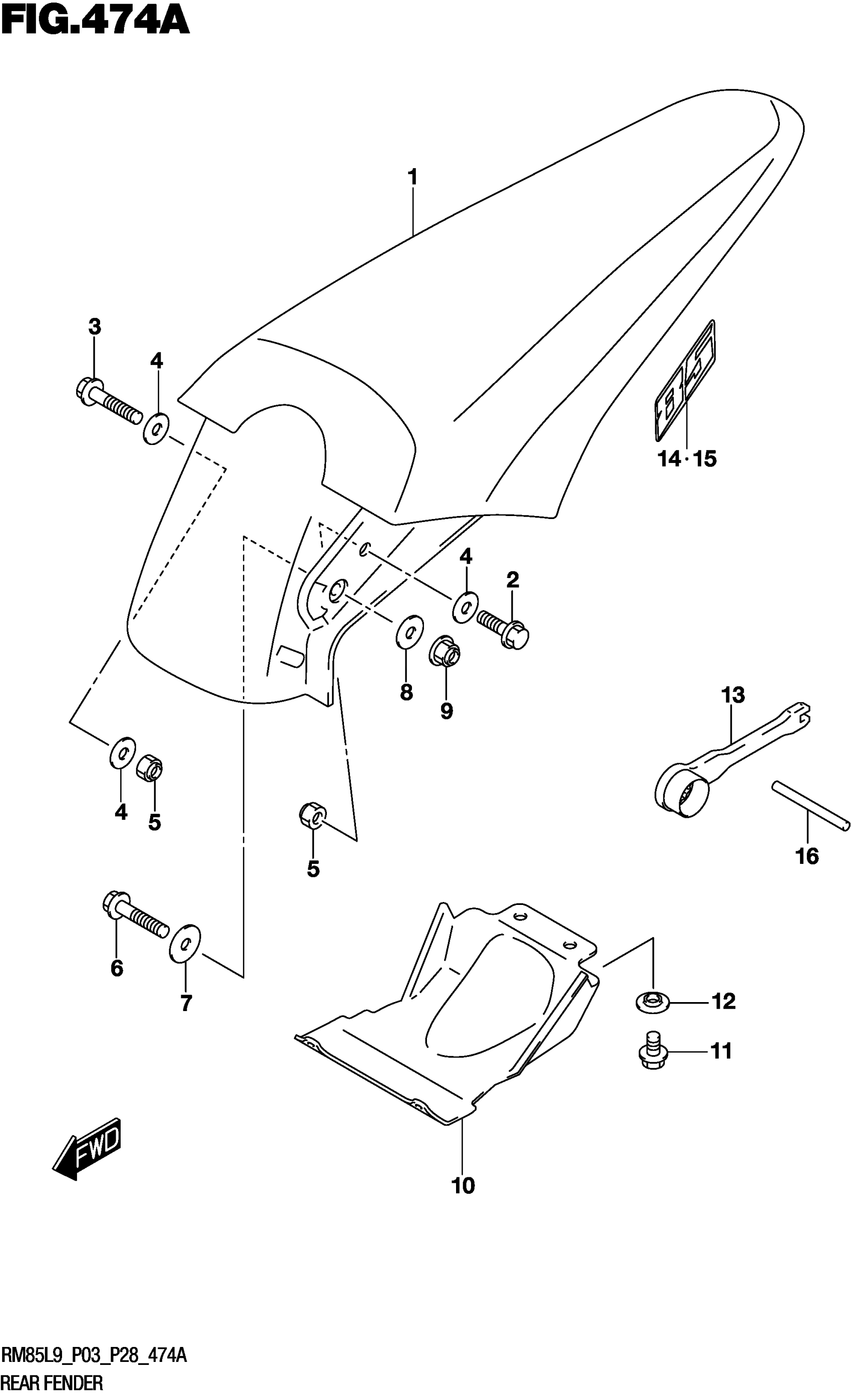

Suzuki RM85L9 (2019) REAR FENDER Diagram

#

Description
Price

1

FENDER,REAR (YELLOW)

63111-03B60-YU1

$51.57

2

BOLT | LH

01547-0620A

$2.03

3

BOLT (6X30) | RH

09103-06251

$2.35

4

WASHER (6.5X20X1.2)

09160-06077

$1.91

5

.NUT

08319-2106A

$1.91

6

BOLT (6X30)

09103-06251

$2.35

7

WASHER (6.5X26X2.3)

09160-06135

$2.17

8

WASHER This part replaces 09160-06132.

09160-06084

$1.78

9

NUT

08319-3106B

$2.45

10

MUDGUARD,RR FENDER FR

63351-03B00

$34.87

11

BOLT

01547-0610B

$2.45

12

WASHER

09169-06010

$2.60

13

SPANNER,BOX (21 & 5.8)

09816-00182

Unavailable

14

EMBLEM,REAR FENDER RH (YELLOW

68175-03B50-GY8

$16.78

14

EMBLEM,REAR FENDER RH (YELLOW

68175-03B50-GY8

$16.78

15

EMBLEM,REAR FENDER LH (YELLOW

68176-03B50-GY8

$16.78

15

EMBLEM,REAR FENDER LH (YELLOW

68176-03B50-GY8

$16.78

16

PIN (4X39.8)

09261-04014

$2.60
