Description

Price

1

CYLINDER ASSY, FRONT MASTER This part replaces 59600-37F00.

59600-37F10

$226.62

2

.PISTON & CUP SET

59600-37810

$58.68

3

..BOOT

59666-44300

$5.80

4

.DIAPHRAGM

59667-14500

$10.12

5

.CAP

59669-27C01

$23.32

6

.SCREW

69689-49300

$1.91

7

.HOLDER

59671-27C00

$17.02

8

.BOLT (6X22)

59675-06F10

$4.65

9

.SEPARATOR

59748-36E00

$9.37

10

UNION (10X1.25X22)

09360-10062

$6.43

11

WASHER (10X15X1.5)

09161-10009

$1.84

12

HOSE,FRONT BRAKE This part replaces 59480-03B81.

59480-03B82

$251.58

13

CLAMP,FR BRAKE HOSE INNER | INNER

59260-03B00

$12.80

14

CLAMP,FR BRAKE OUTER | OUTER

59271-03B00

$10.95

15

BOLT

01547-0616A

$2.03

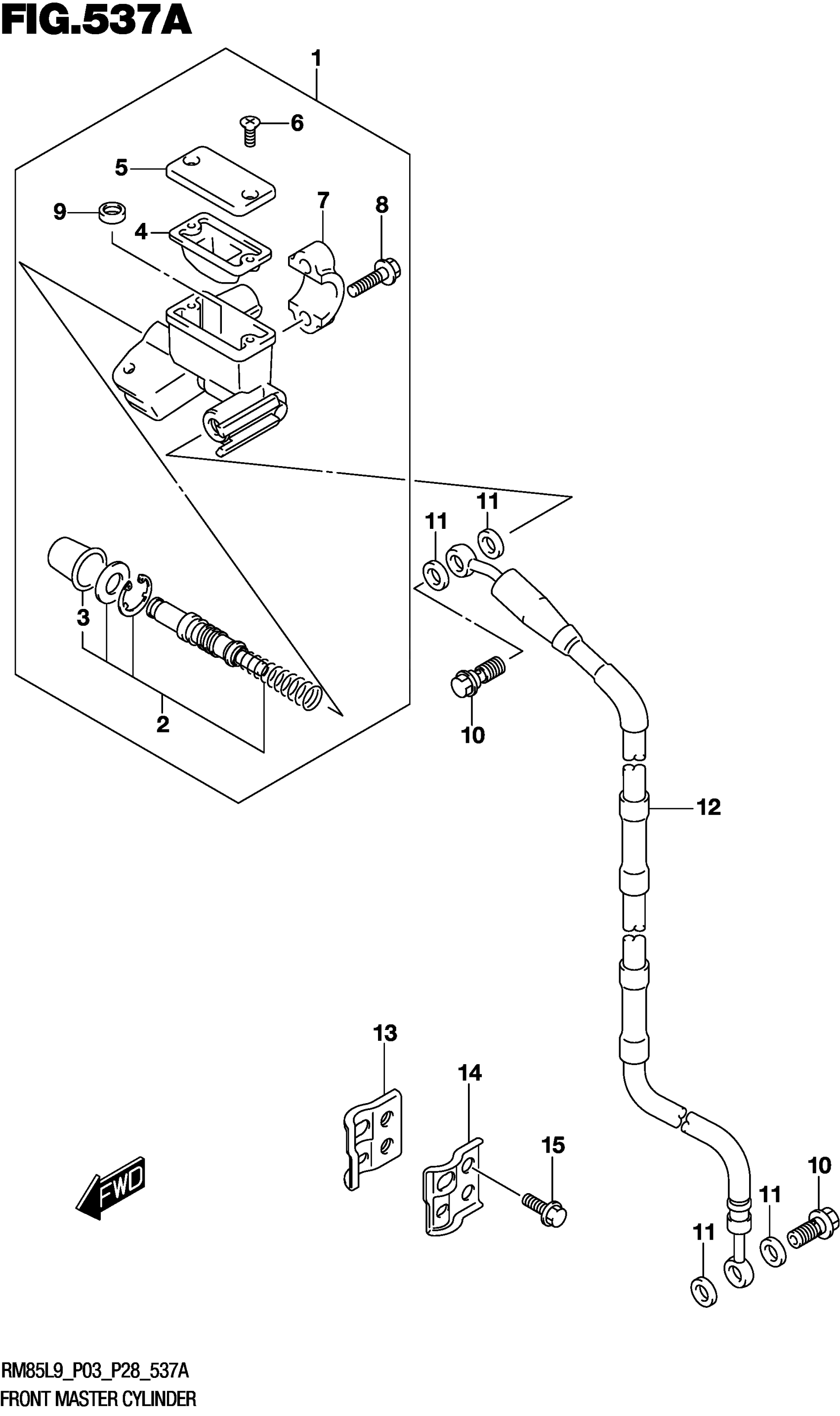

Suzuki RM85L9 (2019) FRONT MASTER CYLINDER Diagram
