2019 Suzuki RM85L9 Exhaust Valve Diagram

← All diagrams

Find the part on the Exhaust Valve diagram for your 2019 Suzuki RM85L9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

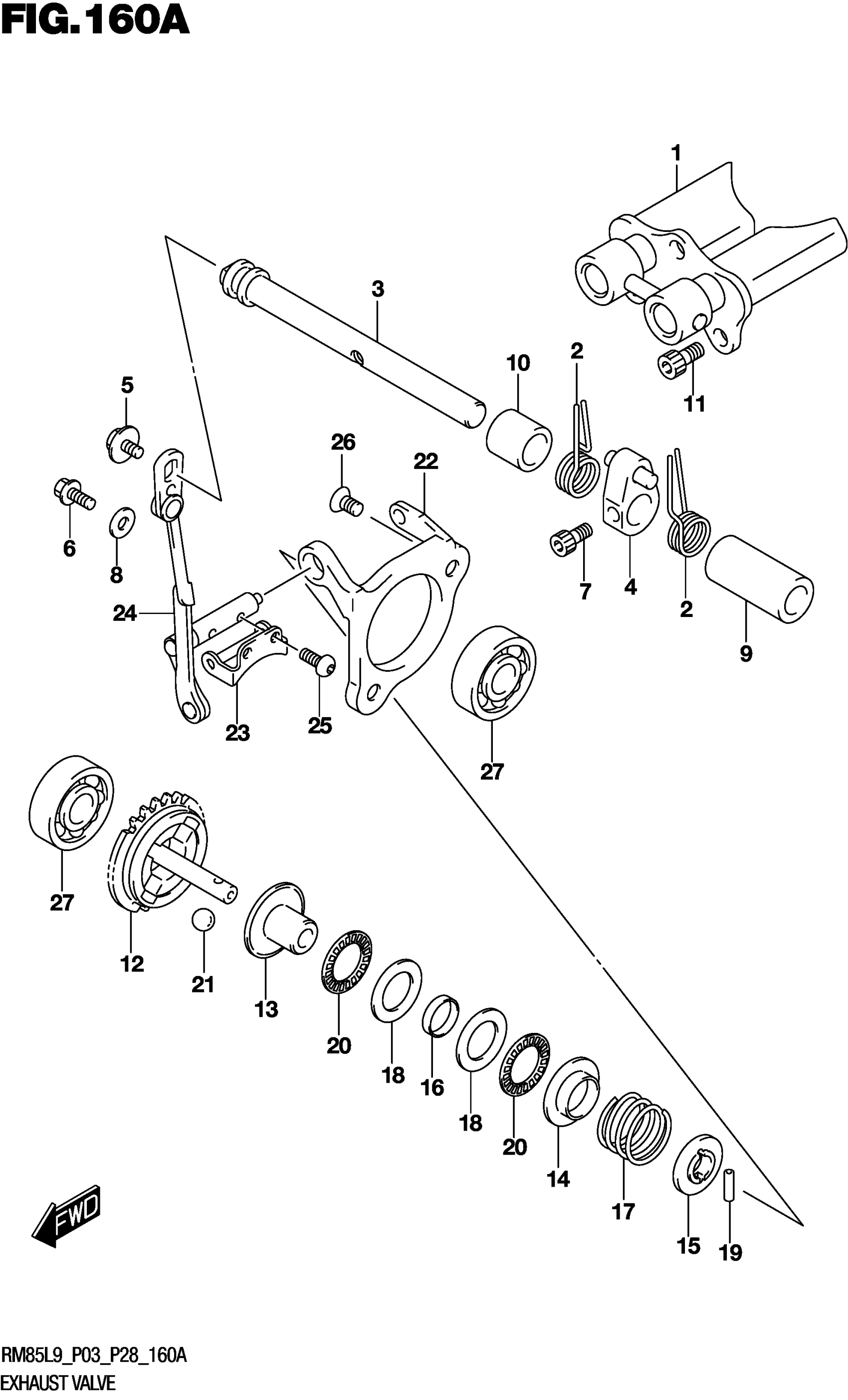

2019 Suzuki RM85L9 Exhaust Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

VALVE ASSY,EXHAUST VALVE

11250-03B10

1
Out of stock

2

2

$8.55

In stock

2

1

$8.55

In stock

3

SHAFT,EXHAUST VALVE

11259-03B10

1

$78.32

In stock

4

1

$111.74

In stock

5

BOLT (5X10)

09103-05022

1

$2.27

In stock

6

BOLT

01547-0610A

1
Out of stock

7

BOLT (4X8)

09106-04003

1

$2.27

In stock

8

WASHER (6.5X14X2.3)

09160-06127

1

$2.50

In stock

9

SPACER (8.4X12X13)

09180-08138

1

$2.87

In stock

10

SPACER (8.5X12X11)

09180-08189

1

$2.81

In stock

11

BOLT

07130-0512A

3
Out of stock

12

GOVERNOR SET,EXHAUST

12670-03810

1

$126.22

In stock

13

.GOVERNOR,DRIVEN

12672-36F10

1

$43.50

In stock

14

1

$31.90

In stock

15

1

$23.73

In stock

16

.SPACER,GOVERNOR

12676-36F10

1

$19.97

In stock

17

.SPRING,GOVERNOR

12677-03B00

1
Out of stock

18

.SHIM (15X28X1)

09181-15223

2

$2.75

In stock

19

.ROLLER (3X12.5)

09261-03017

1

$2.67

In stock

20

BEARING (15X28X2)

09263-15003

2

$8.03

In stock

21

BALL

06111-12004

4

$2.10

In stock

22

BASE,ACTUATOR

12681-03B00

1

$203.48

In stock

23

ARM,ACTUATOR

12682-36F21

1

$10.78

In stock

24

1

$67.93

In stock

25

BOLT (4X8)

09106-04004

2

$2.40

In stock

26

.SCREW (5X10)

09120-05003

2
Out of stock

27

BEARING (8X22X7)

09262-08005

2
Out of stock
