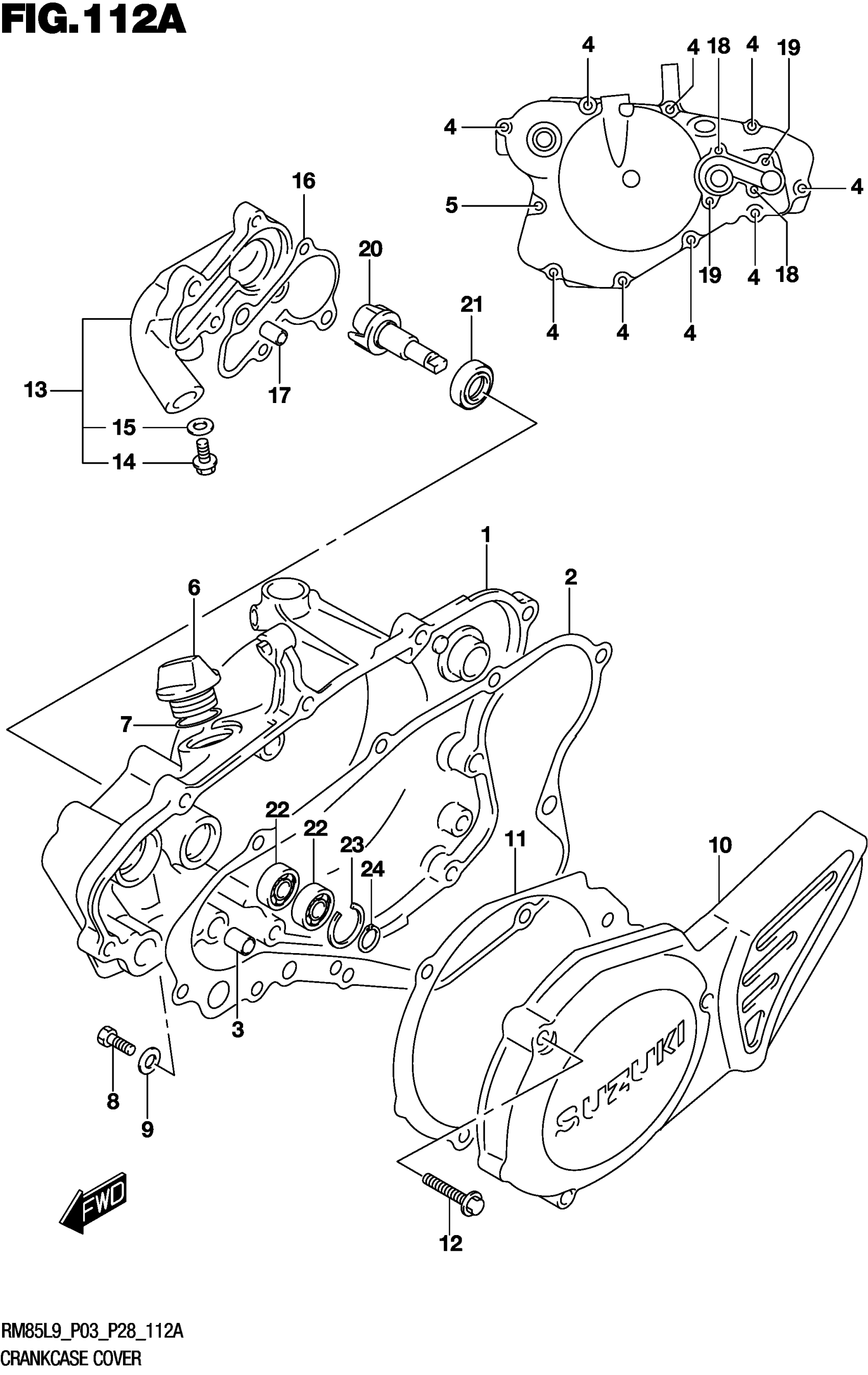

Suzuki RM85L9 (2019) CRANKCASE COVER Diagram

#

Description
Price

1

COVER,CLUTCH

11341-03B00

$303.48

2

.GASKET,CLUTCH COVER

11482-27C02

$12.70

3

PIN

04211-09129

$1.64

4

BOLT

01547-0625A

$2.01

5

BOLT

01547-0635A

$2.31

6

PLUG,ENGINE OIL FILLER

11971-25D00

$4.67

7

O-RING (D:3.1,ID:16.8)

09280-17003

$1.64

8

.BOLT

07120-0610A

$2.58

9

GASKET (6.2X11X1.2)

09168-06004

$1.43

10

COVER,MAGNETO

11351-03B00

$94.40

11

.GASKET,MAGNETO COVER

11483-03B00

$8.57

12

BOLT

01547-0625A

$2.01

13

CASE ASSY,WATER PUMP

17410-03B00

$136.53

14

.BOLT

17415-43D00

$3.79

15

.GASKET

17413-28C10

$2.05

16

.GASKET,WATER PUMP CASE

17431-02B42

$6.34

17

PIN

04211-09129

$1.64

18

BOLT

01547-0620A

$2.01

19

BOLT

01547-0630A

$2.31

20

IMPELLER,WATER PUMP

17491-02B41

$25.40

21

SEAL,WATER PUMP OIL

17461-03B00

$7.56

22

BEARING

08113-06980

$11.44

23

CIRCLIP

09381-19003

$2.33

24

CIRCLIP

08331-31089

$1.77
