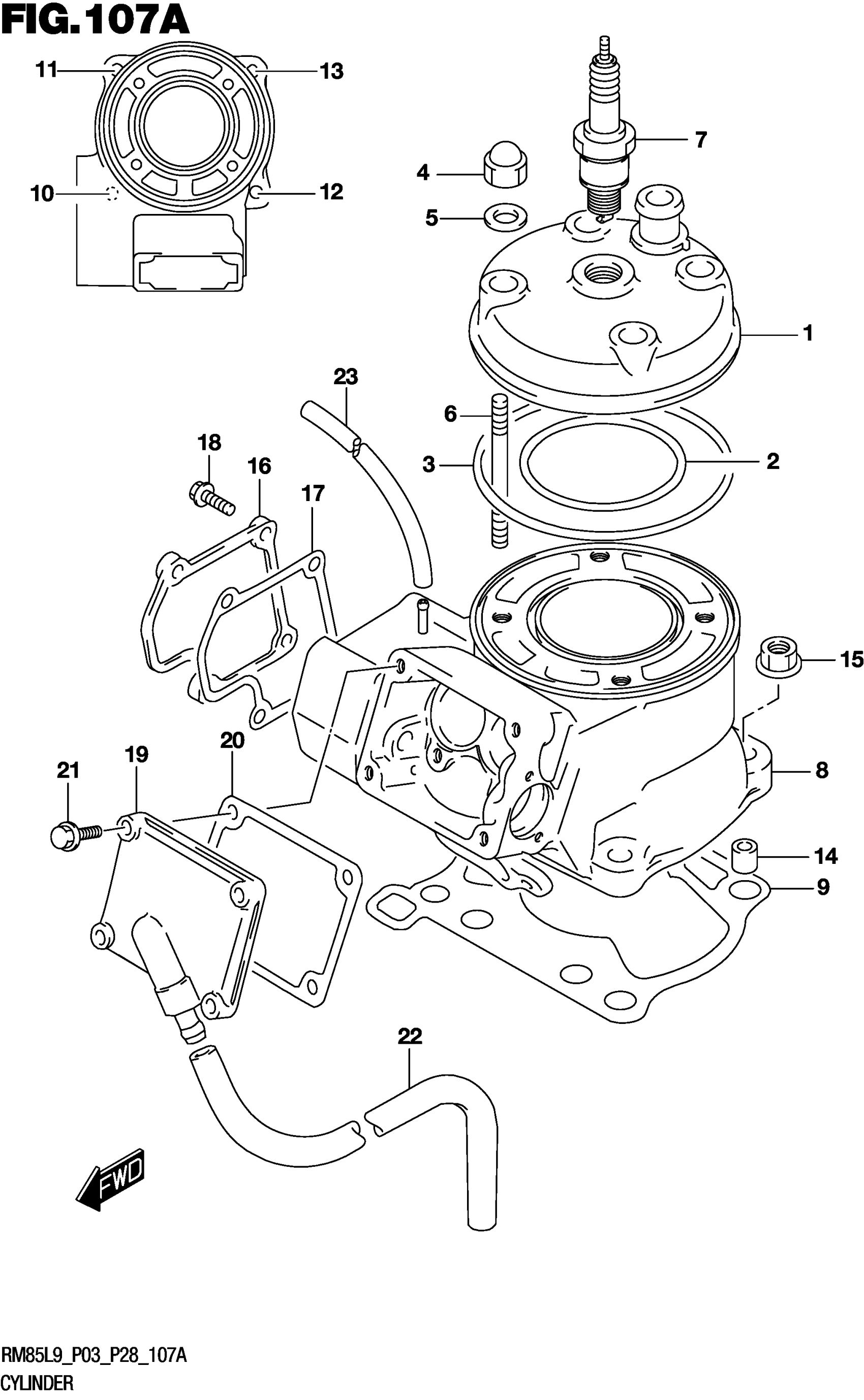

Suzuki RM85L9 (2019) CYLINDER Diagram

#

Description
Price

1

HEAD,CYLINDER

11111-03B10

$140.02

2

.O-RING,CYLINDER HEAD NO.1

11147-03B00

$10.20

3

.O-RING,CYLINDER HEAD NO.2

11148-03B00

$5.35

4

NUT

09159-08049

$4.71

5

.GASKET (8.5X17X2.3)

09168-08021

$2.61

6

STUD BOLT (8X38) This part replaces 09108-08227.

09108-08231

$3.42

7

SPARK PLUG,BR10ES (BR10EV) | NGK

09482-00360

$3.20

8

CYLINDER SET

11200-03830

$775.33

9

.GASKET,CYLINDER

11241-03B01

$8.34

10

BOLT,STUD

01421-0820A

$1.91

11

BOLT,STUD

01421-0825A

$2.03

12

BOLT,STUD (L:33)

09108-08220

$3.18

13

BOLT,STUD

01421-0835A

$2.29

14

PIN (8.4X11X14)

09206-11004

$5.36

15

NUT

08316-1008A

$2.45

16

COVER,CYLINDER,NO.1

11231-02B40

$33.75

17

.GASKET,CYLINDER COVER NO.1

11233-02B42

$6.22

18

BOLT (5X16)

09103-05016

$1.93

19

COVER,CYLINDER,NO.2

11248-12C01

$33.93

20

.GASKET,CYL COVER,NO.2

11238-01B30-H17

$4.03

21

BOLT (5X16)

09103-05016

$1.93

22

HOSE(5X8.2X600) | L:600->150 This part replaces 09359-50823-600.

09359-50824-600

$7.98

23

HOSE,5X10X600 | L:600->260 This part replaces 09352-50823-600.

44421-13ER0

$10.06
