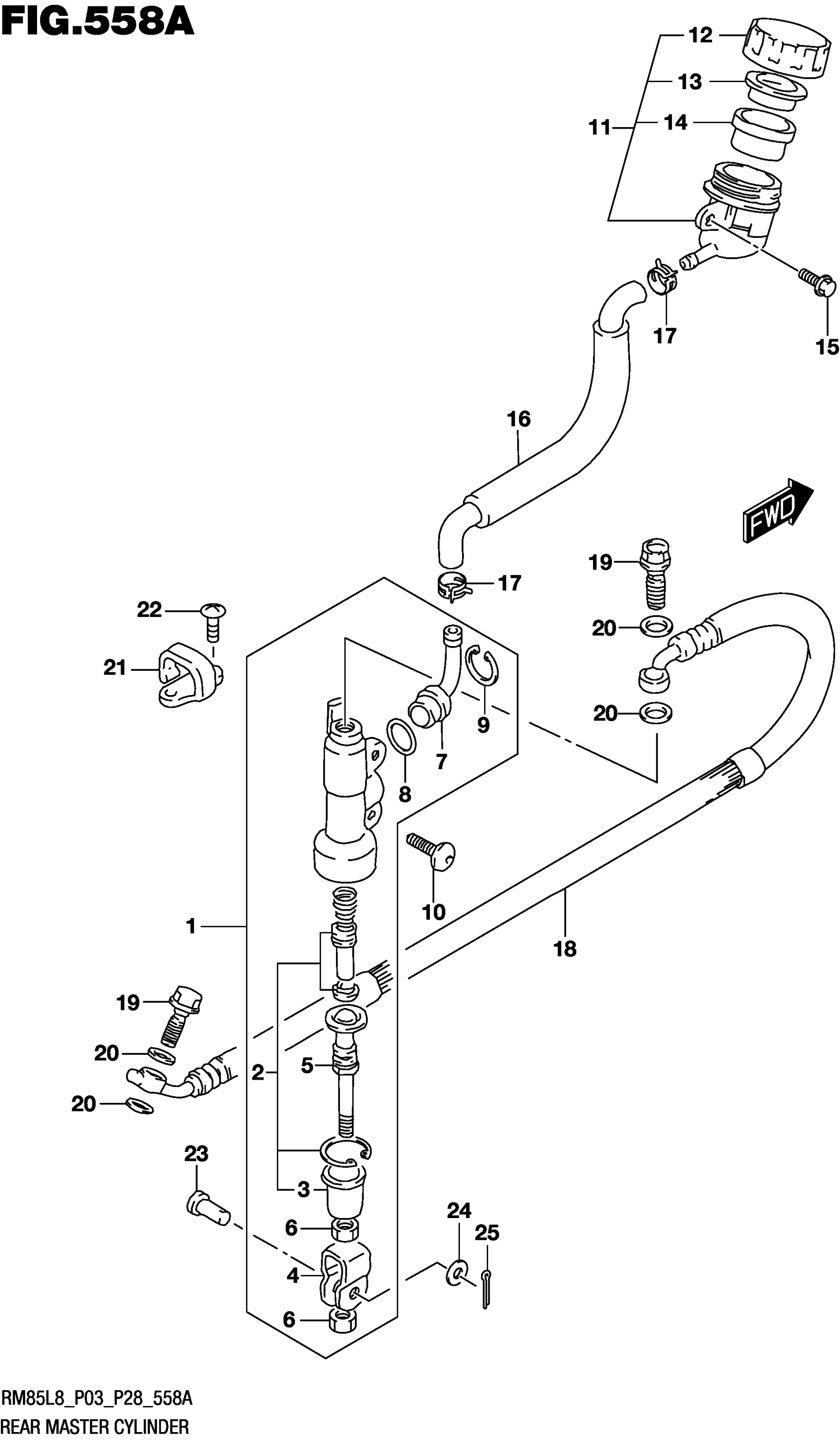

Find the part on the Rear Master Cylinder diagram for your 2018 Suzuki RM85L8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Suzuki RM85L8 Rear Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER ASSY,REAR MASTER

69600-03B00

1
Out of stock

2

.PISTON/CUP SET This part replaces 69600-04820.

69600-04821

1
Out of stock

3

.BOOT

69691-00A00

1
Out of stock

4

.YOKE

69692-37F20

1
Out of stock

5

.ROD,PUSH

69670-40A00

1
Out of stock

6

.NUT

69693-05A00

2
Out of stock

7

.CONNECTOR

69672-00B20

1
Out of stock

8

.O-RING

69686-34200

1
Out of stock

9

.CIRCLIP

69674-00B20

1
Out of stock

10

SCREW (6X16)

09139-06139

2
Out of stock

11

TANK ASSY,REAR BRAKE RESERVOI

69740-03D00

1
Out of stock

12

.CAP

69669-03D00

1
Out of stock

13

.PLATE

69668-00B20

1
Out of stock

14

.DIAPHRAGM

69667-00B20

1
Out of stock

15

BOLT

01547-0612A

1
Out of stock

16

HOSE,RESERVOIR TANK

69731-02B50

1
Out of stock

17

CLAMP RESERVOIR HOSE

69735-00B20

2
Out of stock

18

HOSE,REAR BRAKE

69480-03B60

1
Out of stock

19

UNION (10X1.25X22)

09360-10062

2
Out of stock

20

WASHER (10X15X1.5)

09161-10009

4
Out of stock

21

GUIDE, REAR BRAKE HOSE

61196-00B30

1
Out of stock

22

SCREW

02142-0510B

2
Out of stock

23

PIN (8X20)

09200-08048

1
Out of stock

24

WASHER (8.5X14X1.6)

09160-08090

1
Out of stock

25

PIN

04111-2015A

1
Out of stock
