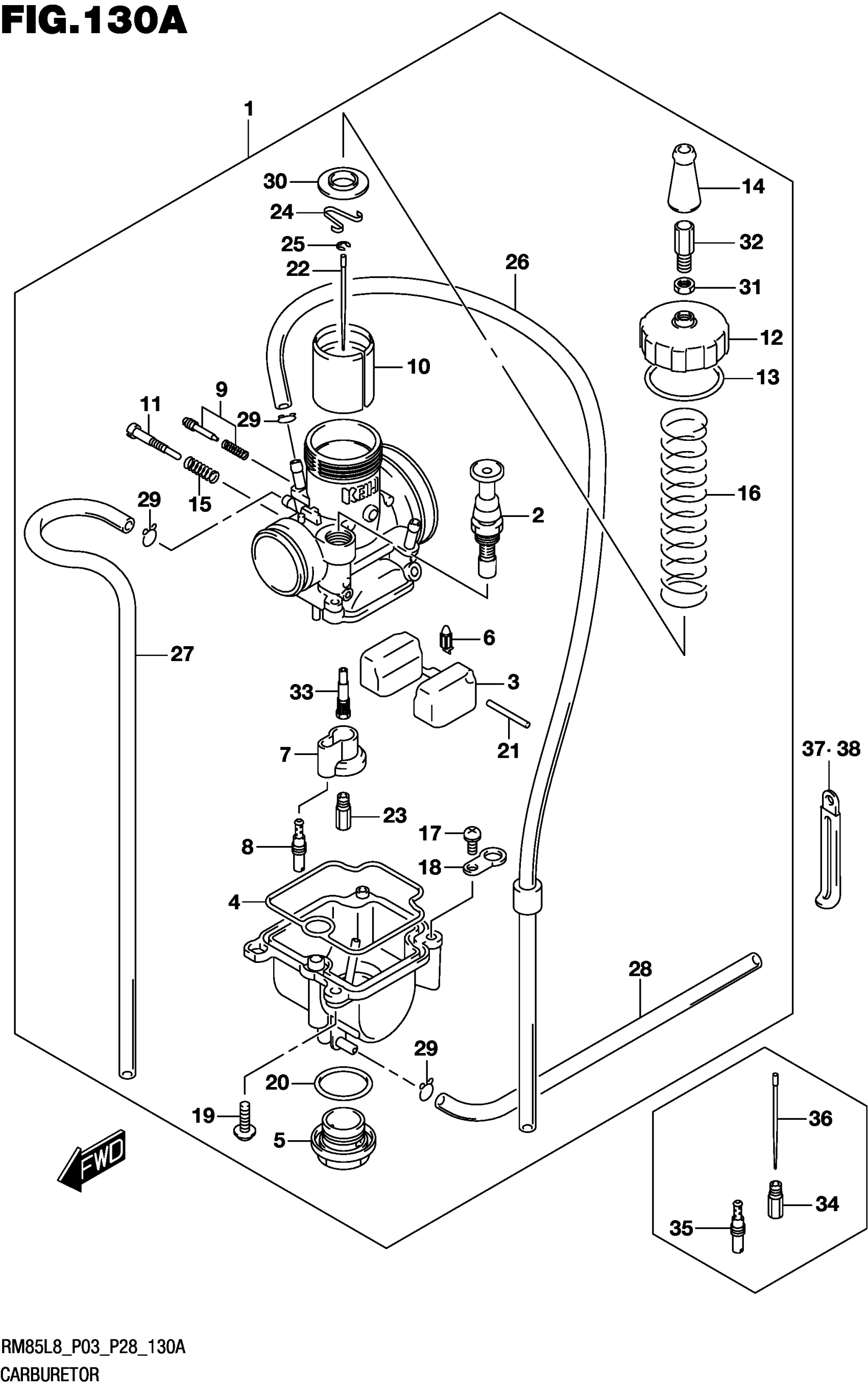

Suzuki RM85L8 (2018) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY This part replaces 13200-03B30.

13200-03B31

$196.62

2

.VALVE ASSY,STARTER

13410-03B00

$92.80

3

.FLOAT ASSY

13252-03B00

$35.40

4

.GASKET

13251-03B00

$26.83

5

.BOLT,DRAIN

13247-28E00

$21.90

6

.VALVE ASSY, NEEDLE

13370-03B01

$55.22

7

.HOLDER,JET

13331-03B00

$25.20

8

.JET,SLOW,50 (#50)

09492-50023

$17.37

9

.ADJUST SCREW SET

13269-03B00

$36.88

10

.THROTTLE VALVE

13551-03B00

$110.28

11

.SCREW,STOP

13267-03B00

$15.08

12

.COVER

13261-03B00

$36.17

13

.GASKET

13266-03B00

$6.23

14

.CAP

13681-03B00

$5.77

15

.SPRING

13268-03B00

$8.18

16

.SPRING

13573-03B00

$16.93

17

.SCREW

02112-14087

$2.38

18

.PLATE

13693-28E00

$8.18

19

.SCREW

13601-14F80

$3.58

20

.O RING

13246-28E00

$5.17

21

.PIN,FLOAT

13254-92311

$2.07

22

.NEEDLE (24NAAH)

13383-03B20

$19.72

23

.JET,MAIN,128 (#128)

09491-25020

$17.68

24

.CLIP

13398-03B00

$8.60

25

.CLIP,NEEDLE

13394-28E00

$5.25

26

.PIPE ASSY This part replaces 13686-03B00.

13686-03B01

$7.67

27

.HOSE,4X7X620 (4X7X620) | L:620->380

13686-36E00

$10.28

28

.HOSE,4X7X620 (4X7X620) | L:620->300

13686-36E00

$10.28

29

CLIP (ID:6.5)

09401-06101

$2.03

30

.PLATE

13629-03B00

$5.58

31

.NUT

13661-03B00

$5.32

32

.ADJUST BOLT

13577-03B00

$8.53

33

.JET, NEEDLE

13341-03B00

$17.92

34-1

JET,MAIN,115 (#115) | OPT

09491-23027

$18.02

34-2

JET,MAIN,118 (#118) | OPT

09491-23028

Unavailable

34-3

JET,MAIN,120 (#120) | OPT

09491-24030

$18.02

34-4

JET,MAIN,122 (#122) | OPT

09491-24031

$18.02

34-5

JET,MAIN,125 (#125) | OPT

09491-25019

$18.02

34-6

.JET,MAIN,128 (#128) | OPT

09491-25020

$17.68

34-7

JET,MAIN,130 (#130) | OPT

09491-26017

$18.02

34-8

JET,MAIN,132 (#132) | OPT

09491-26018

$18.02

34-9

JET,MAIN (#135) | OPT

09491-27016

Unavailable

34-10

JET,MAIN,138 (#138) | OPT

09491-27017

Unavailable

34-11

JET,MAIN,140 (#140) | OPT

09491-28019

Unavailable

34-12

JET,MAIN,142 (#142) | OPT

09491-28020

$18.02

34-13

JET,MAIN,145 (#145) | OPT

09491-29014

$17.00

35-1

JET,PILOT,45 (#45) | OPT

09492-45032

$17.37

35-2

JET,SLOW,48 (#48) | OPT

09492-48013

$17.37

35-3

.JET,SLOW,50 (#50) | OPT

09492-50023

$17.37

35-4

JET,SLOW (#52) | OPT

09492-52011

$17.68

35-5

JET,SLOW (#55) | OPT

09492-55017

$18.02

35-6

JET,PILOT,58 (#58) | OPT

09492-58001

$18.02

36-1

NEEDLE (24NAAF) | OPT

13383-03B00

Unavailable

36-2

NEEDLE (24NAAG) | OPT

13383-03B10

Unavailable

36-3

.NEEDLE (24NAAH) | OPT

13383-03B20

$19.72

36-4

NEEDLE (24NAAJ) | OPT

13383-03B30

$20.45

36-5

NEEDLE (24NAAK) | OPT

13383-03B40

$20.45

36-6

NEEDLE (24NCDF) | OPT

13383-03B50

Unavailable

36-7

NEEDLE (24NCDG) | OPT

13383-03B60

Unavailable

36-8

NEEDLE (24NCDH) | OPT

13383-03B70

Unavailable

36-9

NEEDLE (24NCDJ) | OPT

13383-03B80

Unavailable

36-10

NEEDLE (24NCDK) | OPT

13383-03B90

Unavailable

37

CLAMP (L:45)

09404-06429

$1.83

38

CLAMP (L:65) This part replaces 09404-08418.

09404-08421

$2.07
