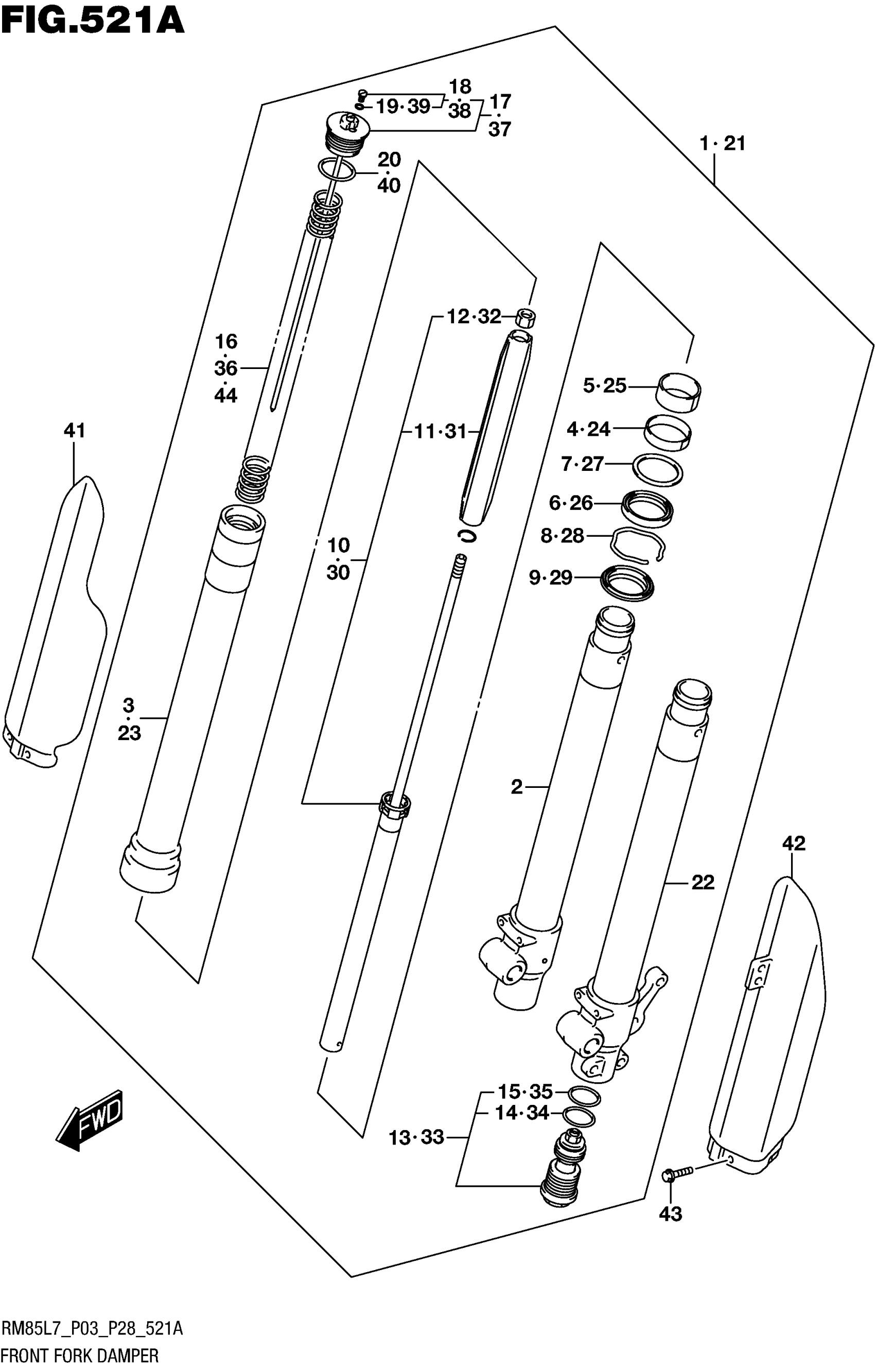

Suzuki RM85L7 (2017) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-03B70

Unavailable

2

.TUBE, INNER RH

51110-03B30

Unavailable

3

.TUBE, OUTER

51130-03B30

$760.17

4

.BUSH, GUIDE

51167-03B30

$20.80

5

.BUSH, SLIDE

51121-03B30

$18.75

6

.SEAL, OIL

51153-03B30

$18.51

7

.SPACER, SEAL

51168-38A00

$6.72

8

.RING, STOPPER

51156-03B30

$6.17

9

.SEAL, DUST

51173-03B30

$29.10

10

.CYLINDER

51190-03B70

Unavailable

11

..GUIDE, SPRING

51172-03B30

$29.33

12

..NUT

51129-03B30

Unavailable

13

.BOLT, CENTER

51170-03B70

Unavailable

14

..O RING

51177-36E20

$4.10

15

..O RING

51175-03B30

$6.05

16

.SPRING, FRONT (K=0.28)

51171-03B50

Unavailable

17

.BOLT, FORK

51351-03B70

$174.33

18

..BOLT, PLUG

51357-27C40

$10.45

19

...O RING

51117-19C10

$4.10

20

.O RING

51117-37F80

$6.93

21

DAMPER ASSY, FRONT FORK LH

51104-03B70

Unavailable

22

.TUBE, INNER LH

51120-03B70

Unavailable

23

.TUBE, OUTER

51130-03B30

$760.17

24

.BUSH, GUIDE

51167-03B30

$20.80

25

.BUSH, SLIDE

51121-03B30

$18.75

26

.SEAL, OIL

51153-03B30

$18.51

27

.SPACER, SEAL

51168-38A00

$6.72

28

.RING, STOPPER

51156-03B30

$6.17

29

.SEAL, DUST

51173-03B30

$29.10

30

.CYLINDER

51190-03B70

Unavailable

31

..GUIDE, SPRING

51172-03B30

$29.33

32

..NUT

51129-03B30

Unavailable

33

.BOLT, CENTER

51170-03B70

Unavailable

34

..O RING

51177-36E20

$4.10

35

..O RING

51175-03B30

$6.05

36

.SPRING, FRONT (K=0.28)

51171-03B50

Unavailable

37

.BOLT, FORK

51351-03B70

$174.33

38

..BOLT, PLUG

51357-27C40

$10.45

39

...O RING

51117-19C10

$4.10

40

.O RING

51117-37F80

$6.93

41

PROTECTOR, FRONT FORK, RH

51501-03B20

$82.33

42

PROTECTOR, FRONT FORK, LH

51511-03B30

$82.33

43

BOLT (6X10)

01547-0610A

$2.45

44-1

SPRING, FRONT (SOFT K=0.26) | OPT

51171-03B30

Unavailable

44-2

SPRING, FRONT (HARD K=0.30) | OPT

51171-03B60

Unavailable
