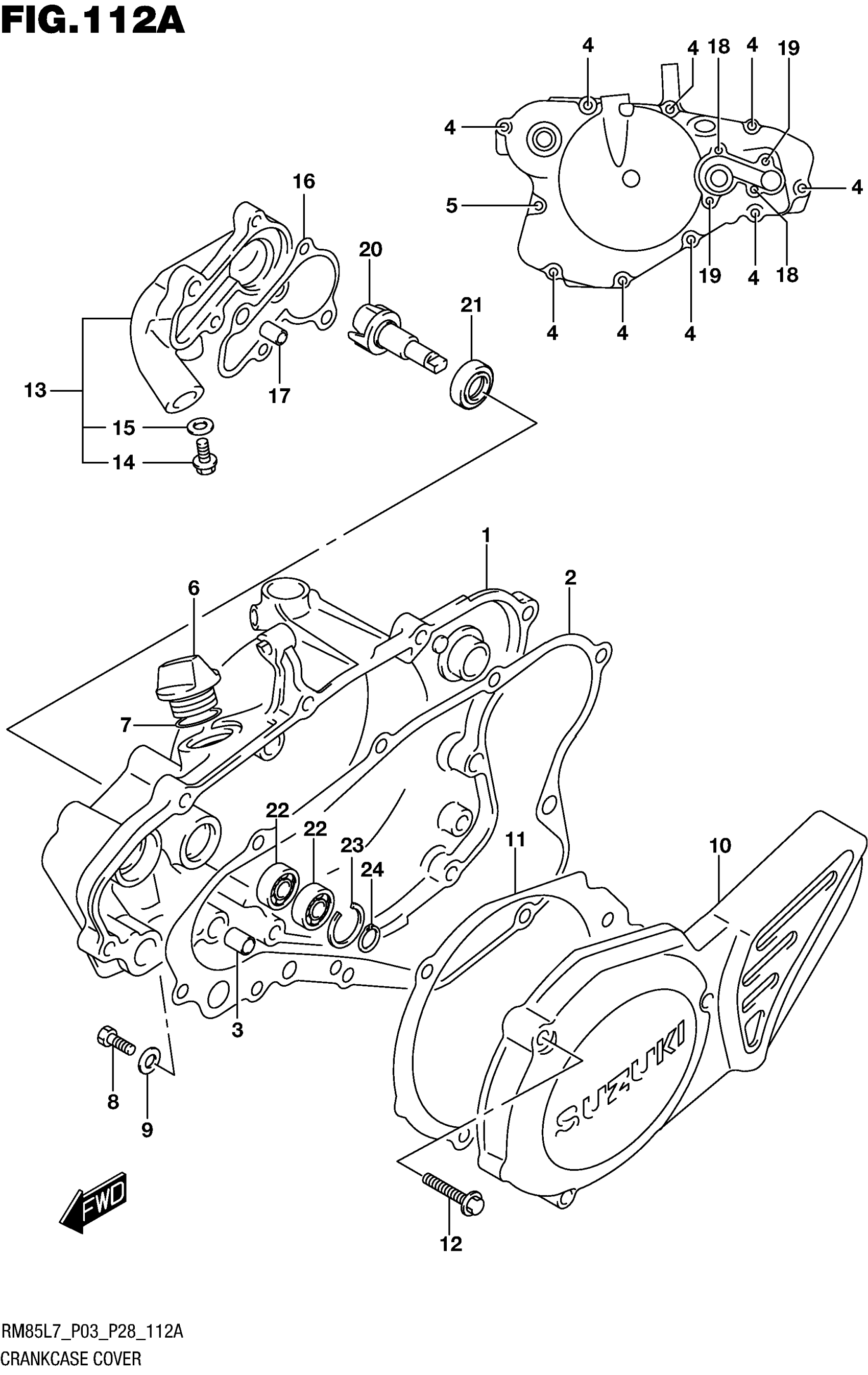

Suzuki RM85L7 (2017) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11341-03B00

$272.72

2

GASKET, CLUTCH COVER

11482-27C02

$13.88

3

PIN

04211-09129

$1.65

4

BOLT (6X25)

01547-0625A

$2.01

5

BOLT (6X35)

01547-0635A

$2.30

6

PLUG,ENGINE OIL FILLER

11971-25D00

$5.11

7

O RING (D:3.1,ID:16.8)

09280-17003

$1.65

8

.BOLT

07120-0610A

$2.30

9

GASKET (6.2X11X1.2)

09168-06004

$1.49

10

COVER, MAGNETO

11351-03B00

$83.65

11

GASKET, MAGNETO COVER

11483-03B00

$7.58

12

BOLT (6X25)

01547-0625A

$2.01

13

CASE ASSY, WATER PUMP

17410-03B00

$121.55

14

.BOLT, DRAIN

17415-43D00

$4.35

15

.GASKET

17413-28C10

$2.14

16

GASKET, WATER PUMP CASE

17431-02B42

$6.93

17

PIN

04211-09129

$1.65

18

BOLT

01547-0620A

$2.03

19

BOLT

01547-0630A

$2.32

20

IMPELLER, WATER PUMP

17491-02B41

$27.75

21

OIL SEAL, WATER PUMP

17461-03B00

$8.26

22

BEARING

08113-06980

$12.67

23

CIRCLIP

09381-19003

$2.11

24

CIRCLIP

08331-31089

$1.78
