Description

Price

1

GEAR ASSY, PRIMARY DRIVEN | NT:62/16

21200-02B41

$263.80

2

SHIM (20X32X1)

09181-20223

$2.92

3

LOCK WASHER

09167-20024

$3.58

4

BEARING (20X25X26)

09263-20023

$19.98

5

HUB, CLUTCH SLEEVE

21410-01B01

$70.49

6

PLATE, CLUTCH DRIVE (T:3.0)

21441-13A01

$14.73

7

PLATE, CLUTCH DRIVEN (T:2.0)

21451-36200

$7.58

8

DISC, PRESSURE

21462-02B41

$28.95

9

SPRING

09440-16017

$4.66

10

BOLT (5X20)

09116-05021

$2.19

11

NUT

09140-16027

$6.70

12

WASHER

09169-16005

$2.35

13

RACK,CLUTCH RELEASE

23165-44B01

$24.92

14

BEARING (10X22X2.8)

09263-10002

$10.19

15

PINION,CLUTCH RELEASE

23261-20A01

$52.98

16

BOLT (6X10)

09135-06501

$3.04

17

GASKET (6.2X11X1.2)

09168-06004

$1.49

18

OIL SEAL (10X17X5)

09285-10004

$3.37

19

ARM, CLUTCH RELEASE

23271-20902

$29.60

20

BOLT (6X16)

01547-0616A

$2.03

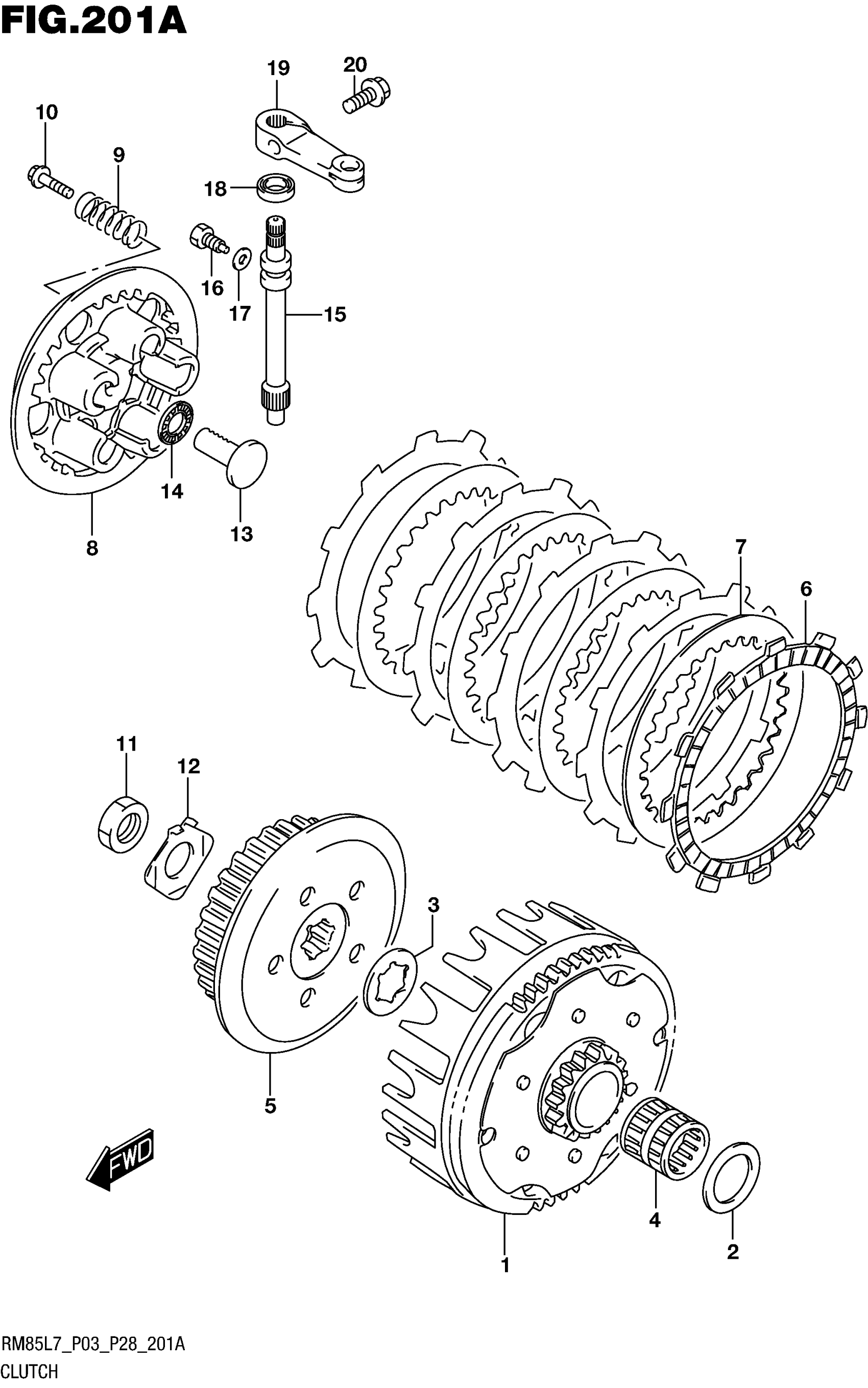

Suzuki RM85L7 (2017) CLUTCH Diagram
