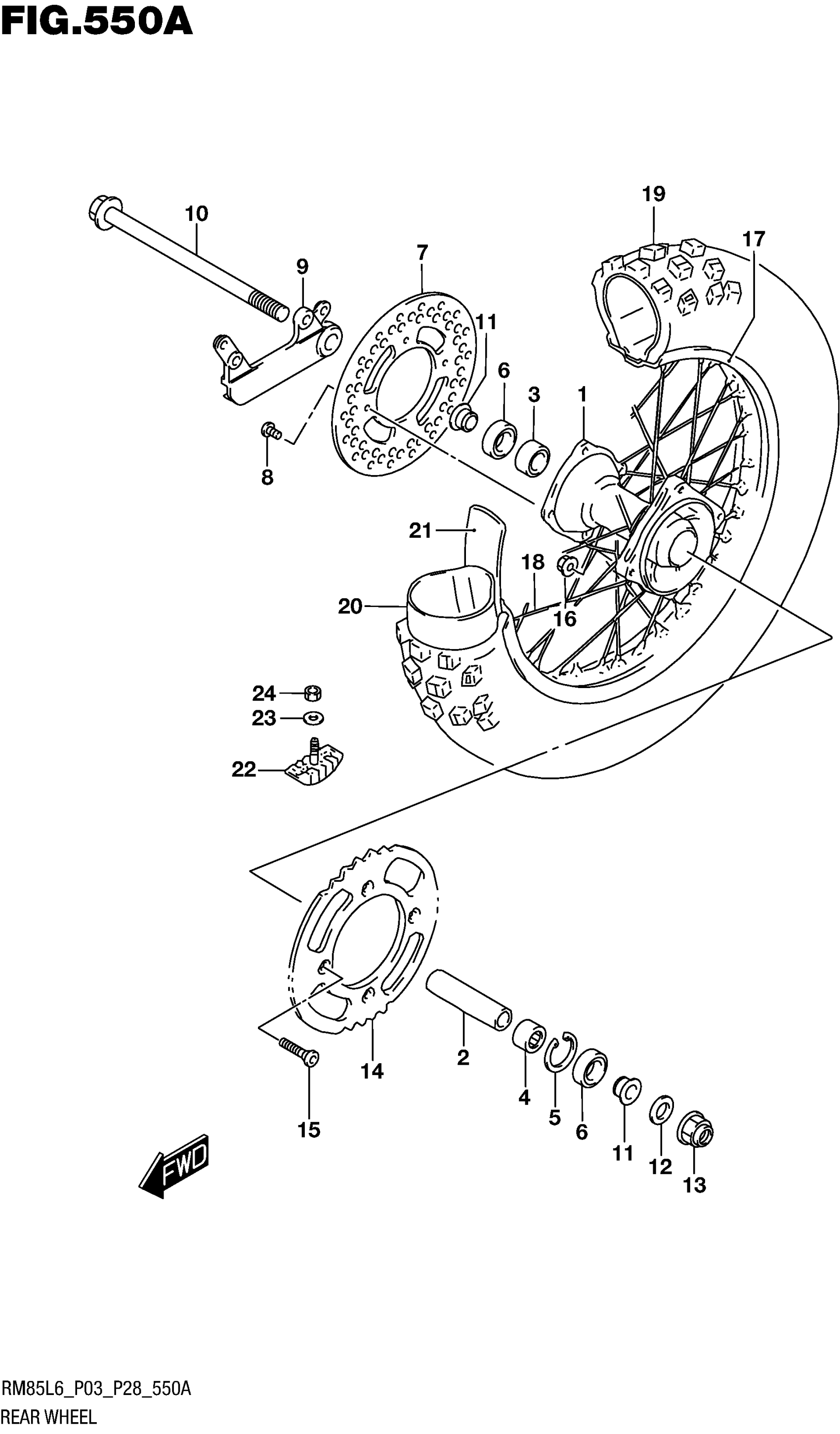

Suzuki RM85L6 (2016) REAR WHEEL (RM85L6 P03) Diagram

#

Description
Price

1

HUB, REAR WHEEL

64111-02B43

$322.15

2

SPACER, REAR HUB BEARING

64731-02B40

$27.55

3

BEARING

08123-60027

$25.32

4

BEARING (15X35X11)

09262-15021

$23.75

5

CIRCLIP

08331-41359

$2.28

6

OIL SEAL (20X35X7)

09283-20024

$4.68

7

DISC, REAR BRAKE

69211-03B00

$224.25

8

SCREW

02122-0612B

$1.86

9

BRACKET, REAR CALIPER

69721-03B10

$193.63

10

AXLE, REAR

64711-03B70

$33.97

11

SPACER, AXLE

64741-03B80

$29.78

12

WASHER (14.5X30X3.2)

09160-14062

$2.79

13

NUT

08319-3114A

$8.84

14-1

SPROCKET, REAR (NT:47)

64511-03B00

$141.76

14-2

SPROCKET, REAR (NT:46) | OPT

64511-03B10

$147.17

14-3

SPROCKET, REAR (NT:48) | OPT

64511-03B20

$147.17

14-4

SPROCKET, REAR (NT:49) | OPT

64511-03B30

Unavailable

15

BOLT (8X30.5)

09120-08010

$2.39

16

NUT

09159-08067

$5.03

17

RIM, WHEEL (1.60X14 AL WHT)

65311-02B50

$345.75

18

SPOKE ASSY, REAR WHEEL

65320-02B60

$70.62

19

TIRE, REAR

65110-02B70

Unavailable

19

(90/100-14 49M D737)(DUNLOP)

65110-02B70

Unavailable

20

TUBE ASSY, INNER

65200-02B70

$52.77

21

PROTECTOR, INNER TUBE

65261-02B40

$7.48

22

STOPPER, BEAD

65270-43D00

$66.32

23

WASHER

08322-0108B

$2.37

24

NUT

08310-0008B

$2.95
