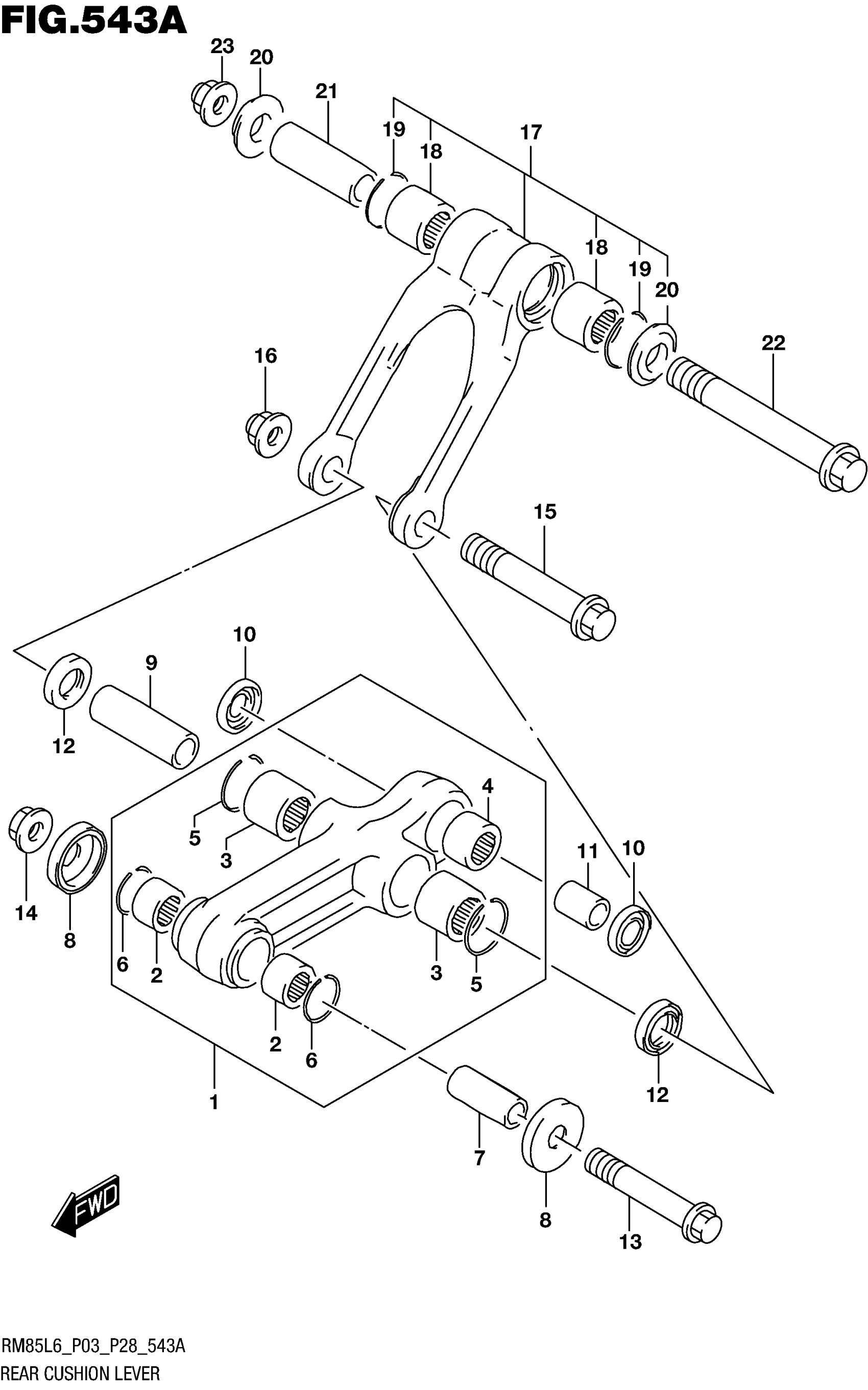

Suzuki RM85L6 (2016) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION

62600-03890

Unavailable

2

.BEARING (14X20X12)

09263-14027

$12.21

3

.BEARING This part replaces 09263-17039.

09263-17058

$14.85

4

.BEARING (20X26X12)

09263-20083

$22.49

5

.RING, BEARING STOPPER LEVER

62657-34A01

$2.06

6

.CIRCLIP

09381-20004

$1.64

7

SPACER, RR CUSHION LEVER FR

62317-02B40

$20.33

8

OIL SEAL This part replaces 62162-03B00.

62162-03B01

$10.58

9

SPACER, RR CUSHION LEVER CTR

62626-02B40

$23.08

10

OIL SEAL (20X26X4.5)

09284-20001

$4.31

11

SPACER, RR CUSHION LEVER RR

62684-36E00

$18.70

12

.SEAL,OIL (17X24X3) This part replaces 09285-17001.

09285-17007

$3.38

13

BOLT, RR CUSHION LEVER FRONT

62658-02B40

$10.35

14

NUT

09159-10115

$3.21

15

BOLT, RR CUSHION LEVER CENTER

62621-02B40

$20.33

16

NUT

08319-3112A

$3.38

17

ROD SET, CUSHION LEVER

62600-03880

Unavailable

18

.BEARING This part replaces 09263-17039.

09263-17058

$14.85

19

.RING, BEARING STOPPER LEVER

62657-34A01

$2.06

20

SPACER, RR CUSHION ROD SIDE

62647-02B40

$9.25

21

SPACER, RR CUSHION ROD

62646-02B40

$23.08

22

BOLT, RR CUSHION ROD

62622-02B40

$20.33

23

NUT

08319-3112A

$3.38
