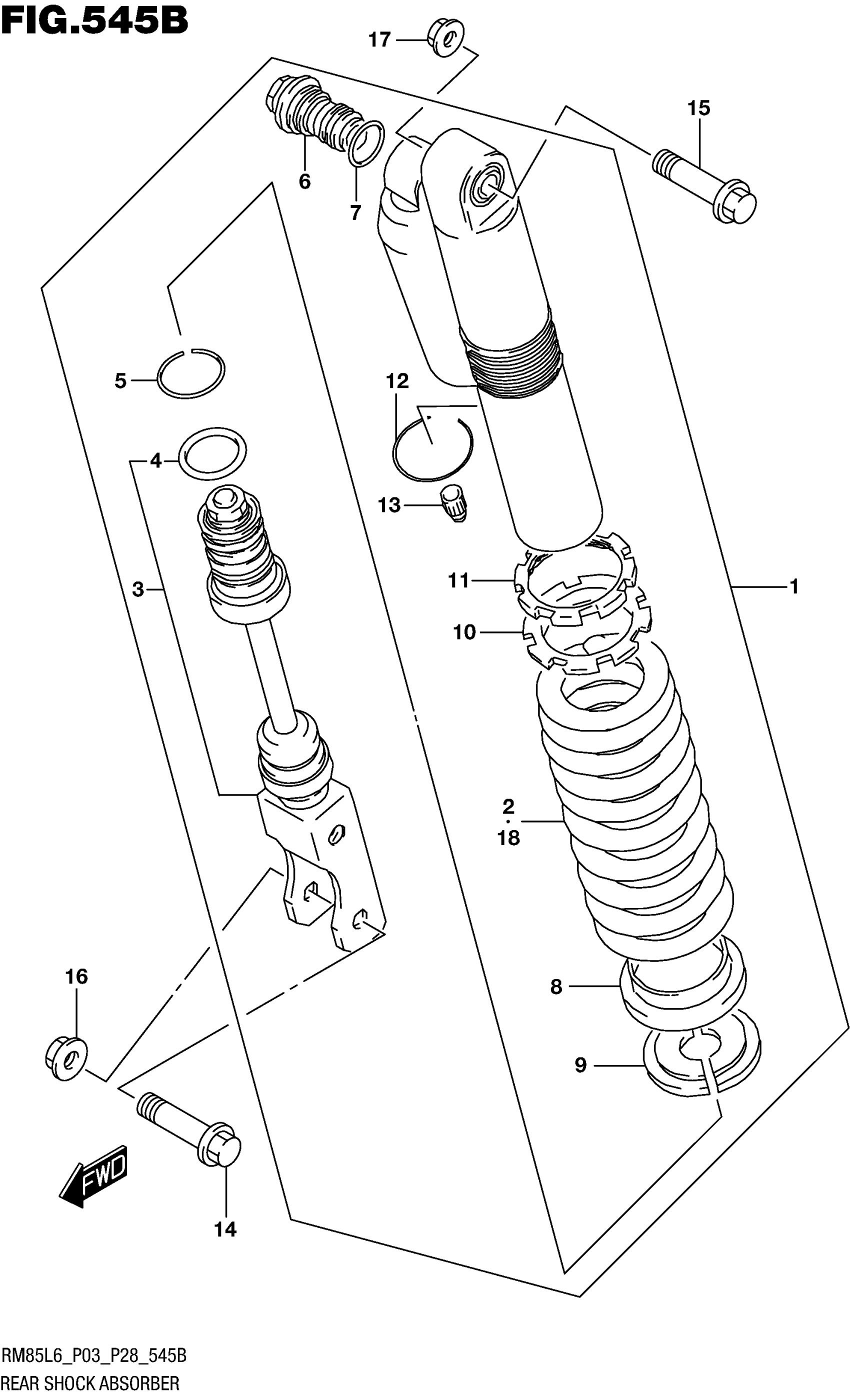

Suzuki RM85L6 (2016) REAR SHOCK ABSORBER (RM85L6 P28) Diagram

#

Description
Price

1

ABSORBER,RR SHOCK (RED) This part replaces 62100-03BH0-YKS.

62100-03BH1-YKS

$857.42

2

.SPRING, REAR (K=4.6)

62211-03B90

Unavailable

3

.ROD, PISTON

62120-03BB0

Unavailable

4

..O RING

62153-03BB0

Unavailable

5

.RING, ROD STOPPER

62279-03BB0

Unavailable

6

.BOLT, PLUG

62130-03B30

Unavailable

7

..O RING

51177-36E20

$4.10

8

.SEAT, SPRING

62249-17C00

$29.83

9

.SEAT STOPPER, SPRING

62225-17C00

$32.67

10

.ADJUSTER, SPRING

62191-19C00

Unavailable

11

.NUT, SPRING ADJUSTER

62194-03BB0

Unavailable

12

.RING, STOPPER

62278-03B30

Unavailable

13

.CAP

51294-20400

$7.37

14

BOLT,RR SHOCK ABSORBER LWR

62221-37F30

$7.48

15

BOLT, UPPER

62648-14500

$4.34

16

NUT | LOWER

09159-10067

$6.11

17

NUT | UPPER

09159-10115

$3.55

18-1

SPRING, REAR (SOFT K=4.4) | OPT

62211-03B80

Unavailable

18-2

SPRING, REAR (HARD K=4.8) | OPT

62211-03BA0

Unavailable
