Description

Price

1

CYLINDER ASSY, REAR MASTER

69600-03B00

Unavailable

2

.PISTON/CUP SET This part replaces 69600-04820.

69600-04821

$32.27

3

.BOOT

69691-00A00

$5.30

4

.YOKE

69692-37F20

$21.35

5

.ROD, PUSH

69670-40A00

$25.62

6

.NUT

69693-05A00

$1.96

7

.CONNECTOR

69672-00B20

$7.01

8

.O RING

69686-34200

$2.93

9

.CIRCLIP

69674-00B20

$3.97

10

SCREW (6X16)

09139-06139

$3.23

11

TANK ASSY, RESERVOIR

69740-03D00

$75.90

12

.CAP

69669-03D00

$22.65

13

.PLATE

69668-00B20

$7.67

14

.DIAPHRAGM

69667-00B20

$15.68

15

BOLT

01547-0612A

$2.03

16

HOSE, RESERVOIR TANK

69731-02B50

$36.08

17

CLAMP

69735-00B20

$4.10

18

HOSE, REAR BRAKE

69480-03B60

$113.64

19

UNION

09360-10062

$6.43

20

WASHER (10X15X1.5)

09161-10009

$1.84

21

GUIDE, REAR BRAKE HOSE

61196-00B30

$6.87

22

SCREW

02142-0510B

$1.78

23

PIN

09200-08048

$2.92

24

WASHER (8.5X14X1.5)

09160-08090

$2.39

25

PIN, COTTER

04111-2015A

$1.49

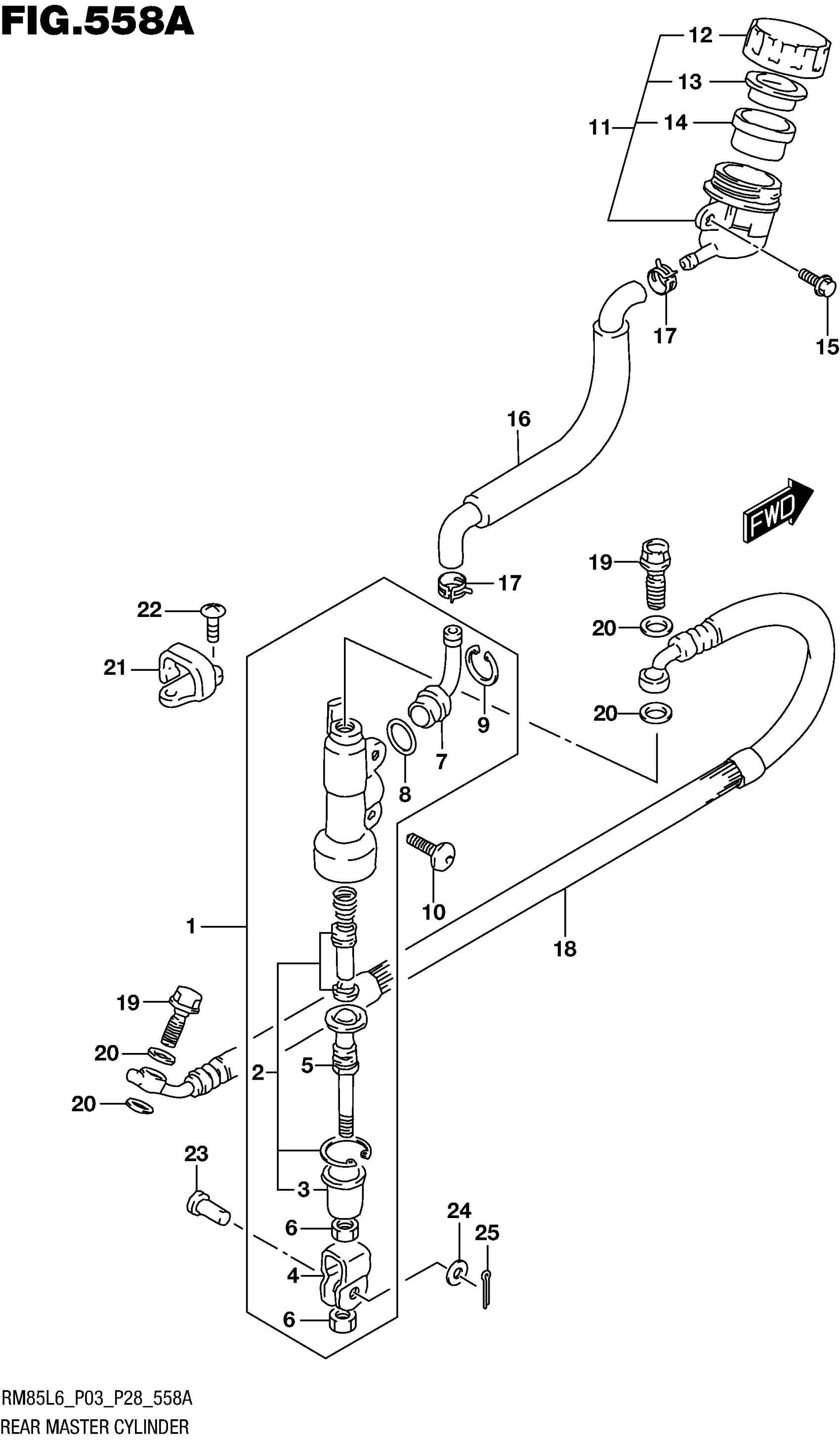

Suzuki RM85L6 (2016) REAR MASTER CYLINDER (RM85L6 P03) Diagram
