Description

Price

1

CALIPER ASSY, REAR

69100-03B10-999

$304.52

2

.PISTON SET

59300-01810

$66.87

3

..SEAL SET, PISTON

59100-04841

$9.62

4

.SPRING, PAD

59315-03B00

$17.90

5

.BOOT, AXLE

59312-36500

$5.07

6

.INSULATOR, AXLE

59313-36500

$5.99

7

.CARRIER, CALIPER

69350-03B00

$151.97

8

.GUIDE, PAD

59116-03B00

$15.17

9

.BLEEDER

59121-03B00

$20.52

10

CAP, BLEEDER This part replaces 59122-02B40.

55156-66310

$5.17

11

.PIN, PAD

69141-03B00

$23.17

12

.CLIP, PAD PIN

69142-45000

$4.34

13

PAD & SHIM SET

69100-03880

$49.90

14

.SHIM, PAD

59371-20E00

$15.13

15

BOLT (8X18)

09103-08171

$3.67

16

GUARD, CALIPER

69725-03B10

$7.52

17

BOLT

01547-0610A

$2.45

18

WASHER

08322-01067

$2.13

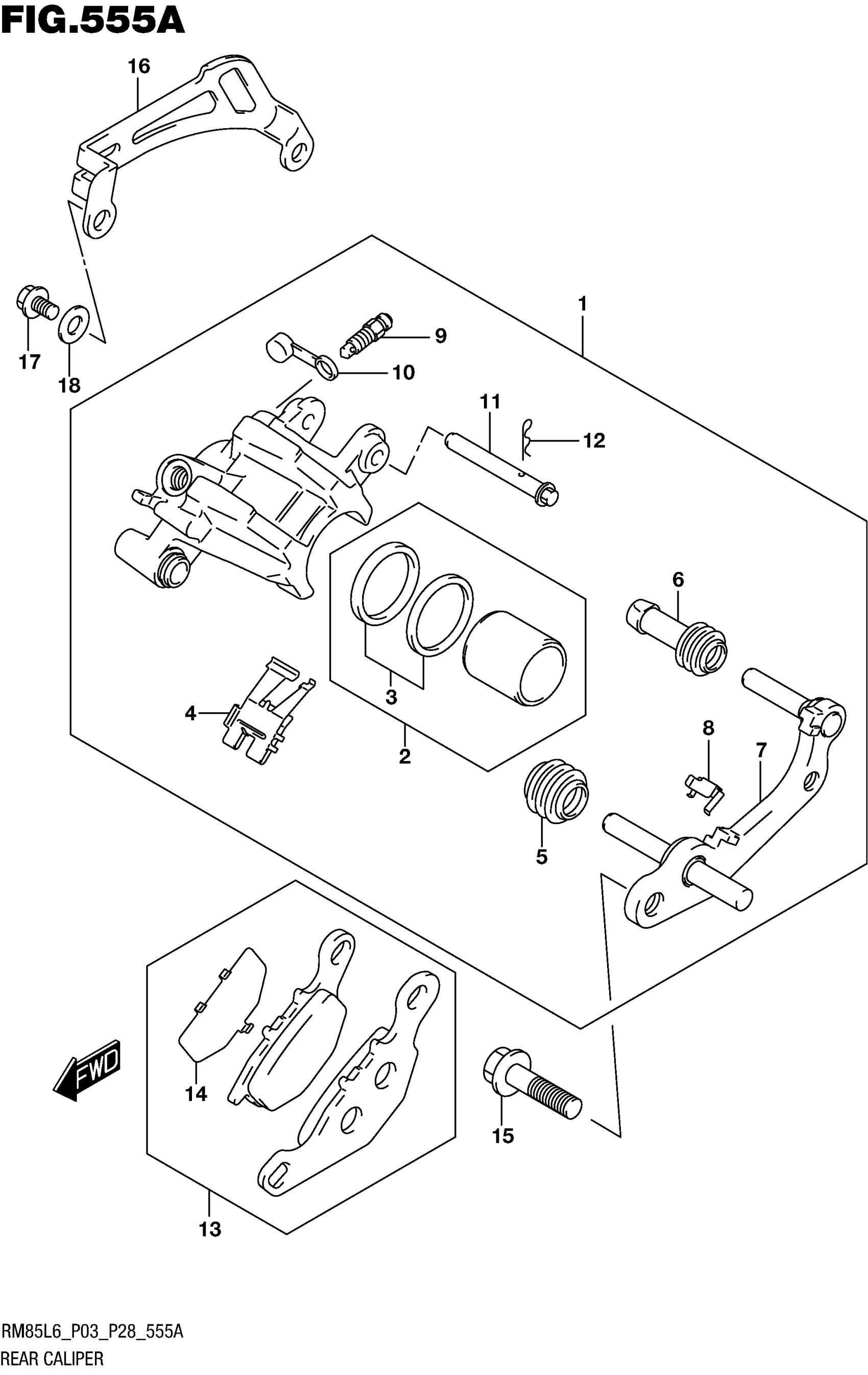

Suzuki RM85L6 (2016) REAR CALIPER Diagram
