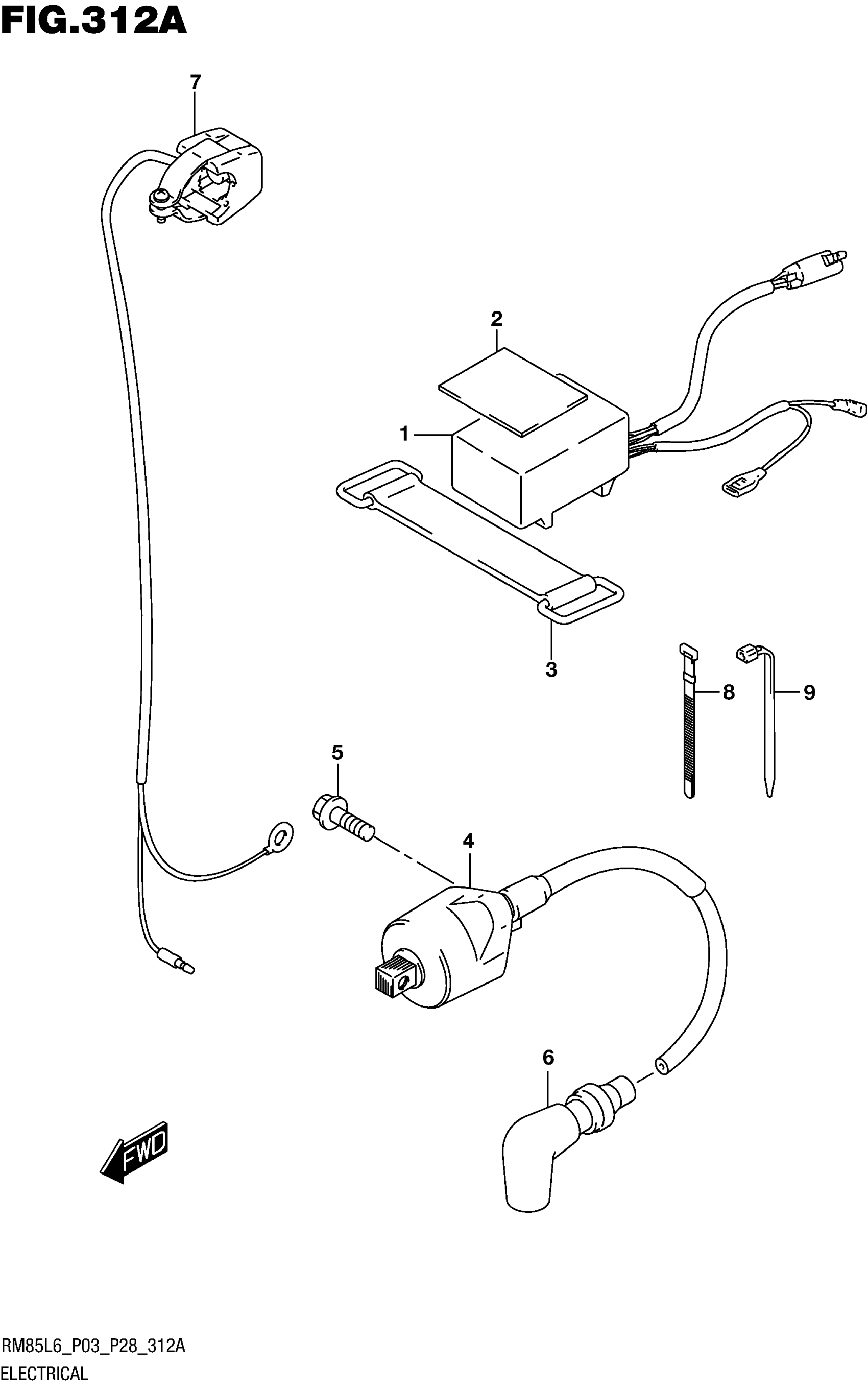

Suzuki RM85L6 (2016) ELECTRICAL Diagram

#

Description
Price

1

CDI UNIT

32900-02B31

$419.28

2

PROTECTOR, CDI UNIT | CUT AS REQUIRED

33652-36000

$2.30

3

BAND

09462-00034

$4.24

4

COIL ASSY, IGNITION

33410-03B00

$119.18

5

BOLT

01547-0620A

$2.03

6

CAP, SPARK PLUG

33510-20A02

$24.39

7

SWITCH ASSY, ENGINE STOP

37820-14X50

$48.54

8

CLAMP(L:120)

09407-12402

$3.04

9

CLAMP (L:90)

09407-11402

$1.80
