Description

Price

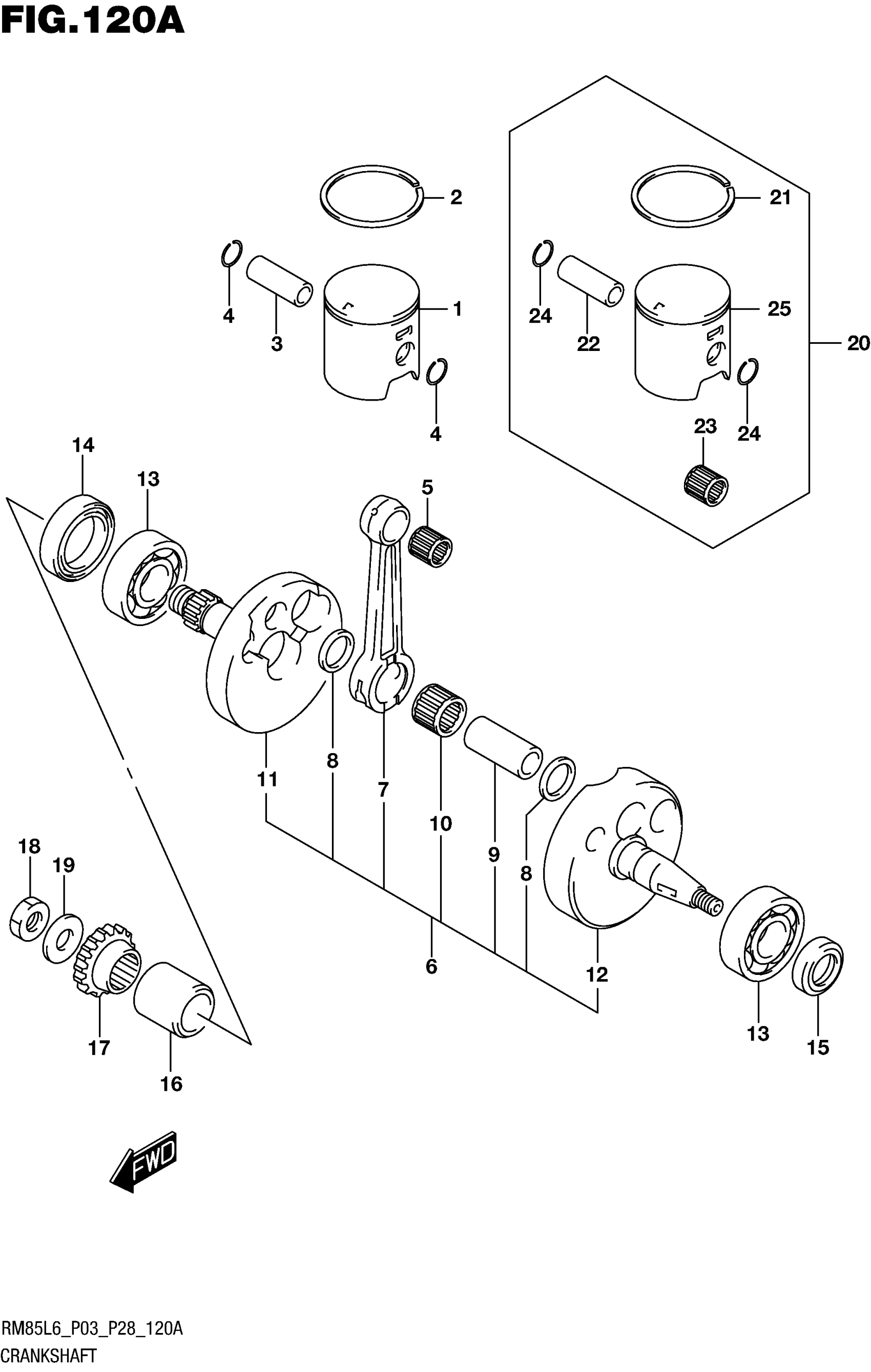

1

PISTON

12110-03B20-0F0

$73.07

2

RING, PISTON

12141-03B00

$23.89

3

PIN, PISTON

12151-20910

$15.70

4

RING

09381-14001

$1.49

5

BEARING (14X18X16)

09263-14016

$13.52

6

CRANKSHAFT ASSY

12200-03B20

$569.23

7

.CONNROD

12161-03B02

$94.45

8

.WASHER (20X34X1.5)

09160-20082

$8.12

9

.PIN, CRANK

12211-02B50

$36.17

10

.BEARING (20X26X14)

09263-20088

$61.28

11

.CRANKSHAFT, RH

12221-03B01

Unavailable

12

.CRANKSHAFT, LH

12261-03B01

Unavailable

13

BEARING (20X52X15)

09262-20082

$30.63

14

SEAL,OIL (30X40X7) This part replaces 09283-30061.

09283-30076

$15.32

15

SEAL,OIL This part replaces 09283-18007.

09283-18010

$5.94

16

SPACER, PRIMARY DRIVE GEAR

12359-27C30

$19.72

17

GEAR, PRIMARY DRIVE (NT:18)

21111-02B41

$62.32

18

NUT

09140-16019

$3.70

19

WASHER

09164-16002

$3.16

20

PISTON KIT | OPT

12100-03850

$131.47

21

.RING, PISTON | OPT
