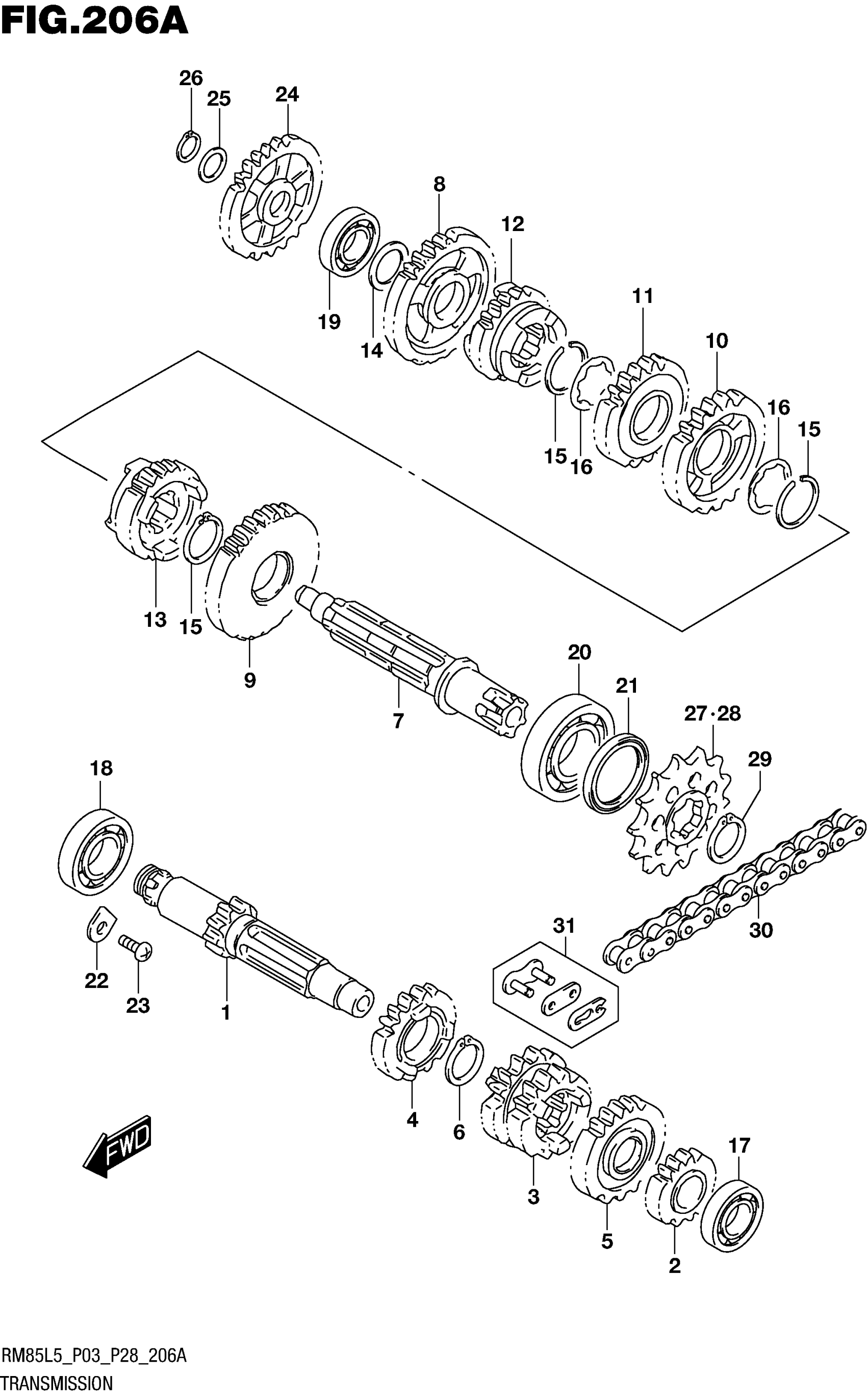

Suzuki RM85L5 (2015) TRANSMISSION (RM85L5 P03) Diagram

#

Description
Price

1

SHAFT,CNTR (NT:11)

24121-02B42

$173.58

2

GEAR, 2ND DRIVE (NT:15)

24221-02B02

$55.00

3

GEAR, 3/4 DRIVE (NT:14/15)

24231-02B03

$109.08

4

GEAR, 5TH DRIVE (NT:18)

24251-02B02

$80.52

5

GEAR, 6TH DRIVE (NT:22)

24260-02B01

$87.70

6

CIRCLIP

09380-20009

$2.20

7

DRIVE SHAFT

24131-02B01

$174.33

8

GEAR, 1ST DRIVEN (NT:28)

24311-02B02

$113.25

9

GEAR, 2ND DRIVEN (NT:29)

24321-02B02

$113.25

10

GEAR, 3RD DRIVEN (NT:22)

24331-03B02

$71.33

11

GEAR, 4TH DRIVEN (NT:20)

24341-03B02

$80.52

12

GEAR, 5TH DRIVEN (NT:21)

24351-02B02

$87.70

13

GEAR, 6TH DRIVEN (NT:23)

24361-02B03

$74.56

14

SHIM (15X26X1)

09181-15195

$2.57

15

CIRCLIP

09380-22006

$3.10

16

LOCK WASHER

09167-22011

$3.23

17

BEARING

08113-62027

$14.40

18

BEARING (20X42X12)

09262-20106

$29.35

19

BEARING

08113-62027

$14.40

20

BEARING (20X47X14)

09262-20069

$23.28

21

OIL SEAL (20X35X5)

09283-20057

$6.02

22

RETAINER, BEARING

24741-21A00

$2.81

23

SCREW

02112-0612A

$1.49

24

GEAR, KICK STARTER IDLE | NT:24

26260-02B40

$76.63

25

SHIM (12X20X0.5)

09181-12158

$2.26

26

CIRCLIP

08331-3112A

$1.78

27

SPROCKET, ENGINE (NT:14)

27511-20421

$23.32

28

SPROCKET, ENGINE (NT:13) | OPT

27511-20401

$26.90

29

CIRCLIP

09380-20009

$2.20

30

CHAIN ASSY, DRIVE (118L)

27600-05350

$183.50

31

JOINT SET, CHAIN | OPT

27620-03B00

$11.18
