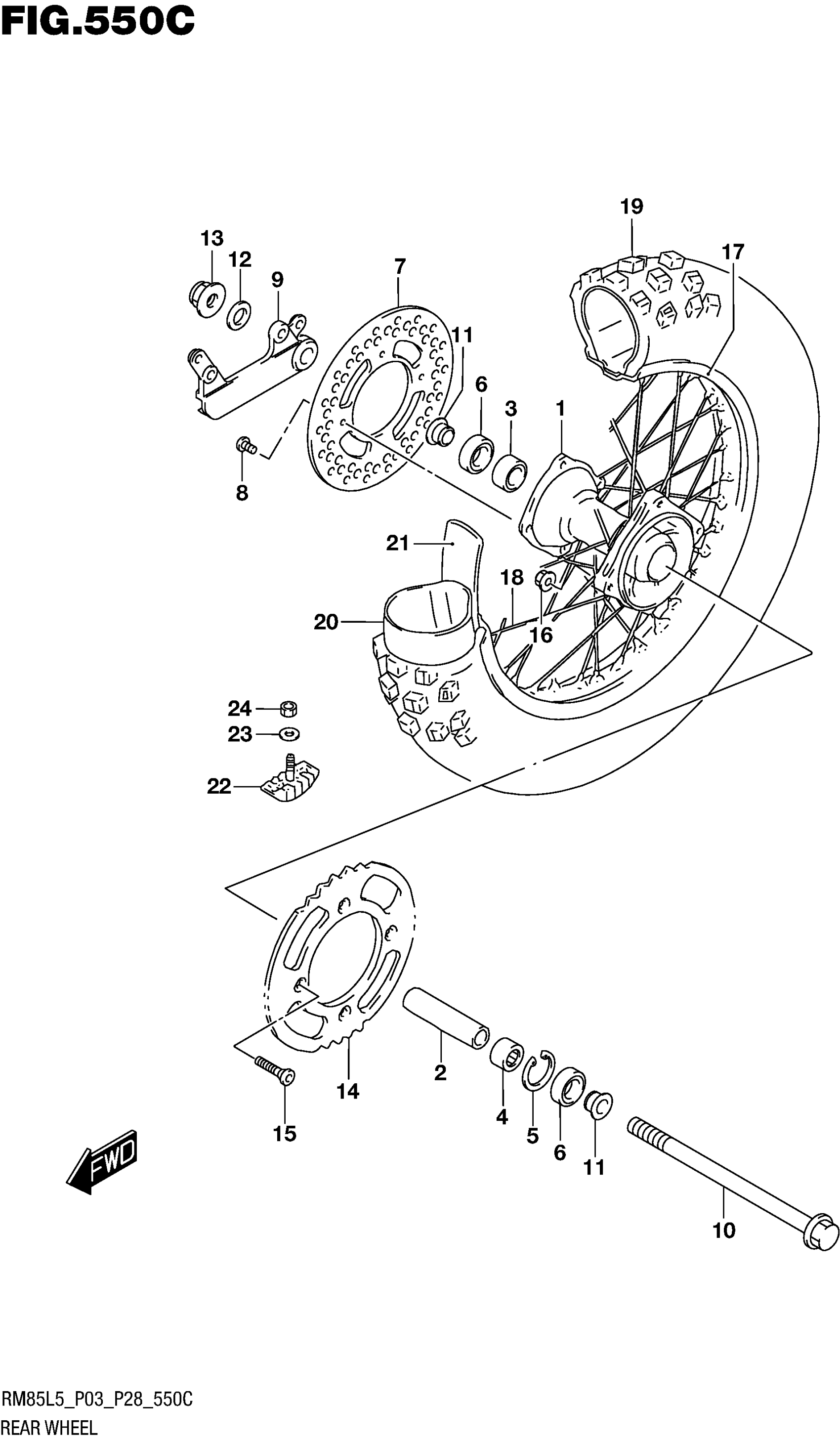

Suzuki RM85L5 (2015) REAR WHEEL (RM85LL5 P28) Diagram

#

Description
Price

1

HUB, REAR WHEEL

64111-02B43

$289.50

2

SPACER, REAR HUB BEARING

64731-02B40

$20.76

3

BEARING

08123-60027

$23.62

4

BEARING (15X35X11)

09262-15021

$21.85

5

CIRCLIP

08331-41359

$2.26

6

OIL SEAL (20X35X7)

09283-20024

$5.11

7

DISC, REAR BRAKE

69211-03B00

$201.52

8

SCREW

02122-0612B

$1.84

9

BRACKET, REAR CALIPER

69721-03B10

$174.02

10

AXLE, REAR

64711-03B70

$37.11

11

SPACER, AXLE

64741-03B80

$26.38

12

WASHER (14.5X30X3.2)

09160-14062

$2.81

13

NUT

08319-3114A

$9.66

14

SPROCKET, REAR (NT:47)

64511-03B00

$127.38

14

SPROCKET, REAR (NT:46) | OPT

64511-03B10

$132.25

14

SPROCKET, REAR (NT:48) | OPT

64511-03B20

$132.25

14

SPROCKET, REAR (NT:49) | OPT

64511-03B30

Unavailable

15

BOLT (8X30.5)

09120-08010

$2.36

16

NUT

09159-08067

$5.57

17

RIM, WHEEL (1.60X16 AL WHT)

65311-03B60

Unavailable

18

SPOKE ASSY, REAR WHEEL

65320-03B60

$74.28

19

TIRE, REAR (90/100-16 52M D737)(DUNLOP)

65110-03BA0

Unavailable

20

TUBE ASSY, INNER

65200-03B90

$46.70

21

PROTECTOR, INNER TUBE

65261-03B50

$6.97

22

STOPPER, BEAD

65270-43D00

$58.75

23

WASHER

08322-0108B

$2.34

24

NUT

08310-0008B

$2.70
