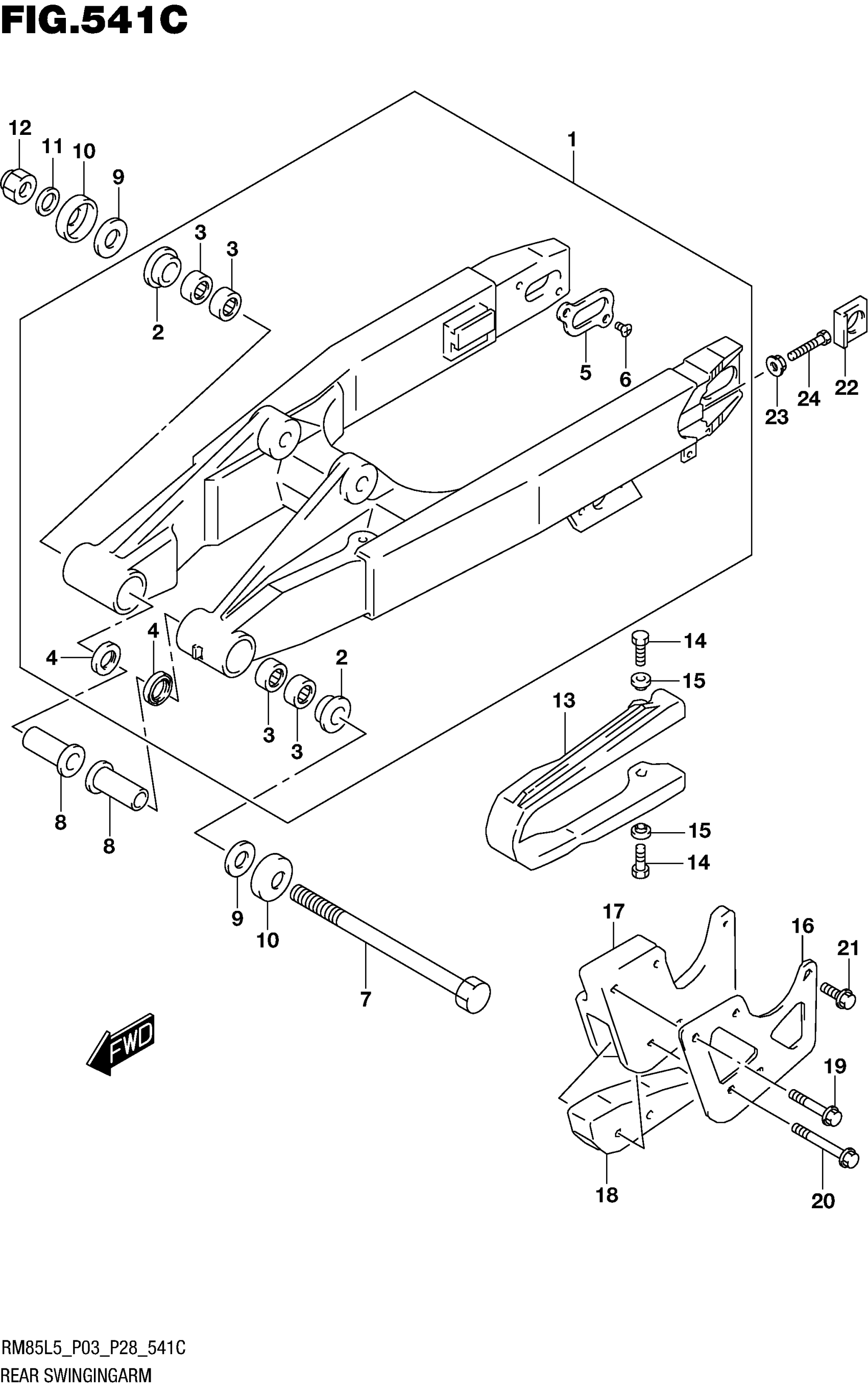

Suzuki RM85L5 (2015) REAR SWINGINGARM (RM85LL5 P28) Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR

61000-03BE0

$1,167.83

2

BUSHING

61261-02B00

$25.08

3

.BEARING This part replaces 09263-17039.

09263-17058

$15.30

4

.SEAL,OIL (17X24X3) This part replaces 09285-17001.

09285-17007

$3.49

5

PLATE, SWGARM RR

61128-03BD0

$21.93

6

SCREW (5X8)

09126-05009

$2.38

7

SHAFT, RR SWGARM PIVOT

61211-02B40

$26.32

8

SPACER, RR SWGARM PIVOT

61251-02B40

$37.12

9

WASHER

08211-12282

$2.88

10

COVER SWGARM PIVOT This part replaces 61262-03B00.

61262-03B01

$12.62

11

WASHER

08322-0112B

$2.85

12

NUT

08319-2112A

$3.52

13

BUFFER, CHAIN TOUCH DEFENSE

61273-02B20

$44.05

14

BOLT

01547-0616A

$2.09

15

WASHER

09169-06057

$3.01

16

PLATE, GUIDE CHAIN OUTER

61342-02B40

$38.30

17

GUIDE, CHAIN

61343-02B40

$47.05

18

DEFENSE, CHAIN GUIDE

61348-02B20

$20.77

19

BOLT (6X30) | UPPER

09103-06251

$2.19

20

BOLT (6X40) | LOWER

09103-06241

$3.45

21

BOLT | REAR

01547-0616A

$2.09

22

WASHER, CHAIN ADJUSTER

61445-03B00

$39.88

23

NUT

09159-08034

$1.66

24

BOLT (8X43)

09100-08301

$4.00
