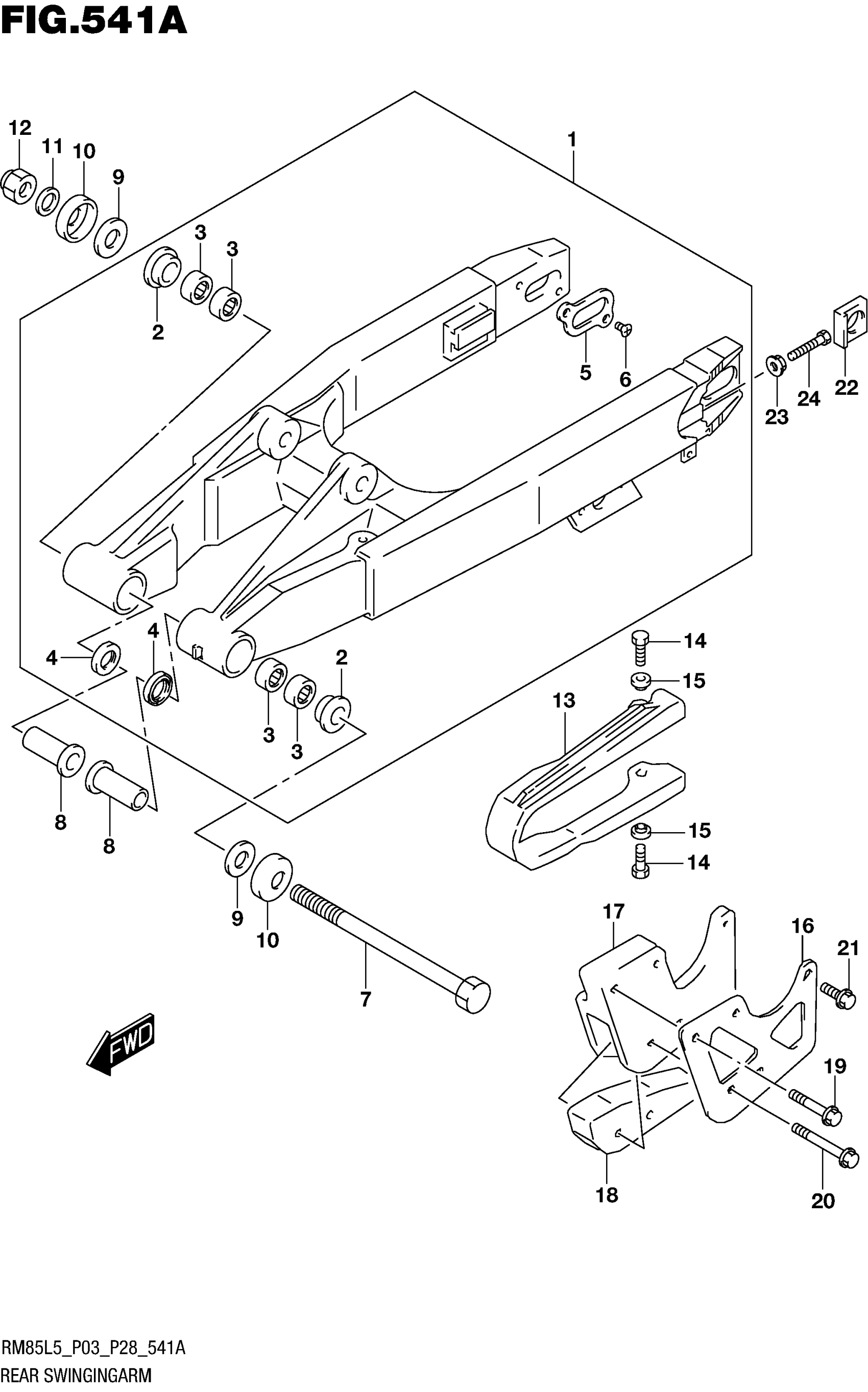

Suzuki RM85L5 (2015) REAR SWINGINGARM (RM85L5 P03) Diagram

#

Description
Price

1

SWINGINGARM ASSY,REAR This part replaces 61000-03BD0.

61000-03BD1

$929.02

2

BUSHING

61261-02B00

$22.22

3

.BEARING This part replaces 09263-17039.

09263-17058

$16.23

4

.SEAL,OIL (17X24X3) This part replaces 09285-17001.

09285-17007

$3.76

5

PLATE, SWGARM

61128-03BD0

$19.43

6

SCREW

09126-05009

$2.28

7

SHAFT, RR SWGARM PIVOT

61211-02B40

$23.32

8

SPACER, RR SWGARM PIVOT

61251-02B40

$32.88

9

WASHER

08211-12282

$2.65

10

COVER SWGARM PIVOT This part replaces 61262-03B00.

61262-03B01

$11.18

11

WASHER

08322-0112B

$2.62

12

NUT

08319-2112A

$3.76

13

BUFFER, CHAIN TOUCH DEFENSE

61273-02B20

$40.15

14

BOLT

01547-0616A

$2.03

15

WASHER

09169-06057

$3.18

16

PLATE, GUIDE CHAIN OUTER

61342-02B40

$33.93

17

GUIDE, CHAIN

61343-02B40

$41.68

18

DEFENSE, CHAIN GUIDE

61348-02B20

$18.40

19

BOLT (6X30) | UPPER

09103-06251

$2.35

20

BOLT (6X40) | LOWER

09103-06241

$3.08

21

BOLT | REAR

01547-0616A

$2.03

22

WASHER, CHAIN ADJUSTER

61445-03B00

$35.35

23

NUT

09159-08034

$1.62

24

BOLT (8X43)

09100-08301

$3.58
