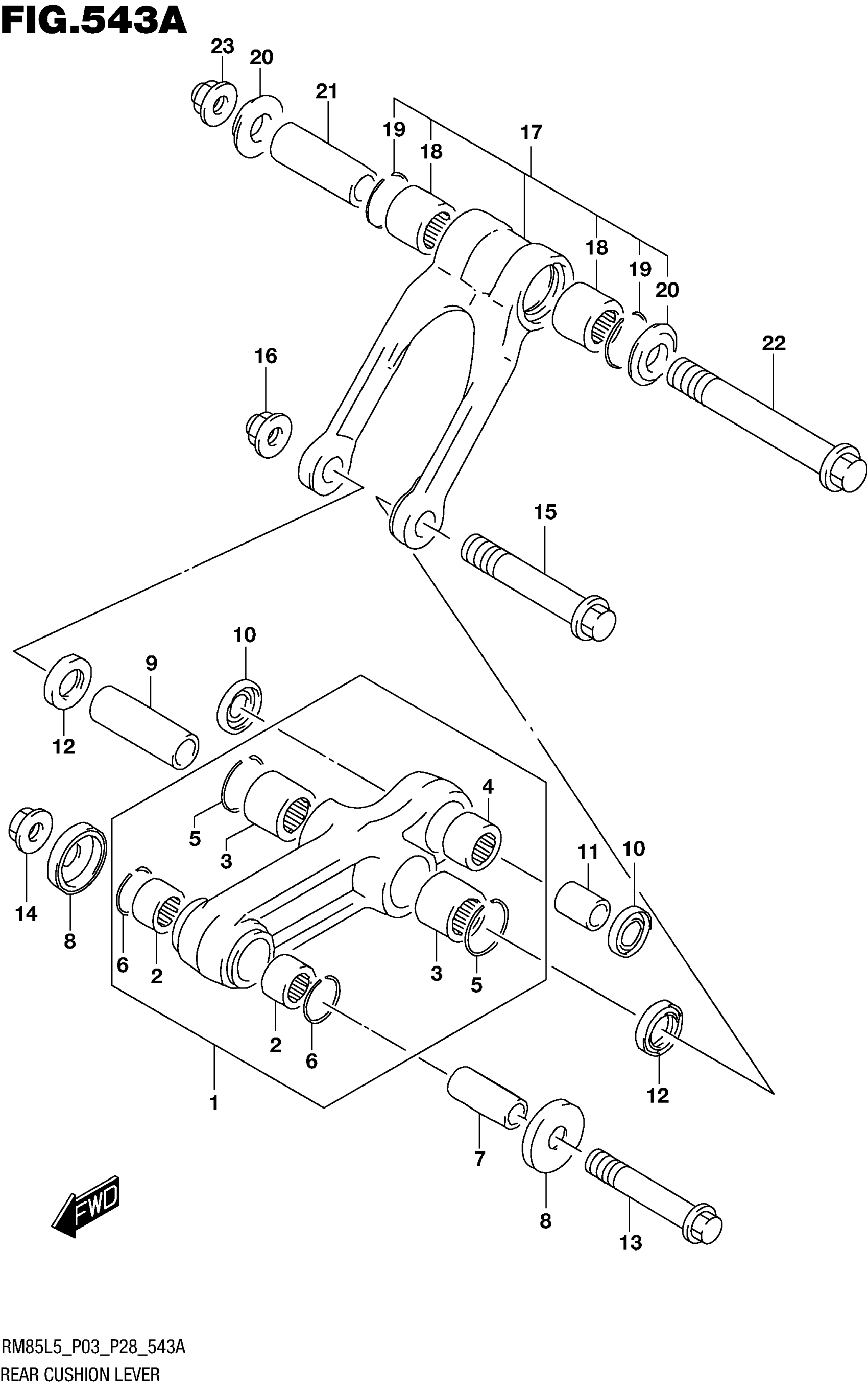

Suzuki RM85L5 (2015) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION

62600-03890

Unavailable

2

BEARING (14X20X12)

09263-14027

$13.52

3

.BEARING This part replaces 09263-17039.

09263-17058

$16.23

4

BEARING (20X26X12)

09263-20083

$24.56

5

RING, BEARING STOPPER LEVER

62657-34A01

$1.99

6

CIRCLIP

09381-20004

$1.65

7

SPACER, RR CUSHION LEVER FR

62317-02B40

$18.02

8

OIL SEAL This part replaces 62162-03B00.

62162-03B01

$9.37

9

SPACER, RR CUSHION LEVER CTR

62626-02B40

$20.45

10

OIL SEAL (20X26X4.5)

09284-20001

$4.71

11

SPACER, RR CUSHION LEVER RR

62684-36E00

$16.57

12

.SEAL,OIL (17X24X3) This part replaces 09285-17001.

09285-17007

$3.76

13

BOLT, RR CUSHION LEVER FRONT

62658-02B40

$9.17

14

NUT

09159-10115

$3.55

15

BOLT, RR CUSHION LEVER CENTER

62621-02B40

$18.02

16

NUT

08319-3112A

$3.76

17

ROD SET, CUSHION LEVER

62600-03880

Unavailable

18

.BEARING This part replaces 09263-17039.

09263-17058

$16.23

19

RING, BEARING STOPPER LEVER

62657-34A01

$1.99

20

SPACER, RR CUSHION ROD SIDE

62647-02B40

$8.18

21

SPACER, RR CUSHION ROD

62646-02B40

$20.45

22

BOLT, RR CUSHION ROD

62622-02B40

$18.02

23

NUT

08319-3112A

$3.76
