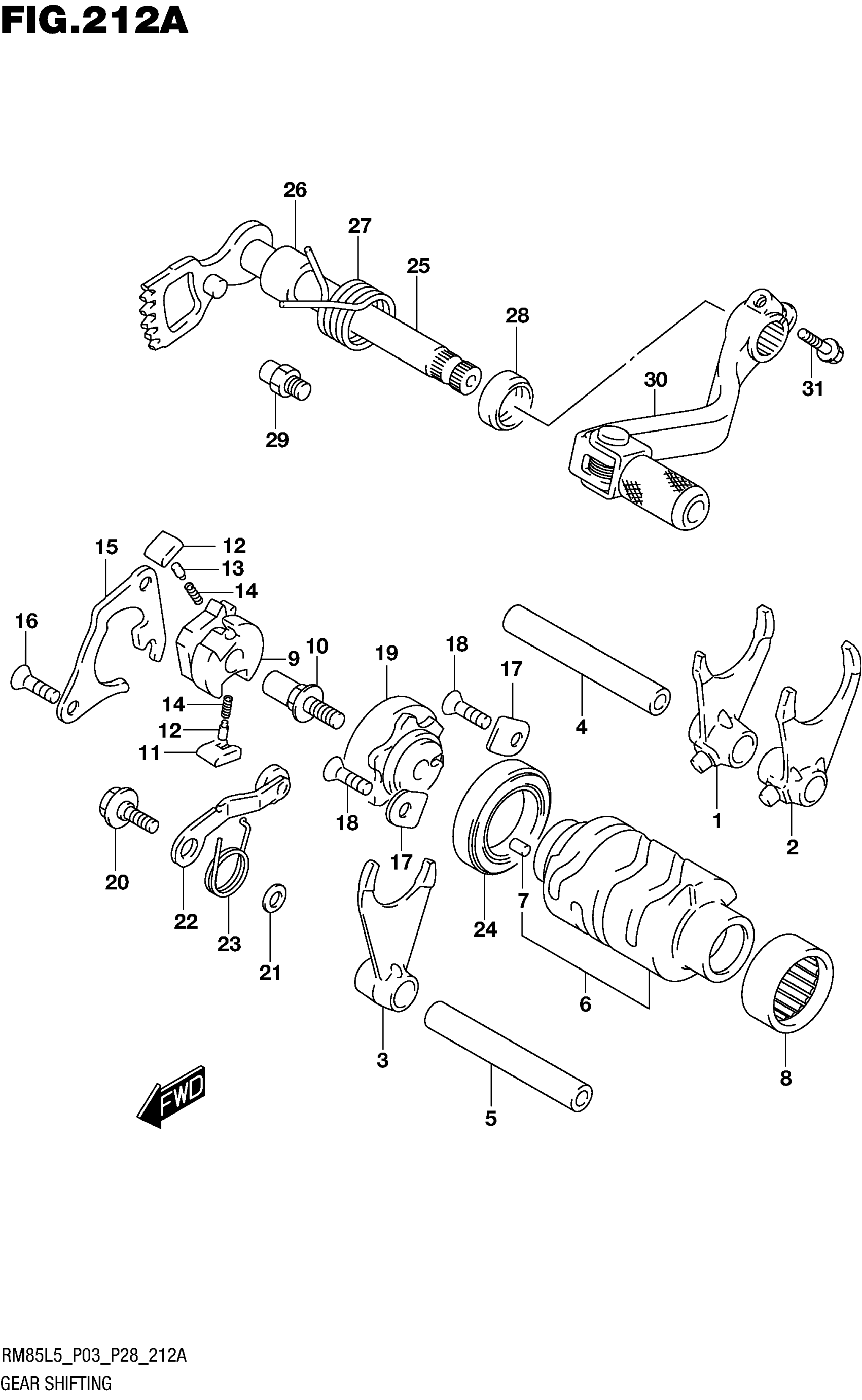

Suzuki RM85L5 (2015) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFT NO.1

25211-02B41

$63.24

2

FORK, GEAR SHIFT NO.2

25221-02B41

$53.75

3

FORK, NO.3

25231-02B40

$58.92

4

SHAFT, GEAR SHIFT FORK NO.1

25411-02B41

Unavailable

5

SHAFT, GEAR SHIFT FORK NO.2

25421-27C01

$18.43

6

CAM, GEAR SHIFT

25310-03B10

$198.45

7

PIN (4X13.8)

04221-04089

$1.49

8

BEARING (25X32X12)

09263-25018

$21.39

9

GEAR, GEAR SHIFT CAM DRIVEN

25322-31310

$26.93

10

PIN, SHIFT CAM DRIVEN GEAR

25313-27C02

$13.05

11

PAWL, GEAR SHIFT NO.1

25323-34201

$7.22

12

PAWL, GEAR SHIFT NO.2

25324-34201

$7.22

13

PIN

09209-05023

$2.61

14

SPRING

09440-04003

$1.54

15

LIFTER, GEAR SHIFT POLE

25331-27C00

$24.20

16

SCREW (6X12)

09126-06011

$2.03

17

RETAINER

24741-20A00

$2.81

18

SCREW (6X12)

09126-06011

$2.03

19

PLATE, SHIFT CAM STOPPER

25381-37F30

$62.07

20

BOLT (6X14.3)

09111-06041

$2.61

21

WASHER

08211-06121

$1.54

22

STOPPER, SHIFT CAM

25350-27C30

$15.98

23

SPRING, SHIFT CAM STOPPER

25355-03B00

$5.10

24

BEARING

08140-69050

$35.66

25

SHAFT, GEAR SHIFT

25510-28C30

$96.22

26

SPACER (14X20X17.5)

09180-14016

$3.96

27

SPRING

09444-26013

$3.10

28

SEAL, SHIFT SHAFT (14X22X6) This part replaces 09283-14005.

09283-14006

$6.70

29

STOPPER, GEAR SHIFT ARM

25671-01011

$4.48

30

LEVER ASSY, GEAR SHIFTING

25600-03B10

$108.23

31

BOLT

01547-0620A

$2.03
