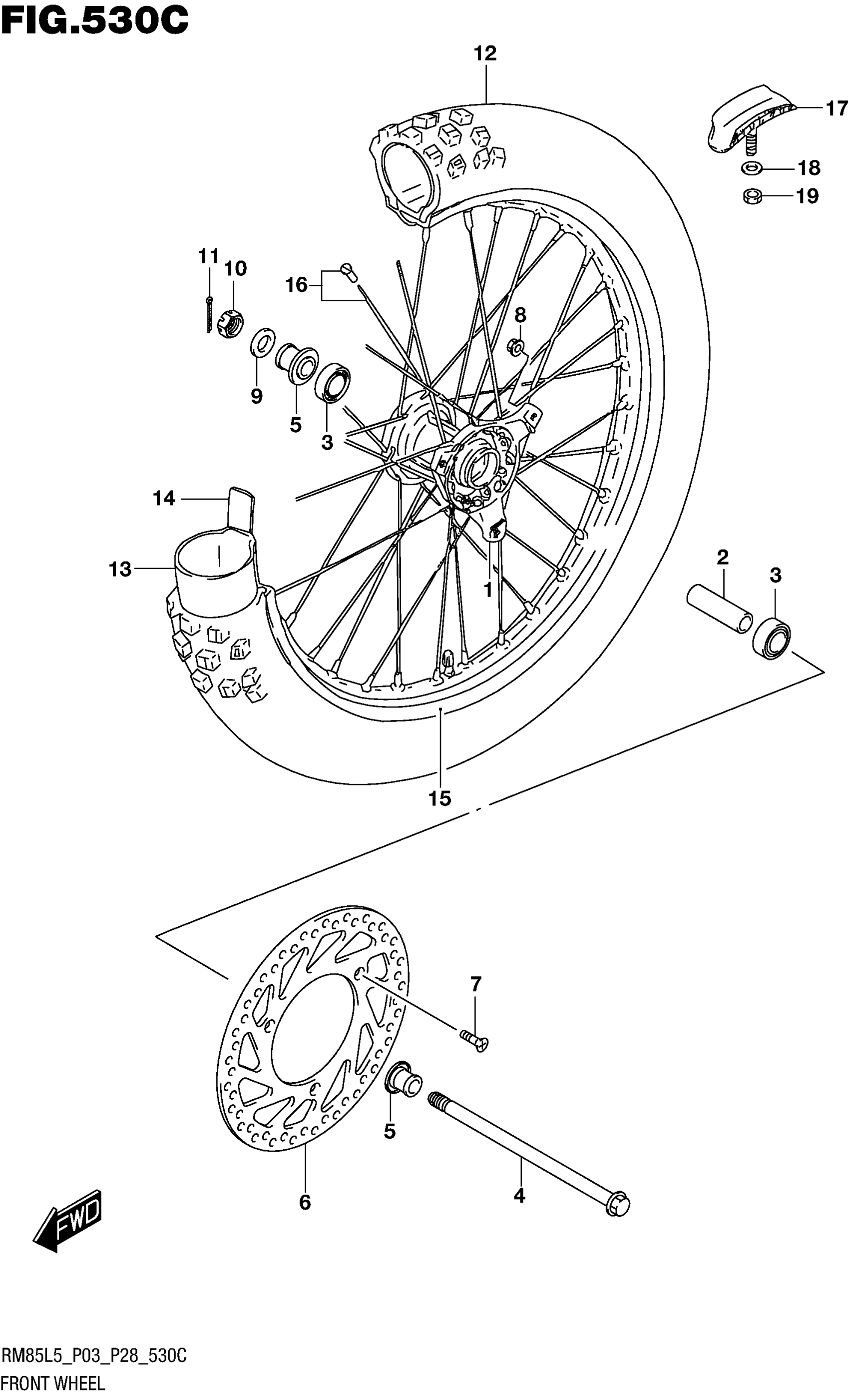

Suzuki RM85L5 (2015) FRONT WHEEL (RM85LL5 P28) Diagram

#

Description
Price

1

HUB, FR WHEEL

54111-02B42

$316.32

2

SPACER, FR HUB BEARING

54731-02B40

$13.67

3

BEARING

08133-62017

$18.47

4

AXLE, FRONT

54711-03B00

$46.90

5

SPACER, FR AXLE

54740-02B40

$15.68

6

DISC, FRONT BRAKE

59221-03B00

$227.45

7

SCREW (6X22)

09126-06009

$2.70

8

NUT

08319-3106A

$2.03

9

WASHER

08211-12204

$4.32

10

NUT

08314-4012B

$3.72

11

COTTER PIN

04111-2020A

$1.49

12

TIRE, FRONT (70/100-19 42M D737F)(DUNLOP)

55110-03B50

Unavailable

13

TUBE ASSY, INNER

55200-03B40

Unavailable

14

PROTECTOR, INNER TUBE

55261-03B30

$6.88

15

RIM, FRONT WHEEL (19X1.40)

55311-03B60

Unavailable

16

SPOKE SET, FRONT WHEEL

55320-03B60

Unavailable

17

STOPPER, BEAD

65270-28600

$54.75

18

WASHER

08322-0108B

$2.34

19

NUT

08310-0008B

$2.70
