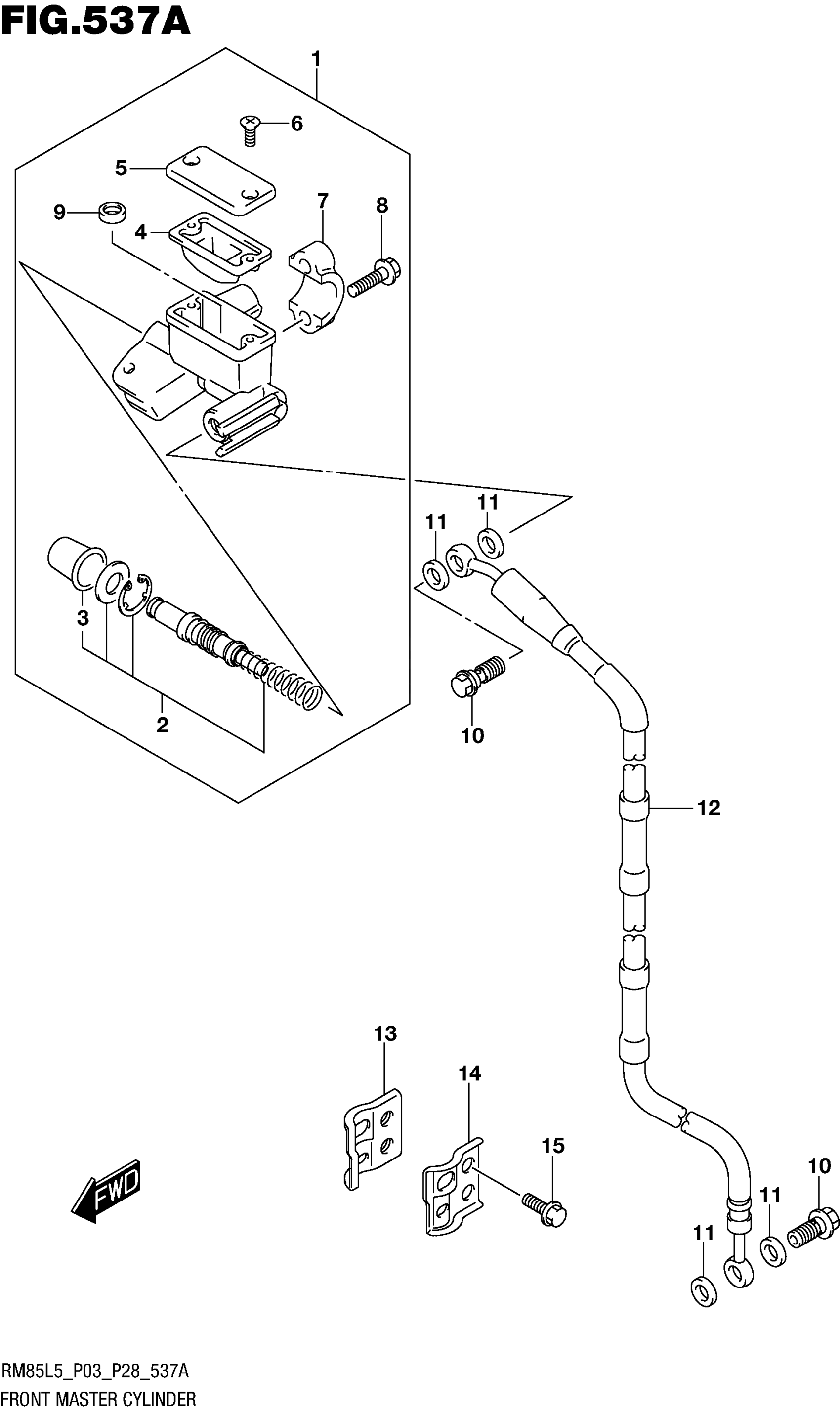

Suzuki RM85L5 (2015) FRONT MASTER CYLINDER (RM85L5 P03) Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER This part replaces 59600-37F00.

59600-37F10

$226.62

2

PISTON & CUP SET

59600-37810

$58.68

3

BOOT

59666-44300

$5.80

4

DIAPHRAGM

59667-14500

$10.12

5

CAP

59669-27C01

$23.32

6

SCREW

69689-49300

$1.91

7

HOLDER

59671-27C00

$17.02

8

BOLT

59675-06F00

$4.73

9

SEPARATOR

59748-36E00

$9.37

10

UNION

09360-10062

$6.43

11

WASHER (10X15X1.5)

09161-10009

$1.84

12

HOSE,FRONT BRAKE This part replaces 59480-03B81.

59480-03B82

$251.58

13

CLAMP, FRONT BRAKE HOSE | INNER

59260-03B00

$12.80

14

CLAMP, FRONT BRAKE HOSE | OUTER

59271-03B00

$10.95

15

BOLT

01547-0616A

$2.03
