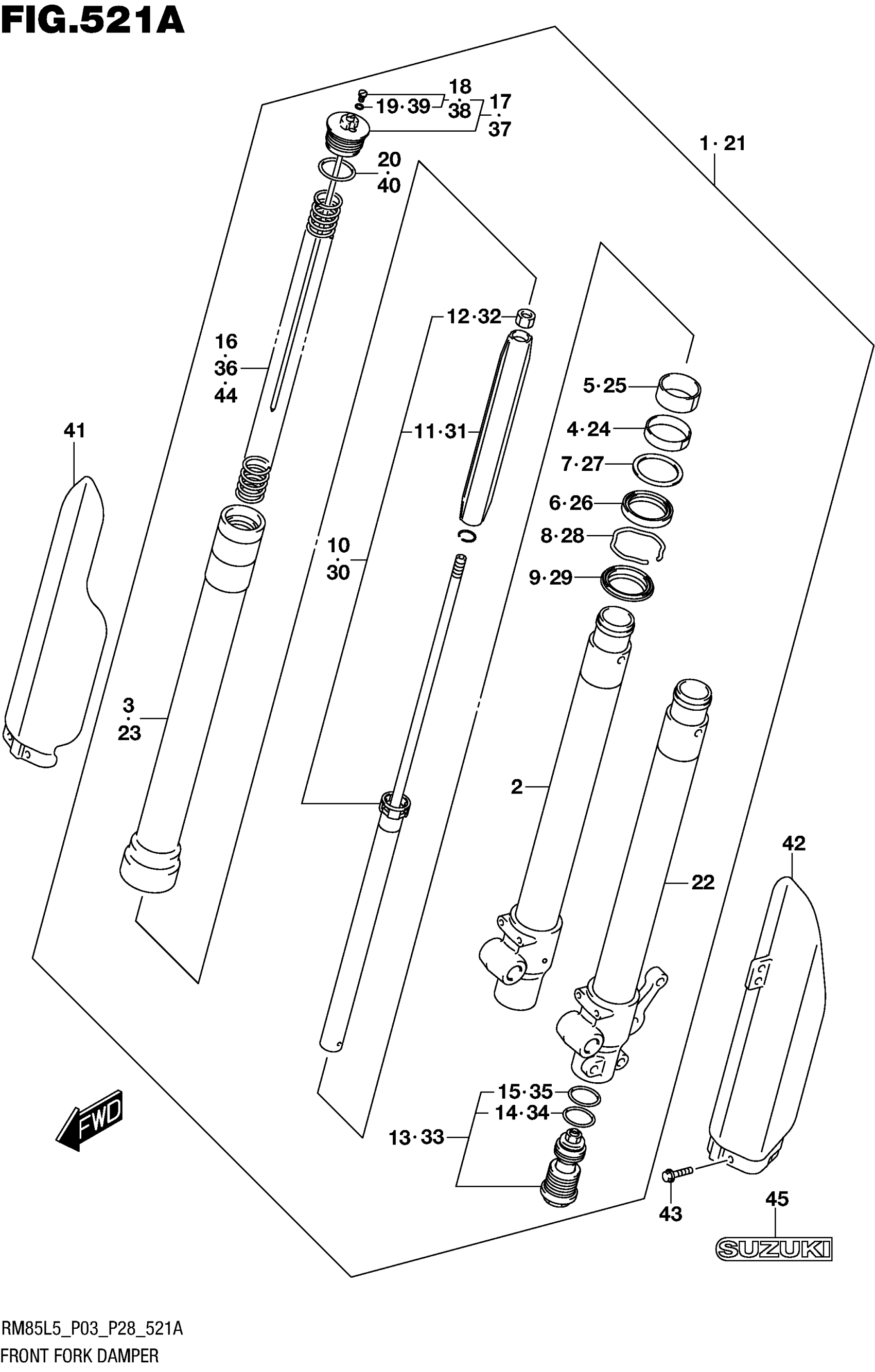

Suzuki RM85L5 (2015) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-03B70

Unavailable

2

TUBE, INNER RH

51110-03B30

Unavailable

3

TUBE, OUTER

51130-03B30

$760.17

4

BUSH, GUIDE

51167-03B30

$20.80

5

BUSH, SLIDE

51121-03B30

$18.75

6

SEAL, OIL

51153-03B30

$18.51

7

SPACER, SEAL This part replaces 51158-03B30.

51168-38A00

$6.72

8

RING, STOPPER

51156-03B30

$6.17

9

SEAL, DUST

51173-03B30

$29.10

10

CYLINDER

51190-03B70

Unavailable

11

GUIDE, SPRING

51172-03B30

$29.33

12

NUT

51129-03B30

Unavailable

13

BOLT, CENTER

51170-03B70

Unavailable

14

O RING

51177-36E20

$4.10

15

O RING

51175-03B30

$6.05

16

SPRING, FRONT (K=0.28)

51171-03B50

Unavailable

17

BOLT, FORK

51351-03B70

$174.33

18

BOLT, PLUG

51357-27C40

$10.45

19

O RING

51117-19C10

$4.10

20

O RING

51117-29EA0

$4.90

21

DAMPER ASSY, FRONT FORK LH

51104-03B70

Unavailable

22

TUBE, INNER LH

51120-03B70

Unavailable

23

TUBE, OUTER

51130-03B30

$760.17

24

BUSH, GUIDE

51167-03B30

$20.80

25

BUSH, SLIDE

51121-03B30

$18.75

26

SEAL, OIL

51153-03B30

$18.51

27

SPACER, SEAL This part replaces 51158-03B30.

51168-38A00

$6.72

28

RING, STOPPER

51156-03B30

$6.17

29

SEAL, DUST

51173-03B30

$29.10

30

CYLINDER

51190-03B70

Unavailable

31

GUIDE, SPRING

51172-03B30

$29.33

32

NUT

51129-03B30

Unavailable

33

BOLT, CENTER

51170-03B70

Unavailable

34

O RING

51177-36E20

$4.10

35

O RING

51175-03B30

$6.05

36

SPRING, FRONT (K=0.28)

51171-03B50

Unavailable

37

BOLT, FORK

51351-03B70

$174.33

38

BOLT, PLUG

51357-27C40

$10.45

39

O RING

51117-19C10

$4.10

40

O RING

51117-29EA0

$4.90

41

PROTECTOR, FRONT FORK, RH

51501-03B10

Unavailable

42

PROTECTOR, FRONT FORK, LH

51511-03B20

Unavailable

43

BOLT (6X10)

01547-0610A

$2.45

44

SPRING, FRONT (SOFT K=0.26) | OPT

51171-03B30

Unavailable

44

SPRING, FRONT (HARD K=0.30) | OPT

51171-03B60

Unavailable

45

EMBLEM "SUZUKI"

68111-03410-DSV

Unavailable
