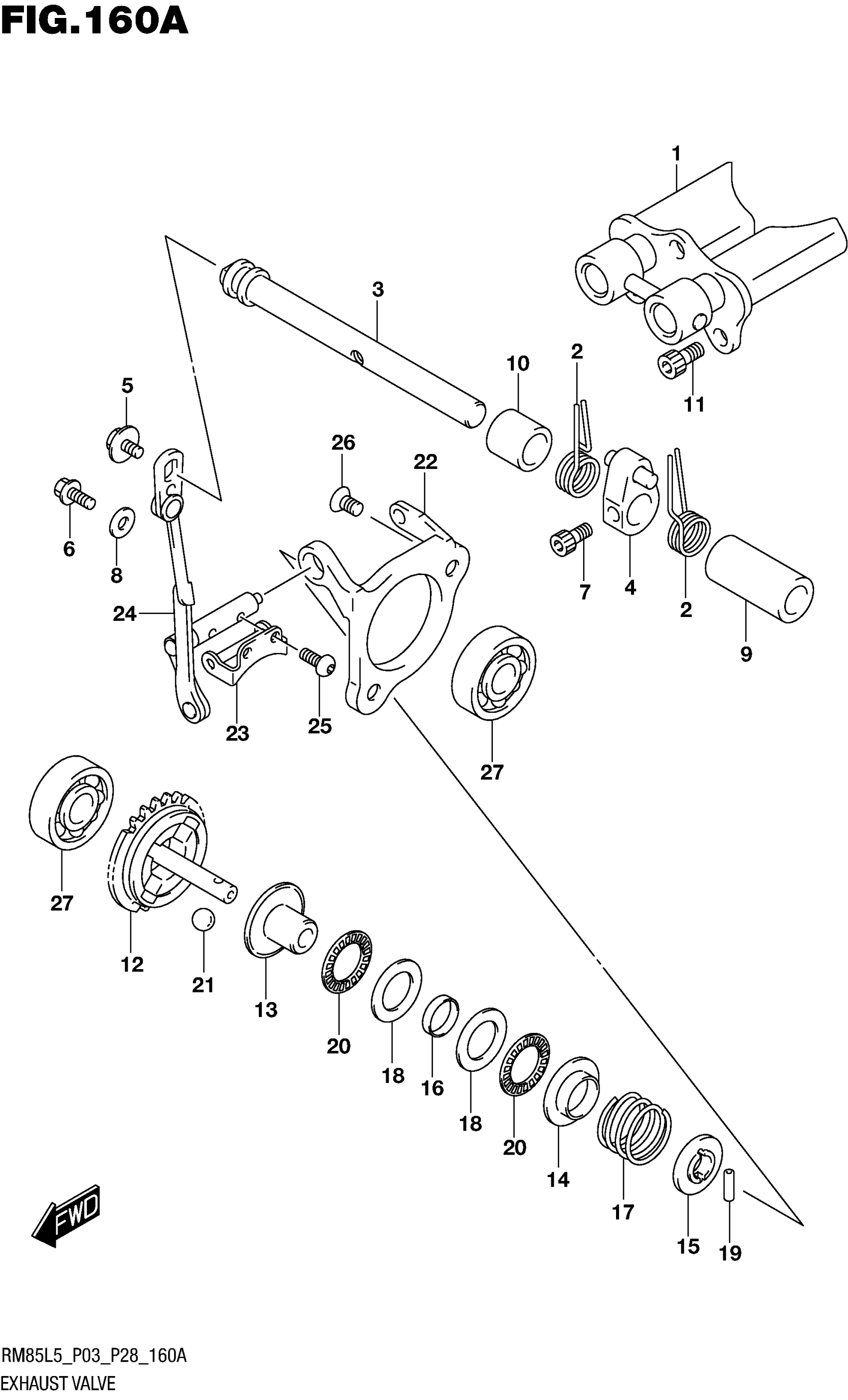

Suzuki RM85L5 (2015) EXHAUST VALVE Diagram

#

Description
Price

1

VALVE ASSY, EXHAUST

11250-03B10

$644.27

2

SPRING, EXHAUST VALVE SHAFT ARM

11257-36F11

$8.55

3

SHAFT, EXHAUST VALVE

11259-03B10

$78.32

4

ARM, EXHAUST VALVE SHAFT

11270-36F10

$111.74

5

BOLT (5X10)

09103-05022

$2.27

6

BOLT (6X10)

01547-0610A

$1.47

7

BOLT (4X8)

09106-04003

$1.94

8

WASHER (6.5X14X2.3)

09160-06127

$2.50

9

SPACER (8.4X12X13)

09180-08138

$2.87

10

SPACER (8.5X12X11)

09180-08189

$2.68

11

BOLT

07130-0512A

$2.19

12

GOVERNOR, DRIVE

12670-03810

$126.22

13

GOVERNOR, DRIVEN

12672-36F10

$43.50

14

STOPPER, GOVERNOR SPRING NO.1

12674-36F10

$31.90

15

STOPPER, GOVERNOR SPRING NO.2

12675-36F11

$23.73

16

SPACER, GOVERNOR

12676-36F10

$19.97

17

SPRING, GOVERNOR

12677-03B00

$5.75

18

SHIM (15X28X1)

09181-15223

$2.55

19

ROLLER

09261-03017

$2.67

20

BEARING (15X28X2)

09263-15003

$7.49

21

BALL

06111-12004

$1.95

22

BASE, ACTUATOR

12681-03B00

$203.48

23

ARM, ACTUATOR

12682-36F21

$10.78

24

ACTUATOR, EXHAUST

12689-03B10

$67.93

25

BOLT (4X8)

09106-04004

$2.40

26

SCREW (5X10)

09120-05003

$1.76

27

BEARING (8X22X7)

09262-08005

$11.44
