Partiron

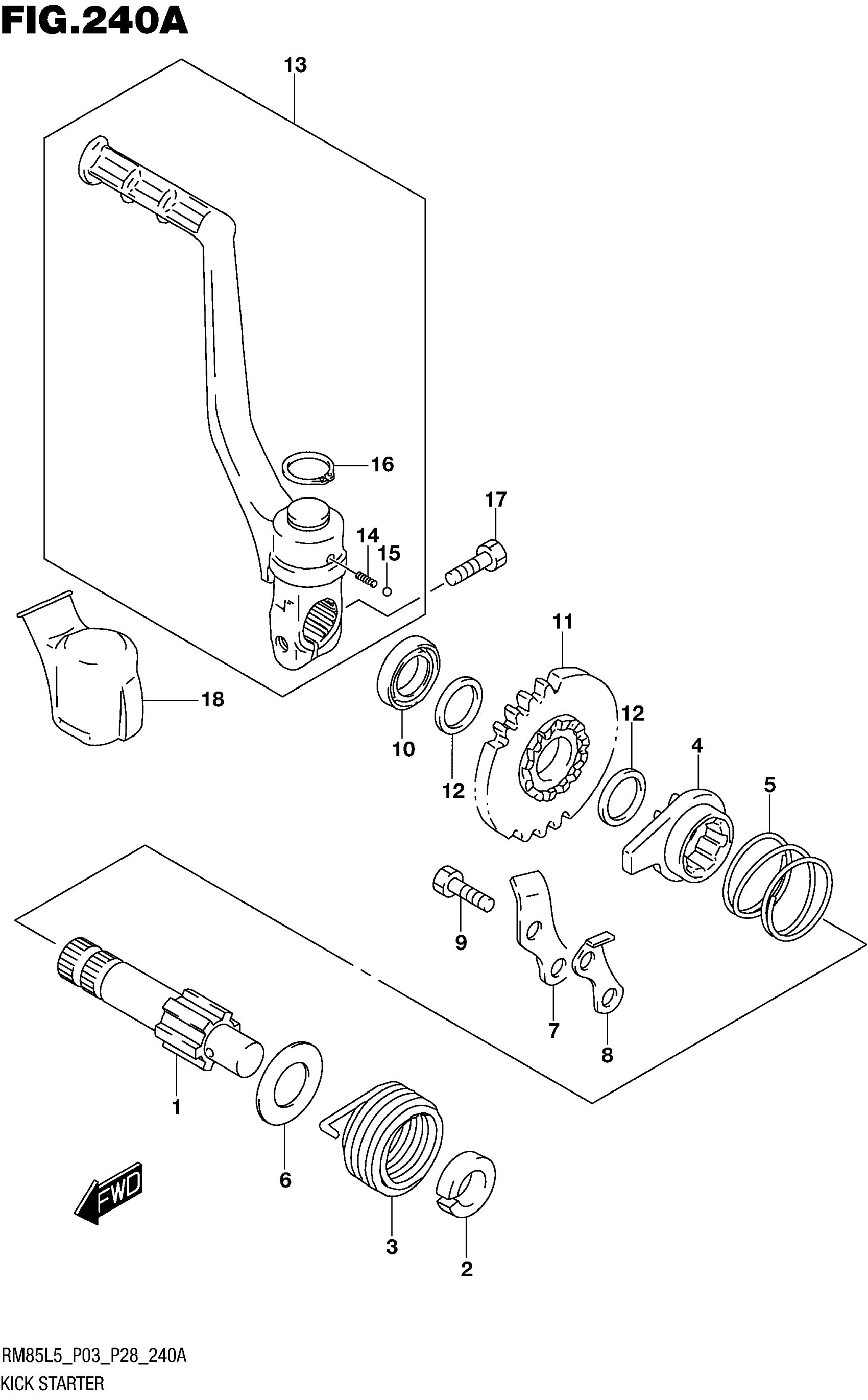

Suzuki RM85L5 (2015) KICK STARTER Diagram

#

Description
Price

1

SHAFT, KICK STARTER

26211-02B04

$109.53

2

GUIDE, SPRING

26221-02B00

$3.67

3

SPRING

09448-35007

$11.72

4

STARTER, KICK

26231-02B02

$40.83

5

SPRING

09440-31002

$2.01

6

PLATE

08211-12301

$2.06

7

GUIDE, KICK STARTER

26232-40200

$7.98

8

STOPPER, KICK STARTER

26233-40201

$6.23

9

BOLT

01500-0612A

$1.80

10

OIL SEAL (14X24X6) This part replaces 09285-14001.

09285-14002

$15.23

11

GEAR, KICK STARTER DRIVE

26241-02B41

$94.70

12

SHIM (14X20X1)

09181-14139

$2.66

13

LEVER ASSY, KICK STARTER

26300-03B00

$109.42

14

SPRING

09440-05003

$1.48

15

BALL

06111-07004

$1.22

16

CIRCLIP

08331-3115A

$1.97

17

BOLT

01500-06207

$1.99

18

COVER,JOINT This part replaces 26341-20401.

26341-20402

$9.60
