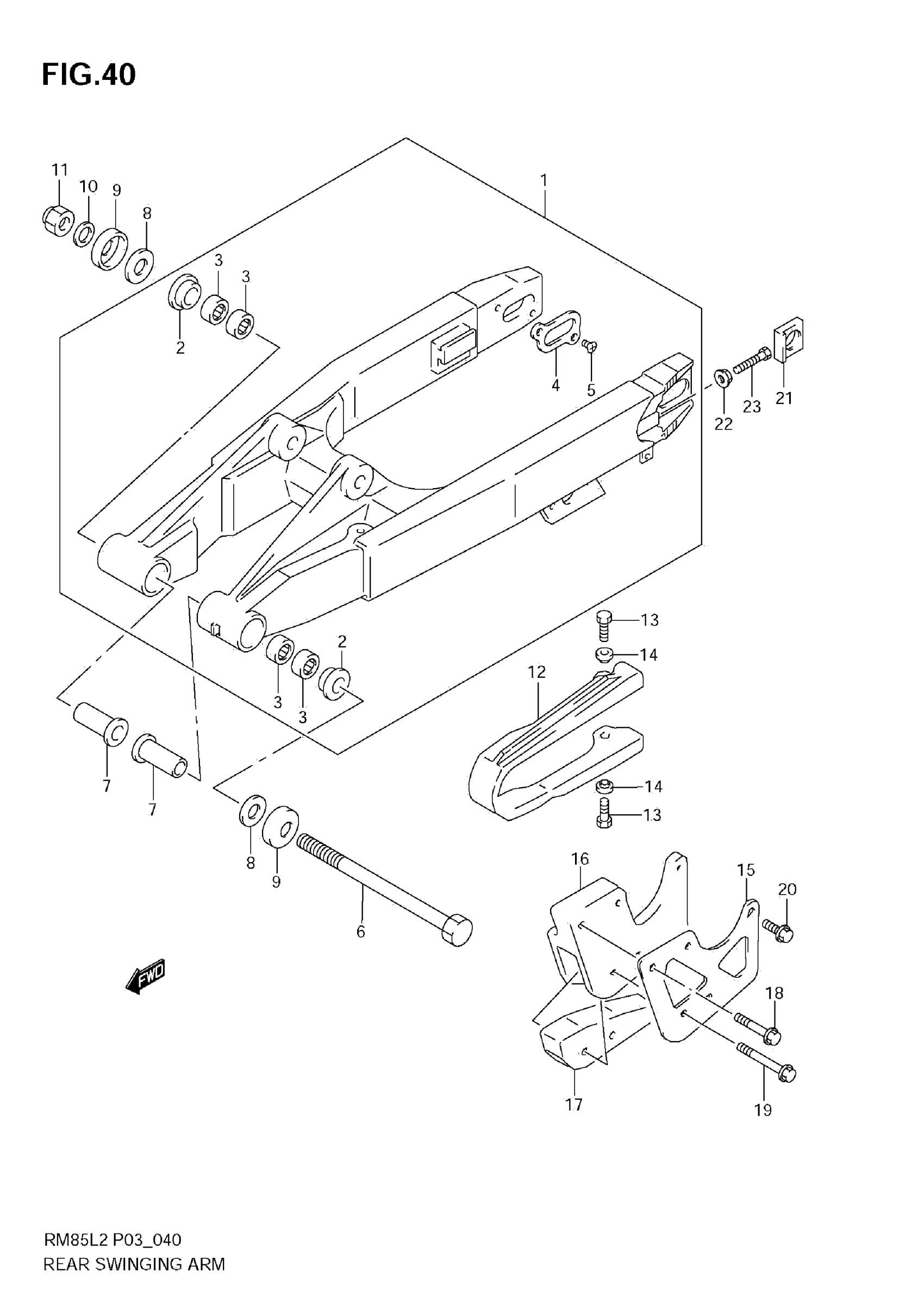

Suzuki RM85L2 (2012) REAR SWINGING ARM (RM85L) Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR This part replaces 61000-03BC0.

61000-03BE0

$1,087.00

2

BUSHING

61261-02B00

$22.22

3

.BEARING This part replaces 09263-17039.

09263-17058

$16.23

4

.SEAL,OIL (17X24X3) This part replaces 09285-17001.

09285-17007

$3.76

5

SCREW

02122-0410B

$2.45

6

SHAFT, RR SWGARM PIVOT

61211-02B40

$23.32

7

SPACER, RR SWGARM PIVOT

61251-02B40

$32.88

8

WASHER

08211-12282

$2.65

9

COVER SWGARM PIVOT This part replaces 61262-03B00.

61262-03B01

$11.18

10

WASHER

08322-0112B

$2.62

11

NUT

08319-2112A

$3.76

12

BUFFER, CHAIN TOUCH DEFENSE

61273-02B20

$40.15

13

BOLT (6X16)

09103-06234

$2.35

14

WASHER

09169-06057

$3.18

15

PLATE, GUIDE CHAIN OUTER

61342-02B40

$33.93

16

GUIDE, CHAIN

61343-02B40

$41.68

17

DEFENSE, CHAIN GUIDE

61348-02B20

$18.40

18

BOLT (6X30) | UPPER

09103-06251

$2.35

19

BOLT (6X40) | LOWER

09103-06241

$3.08

20

BOLT (6X16) | REAR

09103-06234

$2.35

21

WASHER, CHAIN ADJUSTER

61445-03B00

$35.35

22

NUT

09159-08034

$1.62

23

BOLT (8X43)

09100-08301

$3.58
