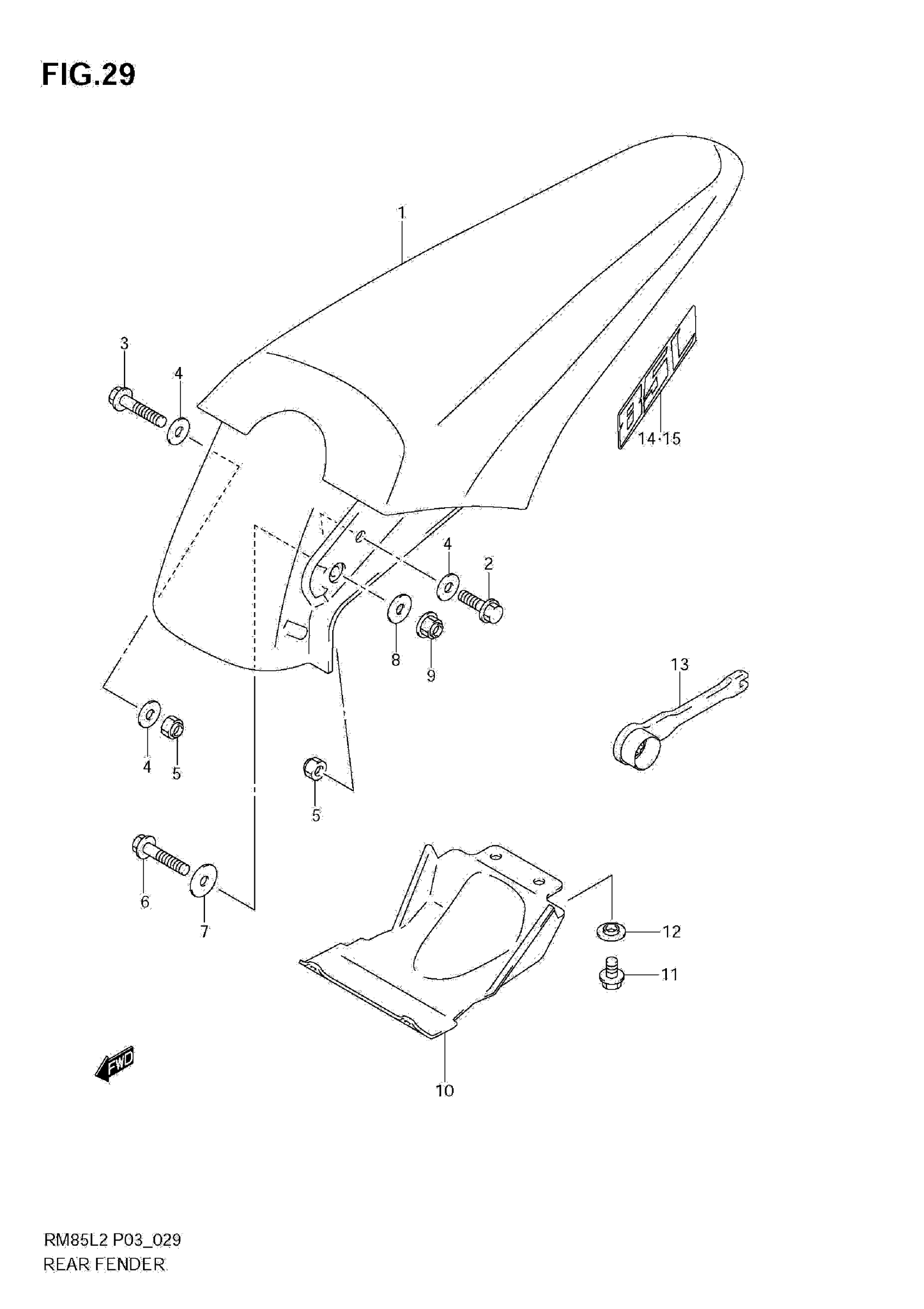

Suzuki RM85L2 (2012) REAR FENDER (RM85L) Diagram

#

Description
Price

1

FENDER, REAR (YELLOW)

63111-03B60-YU1

$51.57

2

BOLT | LH

01547-06207

$2.01

3

BOLT (6X30) | RH

09103-06251

$2.35

4

WASHER (6.5X20X1.2)

09160-06077

$1.91

5

NUT

08319-2106A

$1.91

6

BOLT (6X30)

09103-06251

$2.35

7

WASHER (6.5X26X2.3)

09160-06135

$2.17

8

WASHER (6.5X18X1.6)

09160-06084

$1.78

9

NUT

08319-3106B

$2.45

10

MUDGUARD, REAR FENDER FRONT

63351-03B00

$34.87

11

BOLT

01547-0610B

$2.45

12

WASHER

09169-06010

$2.60

13

BOX SPANNER (21 & 5.8)

09816-00182

Unavailable

14

EMBLEM, RH

68175-03B60-GY8

Unavailable

15

EMBLEM, LH

68176-03B60-GY8

Unavailable
