Description

Price

1

RADIATOR, WATER

17710-03B00

$632.40

2

CAP, RADIATOR This part replaces 17730-12C20.

17730-08J00

$42.50

3

HOSE (5X8X2000) | L:1000->480 This part replaces 09351-50803-00A.

09351-50803-00B

$9.10

4

CUSHION, RADIATOR SPRT

17787-19A00

$3.56

5

BOLT (6X25)

09116-06186

$2.61

6

SPACER (6.5X10.5X14.1)

09180-06243

$5.46

7

HOSE, RADIATOR INLET

17851-03B00

$23.07

8

HOSE, RADIATOR OUTLET

17852-03B00

$27.33

9

CLAMP

09402-28513

$6.88

10

COVER, RADIATOR (YELLOW)

17762-37F10-YU1

$51.57

11

BOLT (6X12)

09103-06233

$2.11

12

WASHER (6.3X16X1)

09169-06053

$1.49

13

LOUVER, RADIATOR

17831-36E00

$19.07

14

TAPE, RADIATOR COVER LH

68670-03BK0-HBP

Unavailable

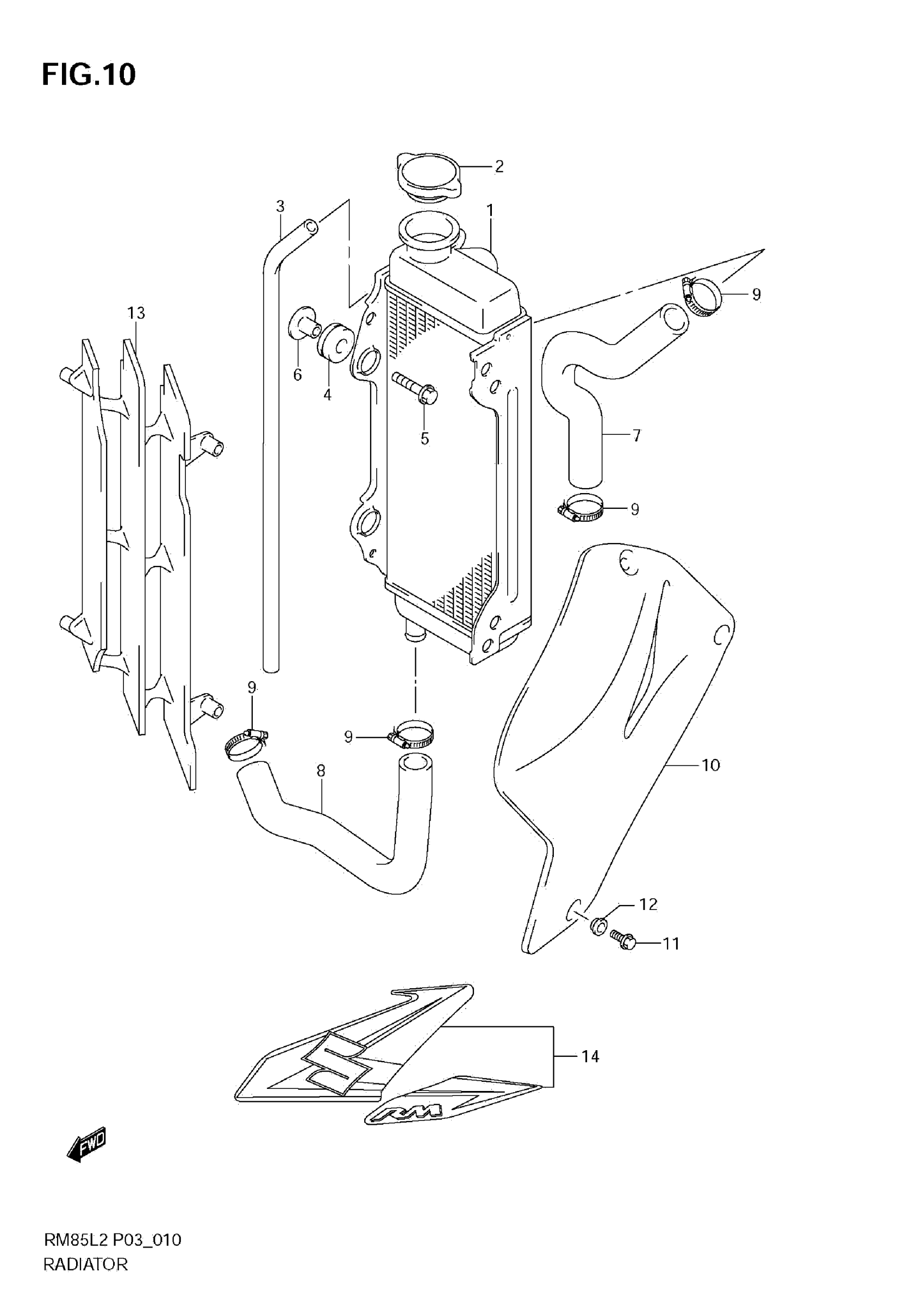

Suzuki RM85L2 (2012) RADIATOR Diagram
