2012 Suzuki RM85L2 Front Master Cylinder Diagram

← All diagrams

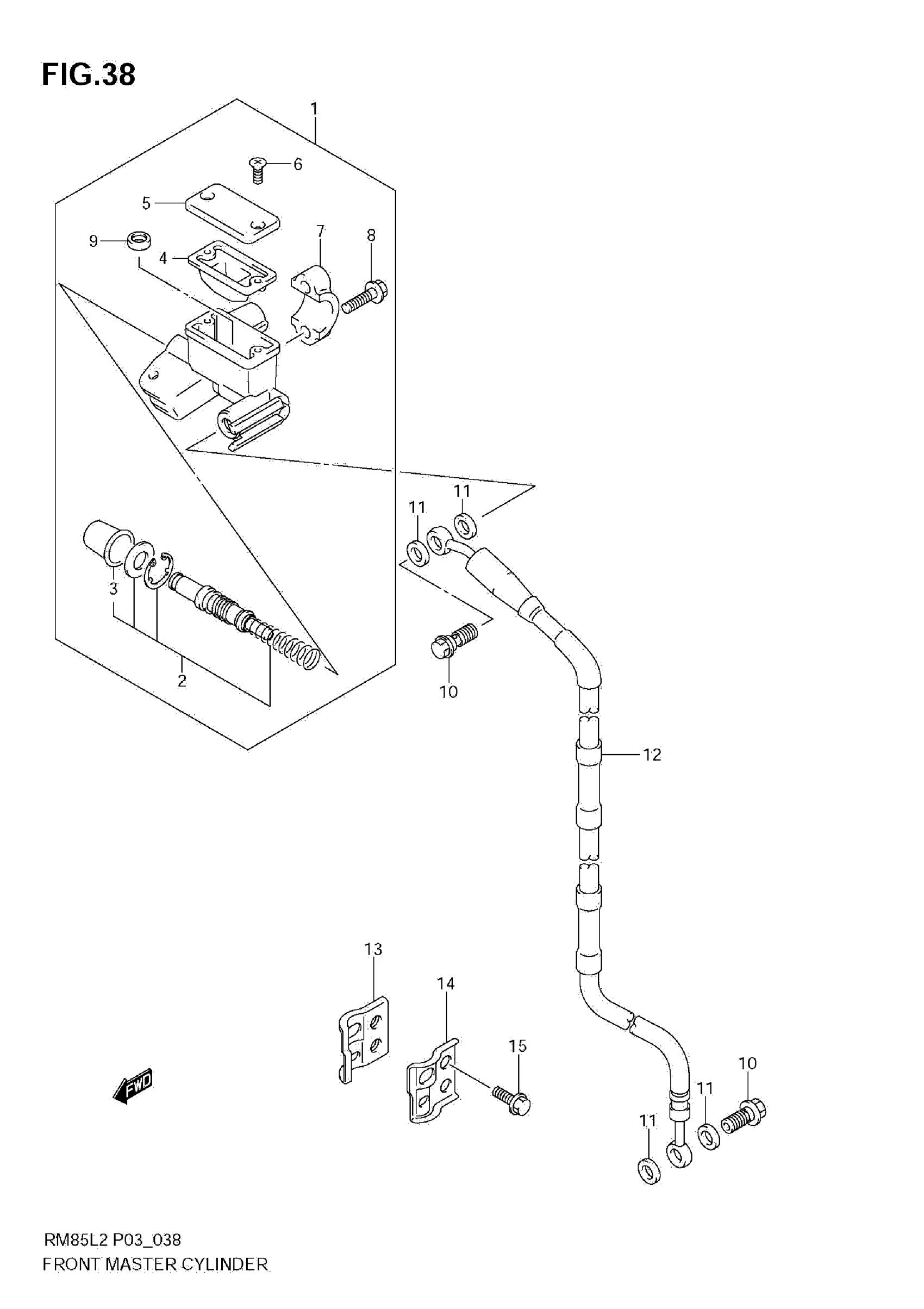

Find the part on the Front Master Cylinder diagram for your 2012 Suzuki RM85L2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki RM85L2 Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER ASSY, FRONT MASTER This part replaces 59600-37F00.

59600-37F10

1
Out of stock

2

PISTON & CUP SET

59600-37810

1
Out of stock

3

BOOT

59666-44300

1
Out of stock

4

DIAPHRAGM

59667-14500

1
Out of stock

5

CAP

59669-27C01

1
Out of stock

6

SCREW

69689-49300

2
Out of stock

7

HOLDER

59671-27C00

1
Out of stock

8

BOLT

59675-06F00

2

$5.33

In stock

9

SEPARATOR

59748-36E00

1

$10.58

In stock

10

UNION

09360-10062

2
Out of stock

11

WASHER (10X15X1.5)

09161-10009

4
Out of stock

12

HOSE COMP,FRONT This part replaces 59480-03B91.

59480-03B92

1
Out of stock

13

CLAMP, FRONT BRAKE HOSE | INNER

59260-03B00

1
Out of stock

14

CLAMP, FRONT BRAKE HOSE | OUTER

59271-03B00

1
Out of stock

15

BOLT (6X16)

09103-06234

2
Out of stock
