2012 Suzuki RM85L2 Crankcase Cover- Water Pump Diagram

← All diagrams

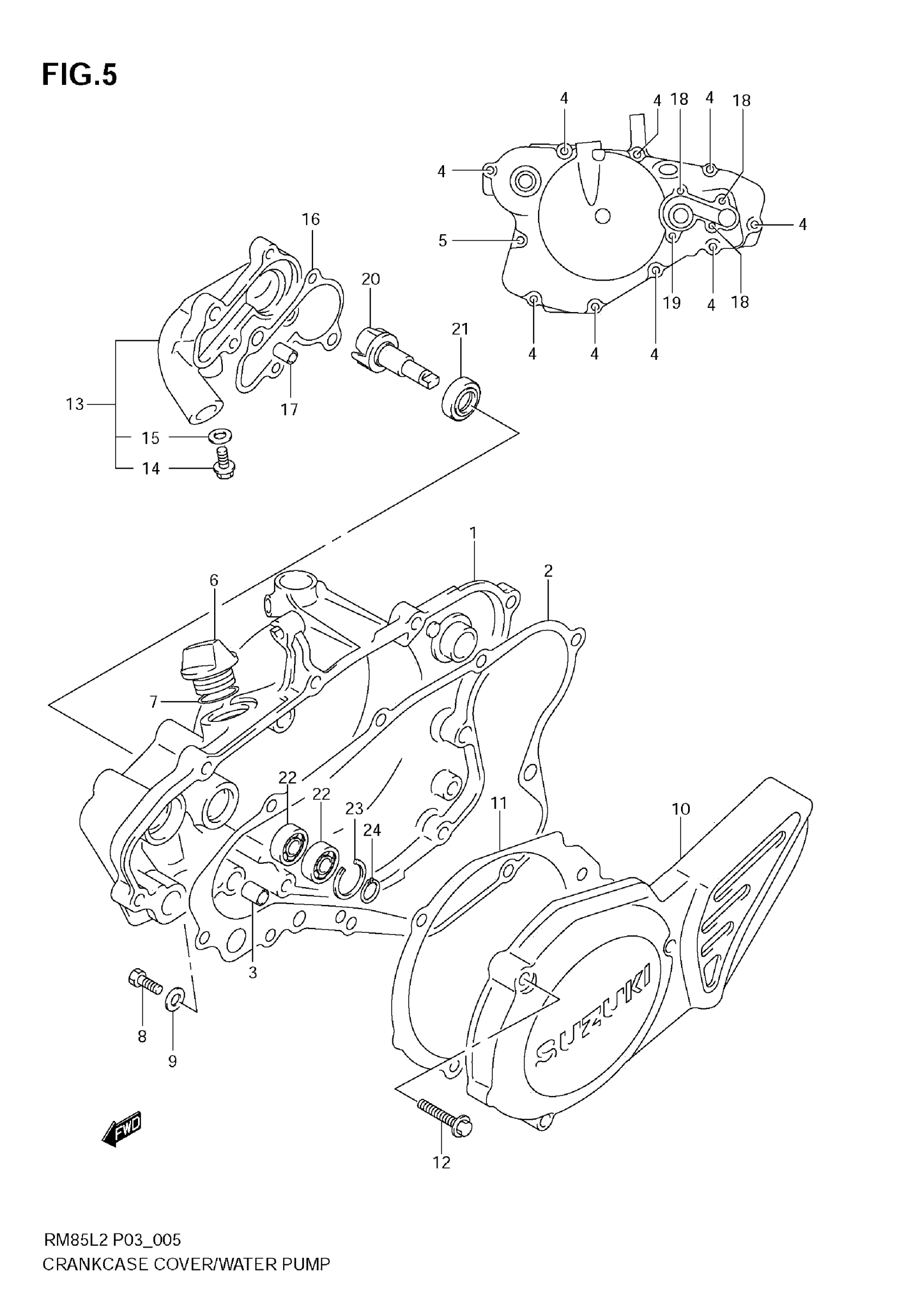

Find the part on the Crankcase Cover- Water Pump diagram for your 2012 Suzuki RM85L2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki RM85L2 Crankcase Cover- Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH

11341-03B00

1
Out of stock

2

GASKET, CLUTCH COVER

11482-27C02

1
Out of stock

3

PIN

04211-09129

2
Out of stock

4

BOLT (6X25)

09103-06250

9
Out of stock

5

BOLT (6X35)

09103-06252

1
Out of stock

6

PLUG,ENGINE OIL FILLER

11971-25D00

1
Out of stock

7

O RING (D:3.1,ID:16.8)

09280-17003

1
Out of stock

8

.BOLT

07120-0610A

1
Out of stock

9

GASKET (6.2X11X1.2)

09168-06004

1
Out of stock

10

COVER, MAGNETO

11351-03B00

1
Out of stock

11

GASKET, MAGNETO COVER

11483-03B00

1
Out of stock

12

BOLT (6X25)

09103-06250

3
Out of stock

13

CASE ASSY, WATER PUMP

17410-03B00

1
Out of stock

14

BOLT, DRAIN

17415-43D00

1
Out of stock

15

GASKET

17413-28C10

1
Out of stock

16

GASKET, WATER PUMP CASE

17431-02B42

1
Out of stock

17

PIN

04211-09129

2
Out of stock

18

BOLT

01547-06207

2
Out of stock

19

BOLT

01547-0630A

2
Out of stock

20

IMPELLER, WATER PUMP

17491-02B41

1
Out of stock

21

OIL SEAL, WATER PUMP

17461-03B00

1
Out of stock

22

BEARING

08113-06980

2
Out of stock

23

CIRCLIP

09381-19003

1
Out of stock

24

CIRCLIP This part replaces 08331-3108A.

08331-31089

1
Out of stock
